Santa Cruz Tallboy Carbon CC XX1 2018

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
110mm

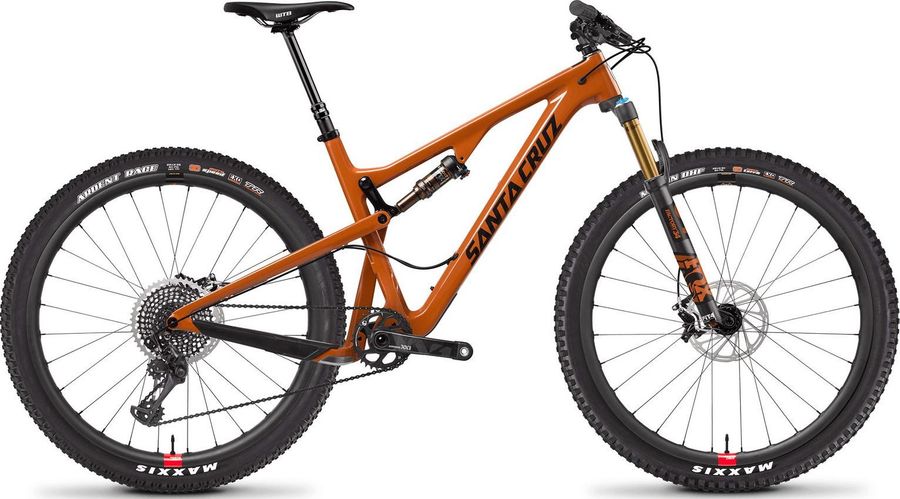

Santa Cruz Tallboy Carbon CC XX1 2018

About the Santa Cruz Tallboy Carbon CC XX1 2018

The Santa Cruz Tallboy Carbon CC XX1 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Tallboy Carbon CC XX1 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale lock-on
Components
Steam
Easton Haven, 55mm
Saddle
WTB Silverado Race
Headset
Cane Creek 110, integrated
Seatpost
RockShox Reverb Stealth
Handlebar
Santa Cruz XC, 31.8mm diameter, 750mm wide, flat
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle Carbon
Shifter
SRAM XX1 Eagle, 12 speed
Bottom bracket
SRAM GXP Team
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Standard: Race Face ARC 24, Upgrade: Santa Cruz Reserve 27 Carbon
Tires
Front: Maxxis Minion DHF, 2.3", 3c EXO TR, Rear: Maxxis Ardent Race, 2.35" EXO TR
Spokes
DT Competition with Sapim secure lock silver nipples
Rear hub
Front: Industry Nine, 15mm x 110mm, 28 hole, Rear: Industry Nine, 12mm x 148mm, 28 hole
Front hub
Front: Industry Nine, 15mm x 110mm, 28 hole, Rear: Industry Nine, 12mm x 148mm, 28 hole

Geometry

Size SM MD LG XL XXL
a
Seat tube length
390,0
420,0
450,0
480,0
510,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
581,0
610,0
630,0
660,0
696,0
d
Head tube length
90,0
100,0
110,0
120,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1123,0
1152,0
1172,0
1202,0
1238,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
44,0
44,0
44,0
44,0
44,0
k
Stack height
601,0
610,0
610,0
624,0
638,0
l
Reach
412,0
437,0
457,0
482,0
512,0
m
Standover height
712,0
713,0
714,0
716,0
711,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
-
-
-
-
-
