Santa Cruz Tallboy D / Aluminum / 29 2020

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

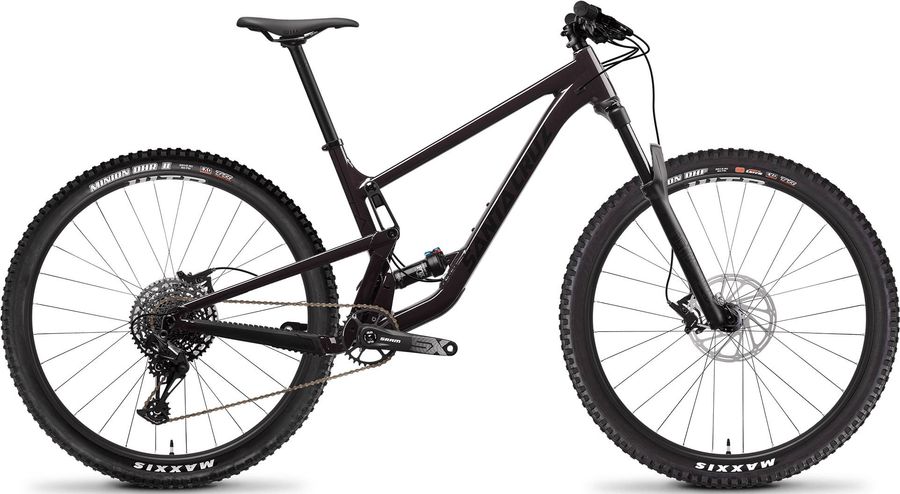

Santa Cruz Tallboy D / Aluminum / 29 2020

About the Santa Cruz Tallboy D / Aluminum / 29 2020

The Santa Cruz Tallboy D / Aluminum / 29 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Santa Cruz Tallboy D / Aluminum / 29 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Race Face Ride 50mm
Saddle
WTB Silverado Comp
Headset
Cane Creek 10 IS Integrated Headset
Seatpost
Race Face Ride, 31.6 400mm
Handlebar
Race Face Ride 35x760 bar
Discs
Avid Centerline 180mm
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM SX Eagle 148 DUB, 32t - 165mm (XS), 170mm (S-M), 175mm (L-XXL)
Shifter
SRAM SX Eagle
Bottom bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM SX PG1210
Frameset
Frame
Tallboy D / Aluminum / 29
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
Fox Float DPS Performance
Wheels
Rims
WTB ST i25 TCS 2.0 29" Rims
Tires
Maxxis Minion DHF 29"x2.3" EXO TR
Spokes
DT Competition (32)
Rear hub
SRAM MTH 746, 12x148, 32h
Front hub
SRAM MTH 716, 15x110, Torque Cap, 32h

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low XXL High XXL Low
a
Seat tube length
370,0
370,0
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
500,0
500,0
b
Seat tube angle
76,8º
76,5º
76,7º
76,4º
76,6º
76,3º
76,4º
76,2º
76,2º
76,0º
76,0º
75,8º
c
Top tube length
543,0
544,0
571,0
572,0
600,0
601,0
623,0
626,0
650,0
651,0
682,0
683,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
120,0
120,0
140,0
140,0
160,0
160,0
e
Head tube angle
65,7º
65,5º
65,7º
65,5º
65,7º
65,5º
65,7º
65,5º
65,7º
65,5º
65,7º
65,5º
f
Rake
46,0
46,0
46,0
45,0
46,0
46,0
46,0
46,0
46,0
46,0
45,0
46,0
g
Trail
119,0
120,0
119,0
121,0
119,0
120,0
119,0
120,0
119,0
120,0
120,0
120,0
h
Wheelbase
1133,0
1132,0
1162,0
1161,0
1191,0
1191,0
1215,0
1215,0
1243,0
1243,0
1276,0
1276,0
i
Chainstay length
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
j
Bottom bracket drop
38,0
41,0
38,0
41,0
38,0
41,0
38,0
41,0
38,0
41,0
38,0
41,0
k
Stack height
596,0
597,0
605,0
607,0
614,0
616,0
623,0
625,0
641,0
643,0
660,0
661,0
l
Reach
404,0
402,0
429,0
427,0
454,0
452,0
474,0
472,0
494,0
492,0
519,0
517,0
m
Standover height
685,0
682,0
700,0
696,0
712,0
708,0
710,0
707,0
706,0
702,0
706,0
702,0
x
Bottom bracket height
335,0
332,0
335,0
332,0
335,0
332,0
335,0
332,0
335,0
332,0
335,0
332,0
y
Front center
699,0
698,0
728,0
727,0
757,0
757,0
781,0
781,0
809,0
809,0
842,0
842,0
