Santa Cruz Tallboy X01 / Carbon CC / 29 2019

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
110mm

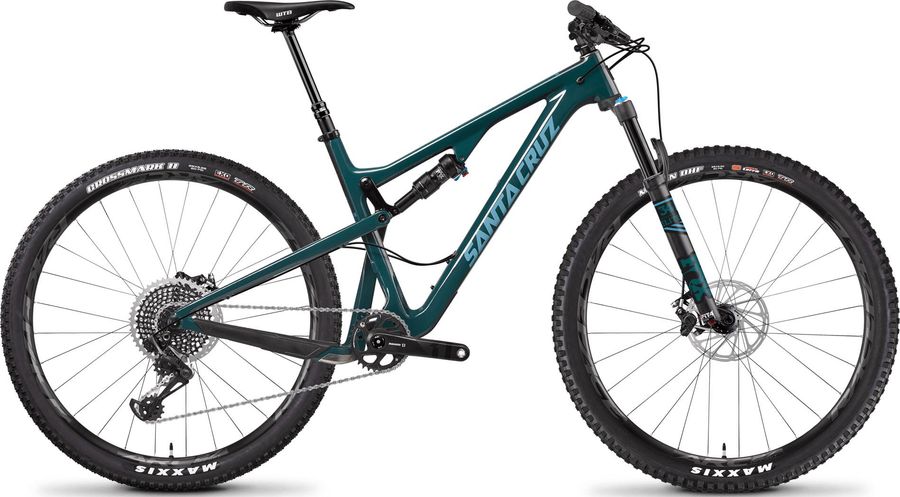

Santa Cruz Tallboy X01 / Carbon CC / 29 2019

About the Santa Cruz Tallboy X01 / Carbon CC / 29 2019

The Santa Cruz Tallboy X01 / Carbon CC / 29 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Tallboy X01 / Carbon CC / 29 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Easton Haven 55mm
Saddle
WTB Silverado Team Saddle
Headset
Cane Creek 40 IS Integrated Headset
Seatpost
RockShox Reverb Stealth 31.6
Handlebar
SCB AM Flat Bar Carbon 31.8x780
Discs
Avid Centerline 180mm
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X1 Eagle Carbon 148 DUB, 32t - 170mm (XS-S), 175mm (M-XL)
Shifter
SRAM X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Tallboy X01 / Carbon CC / 29
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
Race Face ARC Offset 27 29" Rims
Tires
Maxxis Minion 29x2.3 DHF 3c EXO TR
Spokes
DT Competition Race (28)
Rear hub
DT 350 148x12 28h XD
Front hub
DT 350 15x110 28H

Geometry

Size SM MD LG XL XXL
a
Seat tube length
390,0
420,0
450,0
480,0
510,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
581,0
610,0
630,0
660,0
695,0
d
Head tube length
90,0
100,0
100,0
115,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
53,0
53,0
53,0
53,0
53,0
g
Trail
94,0
94,0
94,0
94,0
94,0
h
Wheelbase
1123,0
1152,0
1172,0
1202,0
1238,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
40,0
k
Stack height
601,0
610,0
610,0
624,0
638,0
l
Reach
412,0
437,0
457,0
482,0
512,0
m
Standover height
712,0
713,0
714,0
716,0
711,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
684,0
713,0
733,0
763,0
799,0
