Santa Cruz Tallboy XTR Reserve / Carbon CC / 29 2020

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

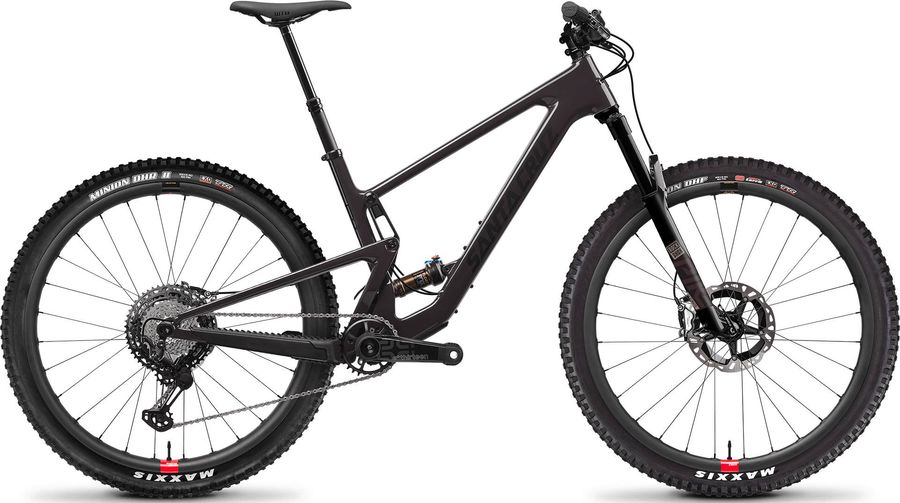

Santa Cruz Tallboy XTR Reserve / Carbon CC / 29 2020

About the Santa Cruz Tallboy XTR Reserve / Carbon CC / 29 2020

The Santa Cruz Tallboy XTR Reserve / Carbon CC / 29 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Tallboy XTR Reserve / Carbon CC / 29 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
i9 A35
Saddle
WTB Silverado Team Saddle
Headset
Chris King DropSet 3 Black
Seatpost
RockShox Reverb Stealth 31.6
Handlebar
Santa Cruz Bicycles AM Carbon Bar 35x760
Discs
Shimano XTR Ice. Tech Rotors, Centerlock, 180mm
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
E13 TRSr, 32T, Boost, 170mm (XS-M), 175mm (L-XXL)
Shifter
Shimano XTR M9100 SL, 12spd, I-Spec
Bottom bracket
E13 BSA BB
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Tallboy XTR Reserve / Carbon CC / 29
Front suspension
RockShox Pike Ultimate DebonAir
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Silver
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-ULT-B4
Name
Pike Ultimate
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Santa Cruz Reserve 27 29" Carbon Rims
Tires
Maxxis Minion DHF 29"x2.3" 3C EXO TR
Spokes
DT Competition Race (28)
Rear hub
i9 Hydra, 12x148, MicroSpline, Centerlock, 28h
Front hub
i9 Hydra, 15x110, Torque Cap, Centerlock, 28h

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low XXL High XXL Low
a
Seat tube length
370,0
370,0
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
500,0
500,0
b
Seat tube angle
76,8º
76,5º
76,7º
76,4º
76,6º
76,3º
76,4º
76,2º
76,2º
76,0º
76,0º
75,8º
c
Top tube length
543,0
544,0
571,0
572,0
600,0
601,0
623,0
626,0
650,0
651,0
682,0
683,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
120,0
120,0
140,0
140,0
160,0
160,0
e
Head tube angle
65,7º
65,5º
65,7º
65,5º
65,7º
65,5º
65,7º
65,5º
65,7º
65,5º
65,7º
65,5º
f
Rake
46,0
46,0
46,0
45,0
46,0
46,0
46,0
46,0
46,0
46,0
45,0
46,0
g
Trail
119,0
120,0
119,0
121,0
119,0
120,0
119,0
120,0
119,0
120,0
120,0
120,0
h
Wheelbase
1133,0
1132,0
1162,0
1161,0
1191,0
1191,0
1215,0
1215,0
1243,0
1243,0
1276,0
1276,0
i
Chainstay length
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
j
Bottom bracket drop
38,0
41,0
38,0
41,0
38,0
41,0
38,0
41,0
38,0
41,0
38,0
41,0
k
Stack height
596,0
597,0
605,0
607,0
614,0
616,0
623,0
625,0
641,0
643,0
660,0
661,0
l
Reach
404,0
402,0
429,0
427,0
454,0
452,0
474,0
472,0
494,0
492,0
519,0
517,0
m
Standover height
685,0
682,0
700,0
696,0
712,0
708,0
710,0
707,0
706,0
702,0
706,0
702,0
x
Bottom bracket height
335,0
332,0
335,0
332,0
335,0
332,0
335,0
332,0
335,0
332,0
335,0
332,0
y
Front center
699,0
698,0
728,0
727,0
757,0
757,0
781,0
781,0
809,0
809,0
842,0
842,0
