Scott Aspect 740 2017
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,92 kg
Front travel
100mm

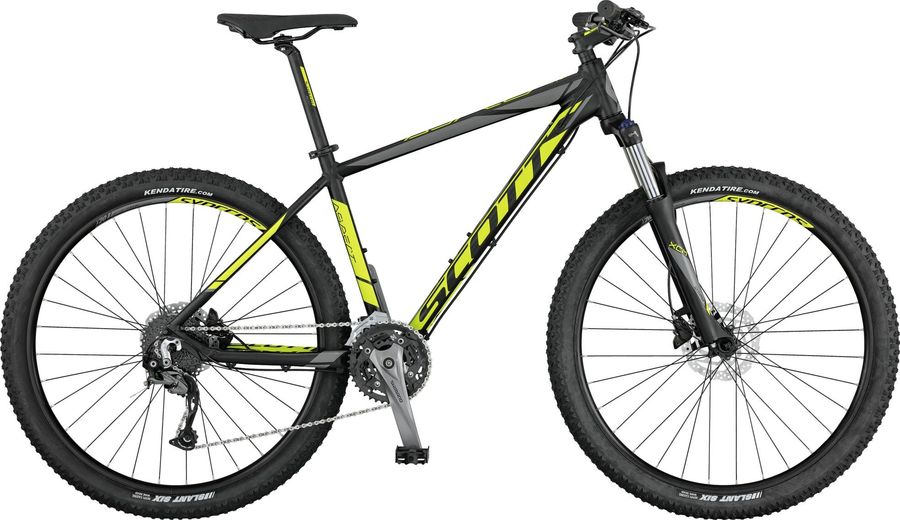

About the Scott Aspect 740 2017
The Scott Aspect 740 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 27 gears (3x9). Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 13,92 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Wellgo M-141SDU
|
|---|
|
Steam
|
Syncros M3.0 / 7° / Black
|
|---|---|
|
Saddle
|
Syncros M3.0
|
|
Headset
|
GW 1SI110 OE integ.
|
|
Seatpost
|
Syncros M3.0 27.2mm / 350mm / Black
|
|
Handlebar
|
Syncros M3.0 / 720mm black / 31,8mm / 12mm rise / 9° BS
|
|
Brake lever
|
Shimano BL-M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano FC-M3000 40x30x22
|
|---|---|
|
Shifter
|
Shimano SL-M370-9R R-fire plus
|
|
Bottom bracket
|
Shimano BB-UN-26 Cartridge Type
|
|
Front derailleur
|
Shimano FD-M3000 / 31.8mm
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Alivio RD-M4000
|
|
Chain
|
KMC X9
|
|
Frame
|
Aspect 700/900 series Alloy 6061 DB / Performance geometry Internal cable routing
|
|---|---|
|
Front suspension
|
SR Suntour XCM HLO
|
|
Rims
|
Syncros X-20 Disc 32H / black
|
|---|---|
|
Tires
|
Kenda Slant 6 2.1 / 30TPI
|
|
Spokes
|
14 G / stainless / black
|
|
Rear hub
|
Shimano FH-TX5058
|
|
Front hub
|
Shimano HB TX505
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
395,0
|
440,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
561,0
|
581,0
|
591,0
|
616,0
|
641,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
44,0
|
44,0
|
43,0
|
43,0
|
43,0
|
|
g
Trail
|
89,0
|
89,0
|
90,0
|
90,0
|
90,0
|
|
h
Wheelbase
|
1061,2
|
1081,0
|
1091,0
|
1117,0
|
1143,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
433,0
|
433,0
|
433,0
|
|
j
Bottom bracket drop
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
|
k
Stack height
|
584,6
|
584,6
|
593,9
|
607,9
|
621,9
|
|
l
Reach
|
384,1
|
404,0
|
411,3
|
432,0
|
452,7
|
|
m
Standover height
|
726,5
|
748,1
|
775,5
|
803,1
|
835,2
|
|
x
Bottom bracket height
|
295,0
|
295,0
|
295,0
|
295,0
|
295,0
|
|
y
Front center
|
632,0
|
652,0
|
662,0
|
688,0
|
714,0
|
