Scott Aspect 740 black/green 2019
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,2 kg
Front travel
100mm
About the Scott Aspect 740 black/green 2019

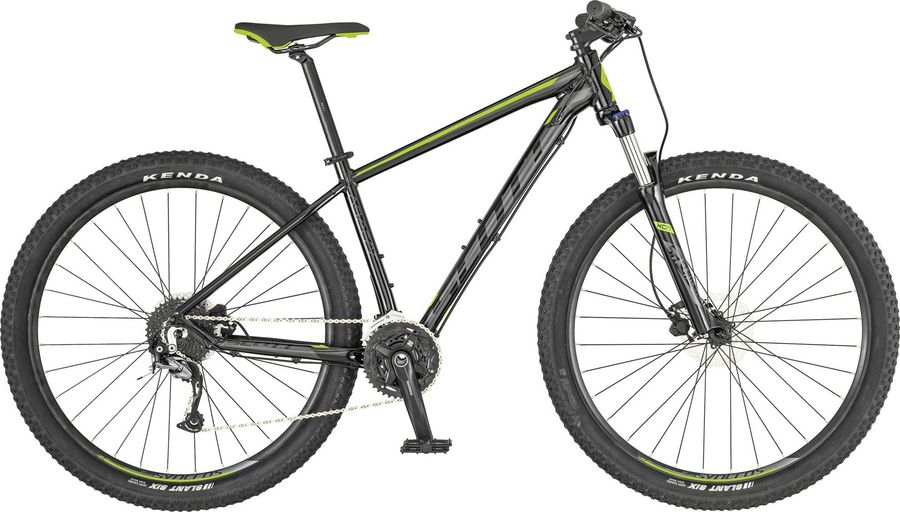

The Scott Aspect 740 black/green 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 27 gears (3x9). Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 14,2 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
VP VP-536
|
|---|
|
Steam
|
Syncros M3.0 / 7° / Black
|
|---|---|
|
Saddle
|
Syncros M3.0
|
|
Headset
|
Ritchey LOGIC ZERO-OE
|
|
Seatpost
|
Syncros M3.0 27.2mm / 350mm / Black
|
|
Handlebar
|
Syncros M3.0 / 720mm black / 31.8mm / 12mm rise / 9° BS
|
|
Brake lever
|
Shimano BL-MT200
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Shimano FC-MT210 2-piece Design / 40X30X22
|
|---|---|
|
Shifter
|
Shimano SL-M2000-9R R-fire plus
|
|
Bottom bracket
|
Shimano BB-MT500 Cartridge Type
|
|
Front derailleur
|
Shimano FD-M3000 / 31.8mm
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Alivio RD-M4000
|
|
Chain
|
KMC X9
|
|
Frame
|
Aspect 700/900 series Alloy 6061 DB / Performance geometry Internal cable routing
|
|---|---|
|
Front suspension
|
SR Suntour XCM HLO
|
|
Rims
|
Syncros X-20 Disc 32H / black
|
|---|---|
|
Tires
|
Kenda Slant 6 2.35" / 30TPI
|
|
Spokes
|
14 G / stainless / black
|
|
Rear hub
|
Shimano FH-TX5058
|
|
Front hub
|
Shimano HB TX505
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
395,0
|
440,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
561,0
|
581,0
|
591,0
|
616,0
|
641,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
89,0
|
89,0
|
89,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1069,0
|
1089,0
|
1,1e3
|
1126,0
|
1152,0
|
|
i
Chainstay length
|
441,0
|
441,0
|
441,0
|
441,0
|
441,0
|
|
j
Bottom bracket drop
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
|
k
Stack height
|
584,6
|
584,6
|
593,9
|
607,9
|
621,9
|
|
l
Reach
|
384,1
|
404,0
|
411,3
|
432,0
|
452,7
|
|
m
Standover height
|
726,5
|
748,1
|
775,5
|
803,1
|
835,2
|
|
x
Bottom bracket height
|
312,5
|
312,5
|
312,5
|
312,5
|
312,5
|
|
y
Front center
|
632,0
|
652,0
|
663,0
|
689,0
|
715,0
|
