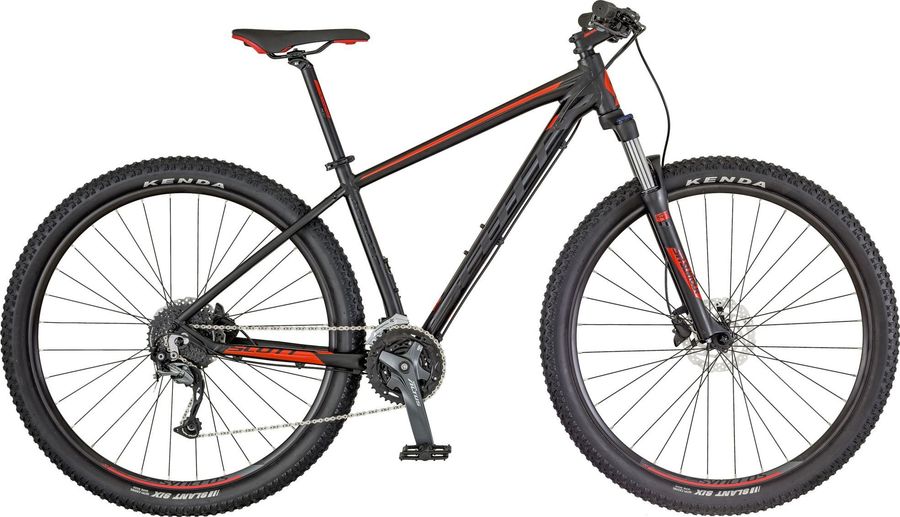

Scott Aspect 940 black/red 2018
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,3 kg
Front travel
100mm
About the Scott Aspect 940 black/red 2018
The Scott Aspect 940 black/red 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 18 gears (2x9). Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 14,3 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
VP VP-536
|
|---|
|
Steam
|
Syncros M3.0 / 7° / Black
|
|---|---|
|
Saddle
|
Syncros M3.0
|
|
Headset
|
Ritchey LOGIC ZERO-OE
|
|
Seatpost
|
Syncros M3.0 27.2mm / 350mm / Black
|
|
Handlebar
|
Syncros M3.0 / 720mm black / 31,8mm / 12mm rise / 9° BS
|
|
Brake lever
|
Shimano BL-M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano FC-M2000 40X-30x22
|
|---|---|
|
Shifter
|
Shimano SL-M2000-9R R-fire plus
|
|
Bottom bracket
|
Shimano BB-UN-26 Cartridge Type
|
|
Front derailleur
|
Shimano FD-M3000 / 31.8mm
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Alivio RD-M4000
|
|
Chain
|
KMC X9
|
|
Frame
|
Aspect 700/900 series Alloy 6061 DB / Performance geometry Internal cable routing
|
|---|---|
|
Front suspension
|
SR Suntour XCM HLO
|
|
Rims
|
Syncros X-20 Disc 32H / black
|
|---|---|
|
Tires
|
Kenda Slant 6 2.35 / 30TPI
|
|
Spokes
|
14 G / stainless / black
|
|
Rear hub
|
Shimano FH-TX5058
|
|
Front hub
|
Shimano HB TX505
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
440,0
|
480,0
|
530,0
|
580,0
|
|
b
Seat tube angle
|
72,5º
|
72,5º
|
72,5º
|
72,5º
|
72,5º
|
|
c
Top tube length
|
570,0
|
580,0
|
600,0
|
620,0
|
640,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
140,0
|
155,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
95,0
|
88,0
|
82,0
|
77,0
|
69,0
|
|
g
Trail
|
39,0
|
46,0
|
52,0
|
58,0
|
66,0
|
|
h
Wheelbase
|
1078,0
|
1089,0
|
1109,0
|
1131,0
|
1151,0
|
|
i
Chainstay length
|
453,0
|
453,0
|
453,0
|
453,0
|
453,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
446,1
|
476,7
|
501,8
|
534,9
|
568,4
|
|
l
Reach
|
376,0
|
383,0
|
400,0
|
415,0
|
431,0
|
|
m
Standover height
|
781,0
|
812,0
|
837,0
|
870,0
|
876,4
|
|
x
Bottom bracket height
|
316,0
|
316,0
|
316,0
|
316,0
|
316,0
|
|
y
Front center
|
632,0
|
643,0
|
663,0
|
685,0
|
705,0
|
