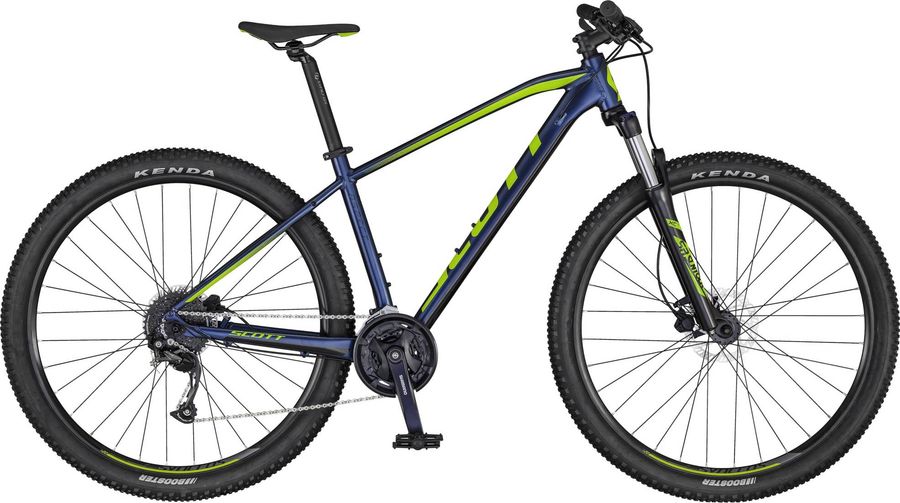

Scott Aspect 950 2020
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,6 kg
Front travel
100mm

About the Scott Aspect 950 2020
The Scott Aspect 950 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 27 gears (3x9). Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 14,6 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
Pedals
|
Feimin FP-873-ZU
|
---|
Steam
|
Syncros 3.0 / 7° / Black
|
---|---|
Saddle
|
Syncros 3.0
|
Headset
|
Ritchey LOGIC ZERO-OE
|
Seatpost
|
Syncros 3.0 31.6mm / 350mm / Black
|
Handlebar
|
Syncros 3.0 / 720mm black / 31.8mm / 12mm rise / 9° BS
|
Brake lever
|
Tektro HDM275
|
Brakes
|
Tektro HD-M275
|
Crankset
|
Shimano FC-MT101 40x30x22
|
---|---|
Shifter
|
Shimano SL-M2000-9R R-fire plus / 2 way release w/gear indicator
|
Bottom bracket
|
Shimano BB-UN100 cartridge type
|
Front derailleur
|
Shimano FD-M2000 / 31.8mm
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
11-34T 11-36T |
|
Chain
|
KMC X9
|
Rear derailleur
|
Shimano Altus RD-M2000
SGS
9s
|
|
Frame
|
Aspect 900-700 series / Alloy 6061 Custom Butted Tubing BSA73 / Internal Cable Routing / replaceable hanger
|
---|---|
Front suspension
|
SR Suntour XCT 30 HLO
|
Rims
|
Syncros X-20 Disc 32H / black
|
---|---|
Tires
|
Kenda Booster 2.4" / 30TPI
|
Spokes
|
14 G / stainless / black
|
Rear hub
|
Formula DC-25 8s RQR disc
|
Front hub
|
Formula DC-19 FQR disc
|
Geometry
Size | XS | SM | MD | LG | XL | XXL |
---|---|---|---|---|---|---|
a
Seat tube length
|
355,0
|
395,0
|
440,0
|
480,0
|
530,0
|
580,0
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
c
Top tube length
|
566,0
|
591,0
|
606,0
|
621,0
|
641,0
|
661,0
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
120,0
|
135,0
|
150,0
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
f
Rake
|
59,0
|
22,0
|
18,0
|
23,0
|
22,0
|
21,0
|
g
Trail
|
84,0
|
124,0
|
128,0
|
123,0
|
124,0
|
125,0
|
h
Wheelbase
|
1108,0
|
1096,0
|
1108,0
|
1129,0
|
1150,0
|
1170,0
|
i
Chainstay length
|
456,0
|
456,0
|
456,0
|
456,0
|
456,0
|
456,0
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
k
Stack height
|
586,0
|
609,0
|
618,0
|
628,0
|
642,0
|
655,0
|
l
Reach
|
394,0
|
412,0
|
425,0
|
437,0
|
453,0
|
469,0
|
m
Standover height
|
749,0
|
777,0
|
789,0
|
827,0
|
863,0
|
897,0
|
x
Bottom bracket height
|
316,0
|
314,0
|
314,0
|
314,0
|
314,0
|
314,0
|
y
Front center
|
659,0
|
647,0
|
659,0
|
680,0
|
701,0
|
721,0
|
