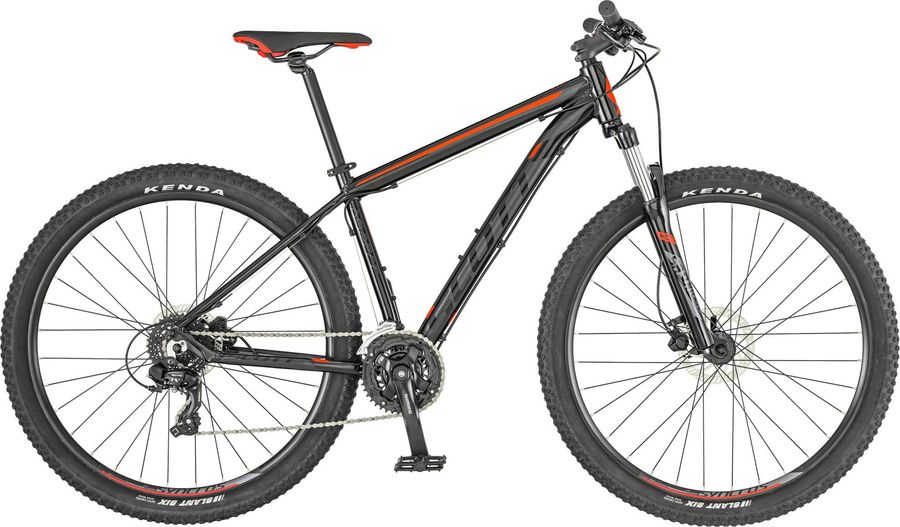

Scott Aspect 960 black/red 2019
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,7 kg
Front travel
100mm
About the Scott Aspect 960 black/red 2019
The Scott Aspect 960 black/red 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 14,7 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
VP VP-536
|
|---|
|
Steam
|
TDS-C302-8FOV / 10° / 31.8 / Black
|
|---|---|
|
Saddle
|
Syncros M3.0
|
|
Headset
|
Ritchey LOGIC ZERO-OE
|
|
Seatpost
|
HL SP C212 27.2mm / 350mm / Black
|
|
Handlebar
|
HL MTB-AL-312BT / 720mm / black / 12mm rise
|
|
Brake lever
|
Tektro HDM275
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Shimano FC-TY501 42x34x24 w/CG
|
|---|---|
|
Shifter
|
Shimano SL-M310-7R R-fire plus
|
|
Bottom bracket
|
Feimin FP.B908N
|
|
Front derailleur
|
Shimano FD-TY500-TS6 / 31.8mm
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Cassette
|
Sunrace 7-speed
|
|
Chain
|
KMC Z50
|
|
Frame
|
Aspect 700/900 series Alloy 6061 / Performance geometry
|
|---|---|
|
Front suspension
|
SR Suntour XCE
|
|
Rims
|
Syncros X-20 Disc 32H / black
|
|---|---|
|
Tires
|
Kenda Slant 6 2.35" / 30TPI
|
|
Spokes
|
14 G / stainless / black
|
|
Rear hub
|
Formula DC-25 7s RQR disc
|
|
Front hub
|
Formula DC-19 FQR disc
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
440,0
|
480,0
|
530,0
|
580,0
|
|
b
Seat tube angle
|
72,5º
|
72,5º
|
72,5º
|
72,5º
|
72,5º
|
|
c
Top tube length
|
570,0
|
580,0
|
600,0
|
620,0
|
640,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
140,0
|
155,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
38,0
|
38,0
|
37,0
|
39,0
|
38,0
|
|
g
Trail
|
99,0
|
99,0
|
101,0
|
98,0
|
99,0
|
|
h
Wheelbase
|
1078,0
|
1089,0
|
1109,0
|
1131,0
|
1151,0
|
|
i
Chainstay length
|
453,0
|
453,0
|
453,0
|
453,0
|
453,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
611,0
|
621,0
|
630,0
|
644,0
|
658,0
|
|
l
Reach
|
376,0
|
383,0
|
400,0
|
415,0
|
431,0
|
|
m
Standover height
|
781,0
|
812,0
|
837,0
|
870,0
|
876,4
|
|
x
Bottom bracket height
|
316,0
|
316,0
|
316,0
|
316,0
|
316,0
|
|
y
Front center
|
632,0
|
643,0
|
663,0
|
685,0
|
705,0
|
