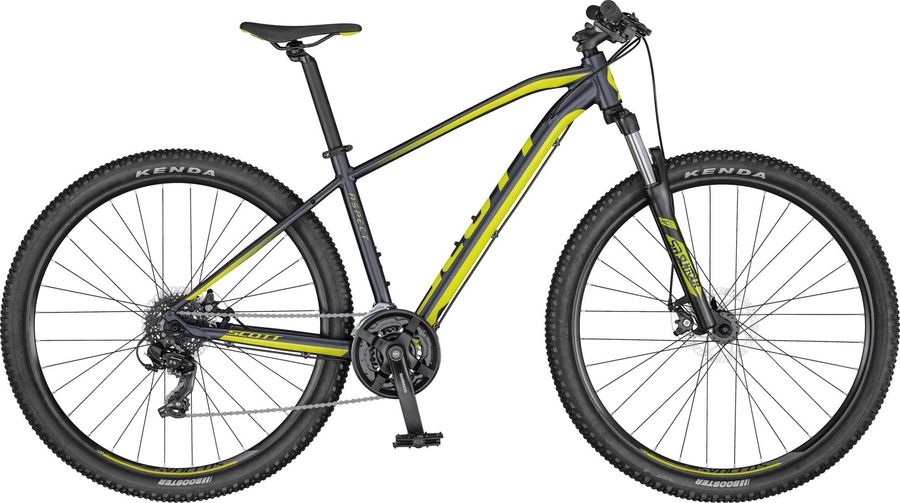

Scott Aspect 970 dk. 2020
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,95 kg
Front travel
100mm
About the Scott Aspect 970 dk. 2020
The Scott Aspect 970 dk. 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain. Its features include internal routing. The bike weighs approximately 14,95 kg.
Features
Internal routing
More info
Internal routing
Specifications
|
Pedals
|
Feimin FP-803
|
|---|
|
Steam
|
TDS-C302-8FOV / 10° / 31.8 / Black
|
|---|---|
|
Saddle
|
Syncros 3.0
|
|
Headset
|
Ritchey LOGIC ZERO-OE
|
|
Seatpost
|
HL SP C212 31.6mm / 350mm / Black
|
|
Handlebar
|
HL MTB-AL-312BT / 720mm / black / 12mm rise
|
|
Brakes
|
Tektro SCM-02 Mech. Disc
|
|
Crankset
|
Shimano FC-TY301 42x34x24 w/CG
|
|---|---|
|
Shifter
|
Shimano ST-EF 41 L / 7R EZ-fire plus w/gear indicator
|
|
Bottom bracket
|
Feimin FP.B908N BB73 / square taper
|
|
Front derailleur
|
Shimano FD-TY500-TS6 / 31.8mm
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Sunrace 7-speed
|
|
Frame
|
Aspect 900-700 series / Alloy 6061 Custom Tubing BSA73 / Internal Cable Routing / replaceable hanger
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
Syncros X-20 Disc 32H / black
|
|---|---|
|
Tires
|
Kenda Booster 2.4" / 30TPI
|
|
Spokes
|
14 G / stainless / black
|
|
Rear hub
|
Formula DC-27A 7s RQR disc
|
|
Front hub
|
Formula DC-19 FQR disc
|
Geometry
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
395,0
|
440,0
|
480,0
|
530,0
|
580,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
566,0
|
591,0
|
606,0
|
621,0
|
641,0
|
661,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
120,0
|
135,0
|
150,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
59,0
|
22,0
|
18,0
|
23,0
|
22,0
|
21,0
|
|
g
Trail
|
84,0
|
124,0
|
128,0
|
123,0
|
124,0
|
125,0
|
|
h
Wheelbase
|
1108,0
|
1096,0
|
1108,0
|
1129,0
|
1150,0
|
1170,0
|
|
i
Chainstay length
|
456,0
|
456,0
|
456,0
|
456,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
586,0
|
609,0
|
618,0
|
628,0
|
642,0
|
655,0
|
|
l
Reach
|
394,0
|
412,0
|
425,0
|
437,0
|
453,0
|
469,0
|
|
m
Standover height
|
749,0
|
777,0
|
789,0
|
827,0
|
863,0
|
897,0
|
|
x
Bottom bracket height
|
316,0
|
314,0
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
659,0
|
647,0
|
659,0
|
680,0
|
701,0
|
721,0
|
