Scott Aspect 980 2018
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,86 kg
Front travel
100mm

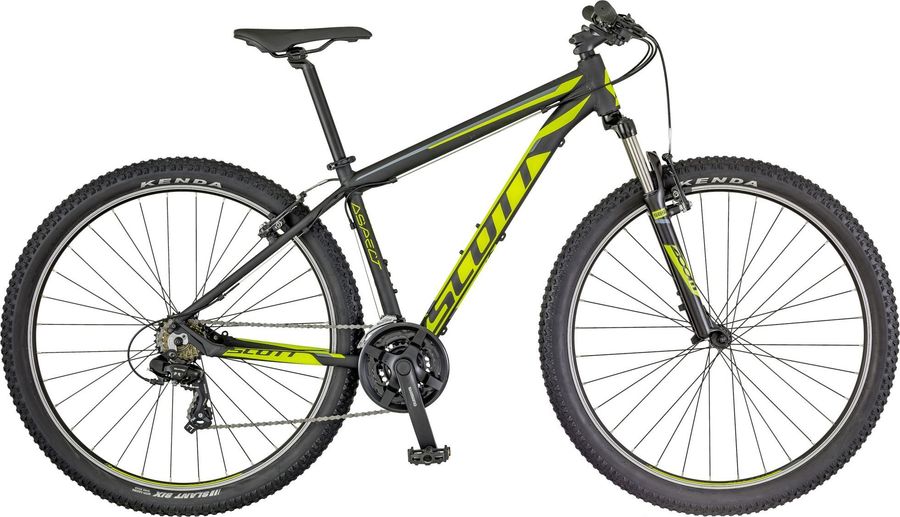

About the Scott Aspect 980 2018
The Scott Aspect 980 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7). The bike weighs approximately 13,86 kg.
Specifications
|
Pedals
|
Wellgo LU-895DU
|
|---|
|
Steam
|
TDS-C302-8FOV / 10° / 31.8 / Black
|
|---|---|
|
Brakes
|
Promax TX-107L V-brake
|
|
Saddle
|
Syncros M3.0
|
|
Headset
|
Ritchey LOGIC ZERO-OE
|
|
Seatpost
|
HL SP C212 27.2mm / 350mm / Black
|
|
Handlebar
|
HL MTB-AL-312BT / 720mm / black / 12mm rise
|
|
Crankset
|
Shimano FC-TY301 42x34x24 w/CG
|
|---|---|
|
Shifter
|
Shimano ST-EF 41 L / 7R EZ-fire plus
|
|
Bottom bracket
|
Shimano BB-UN-100 Cartridge Type
|
|
Front derailleur
|
Shimano FD-TY500-TS6 / 31.8mm
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z50
|
|
Cassette
|
Shimano MF-TZ21
|
|
Front suspension
|
HL Zoom 565 VB 100mm travel
|
|---|---|
|
Frame
|
Aspect 700/900 series Alloy 6061 / Performance geometry
|
|
Rims
|
Syncros X-18 CSW 32H / black
|
|---|---|
|
Tires
|
Kenda Slant 6 2.35 / 30TPI
|
|
Spokes
|
14 G / stainless / black
|
|
Rear hub
|
Formula FM-31 RQR
|
|
Front hub
|
Formula FM-21 FQR
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
440,0
|
480,0
|
530,0
|
580,0
|
|
b
Seat tube angle
|
72,5º
|
72,5º
|
72,5º
|
72,5º
|
72,5º
|
|
c
Top tube length
|
570,0
|
580,0
|
600,0
|
620,0
|
640,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
140,0
|
155,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
95,0
|
88,0
|
82,0
|
77,0
|
69,0
|
|
g
Trail
|
39,0
|
46,0
|
52,0
|
58,0
|
66,0
|
|
h
Wheelbase
|
1078,0
|
1089,0
|
1109,0
|
1131,0
|
1151,0
|
|
i
Chainstay length
|
453,0
|
453,0
|
453,0
|
453,0
|
453,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
446,1
|
476,7
|
501,8
|
534,9
|
568,4
|
|
l
Reach
|
376,0
|
383,0
|
400,0
|
415,0
|
431,0
|
|
m
Standover height
|
781,0
|
812,0
|
837,0
|
870,0
|
876,4
|
|
x
Bottom bracket height
|
316,0
|
316,0
|
316,0
|
316,0
|
316,0
|
|
y
Front center
|
632,0
|
643,0
|
663,0
|
685,0
|
705,0
|
