Scott Contessa Active 40 2020
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,6 kg
Front travel
100mm

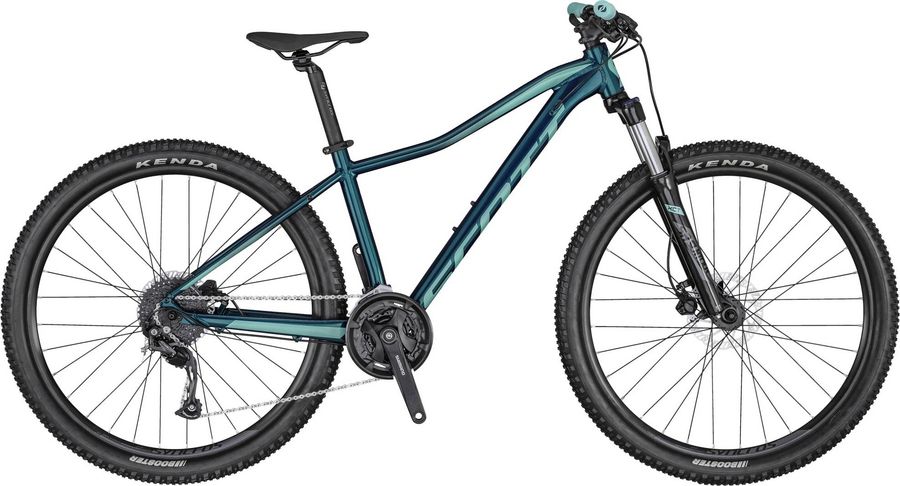

About the Scott Contessa Active 40 2020
The Scott Contessa Active 40 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 27 gears (3x9). Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 14,6 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Feimin FP-873-ZU
|
|---|
|
Steam
|
Syncros 3.0 / 7° / Black
|
|---|---|
|
Saddle
|
Syncros Savona 2.5 V-Concept
|
|
Headset
|
Ritchey LOGIC ZERO-OE
|
|
Seatpost
|
Syncros 3.0 31.6mm / 350mm / Black
|
|
Handlebar
|
Syncros 3.0 / 680mm black / 31.8mm / 12mm rise / 9° BS Syncros Women Pro grip
|
|
Brake lever
|
Tektro HDM276 / short reach lever
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Shimano FC-MT101 40x30x22
|
|---|---|
|
Shifter
|
Shimano SL-M2000-9R R-fire plus / 2 way release w/gear indicator
|
|
Bottom bracket
|
Shimano BB-UN100 BB73 / cartridge type
|
|
Front derailleur
|
Shimano FD-M2000 / 31.8mm
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Chain
|
KMC X9
|
|
Rear derailleur
|
Shimano Altus RD-M2000
SGS
9s
|
|
|
|
|
Frame
|
Contessa Active 700/900 series / Alloy 6061 Custom Butted Tubing OLD 135mm / BSA73 Internal Cable Routing / replaceable hanger
|
|---|---|
|
Front suspension
|
SR Suntour XCT 30 HLO
|
|
Rims
|
Syncros X-20 Disc 32H / black
|
|---|---|
|
Tires
|
Kenda Booster 2.4" / 30TPI
|
|
Spokes
|
14 G / stainless / black
|
|
Rear hub
|
Formula DC-25-8 RQR disc
|
|
Front hub
|
Formula DC-19 FQR disc
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
395,0
|
440,0
|
480,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
566,0
|
591,0
|
606,0
|
621,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,5º
|
68,5º
|
|
f
Rake
|
44,0
|
44,0
|
18,0
|
23,0
|
|
g
Trail
|
96,0
|
96,0
|
128,0
|
123,0
|
|
h
Wheelbase
|
1093,0
|
1121,0
|
1108,0
|
1129,0
|
|
i
Chainstay length
|
441,0
|
441,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
44,0
|
44,0
|
60,0
|
60,0
|
|
k
Stack height
|
558,0
|
581,0
|
618,0
|
628,0
|
|
l
Reach
|
408,0
|
426,0
|
425,0
|
437,0
|
|
m
Standover height
|
684,0
|
710,0
|
756,0
|
783,0
|
|
x
Bottom bracket height
|
308,5
|
316,0
|
314,0
|
314,0
|
|
y
Front center
|
656,0
|
684,0
|
659,0
|
680,0
|
