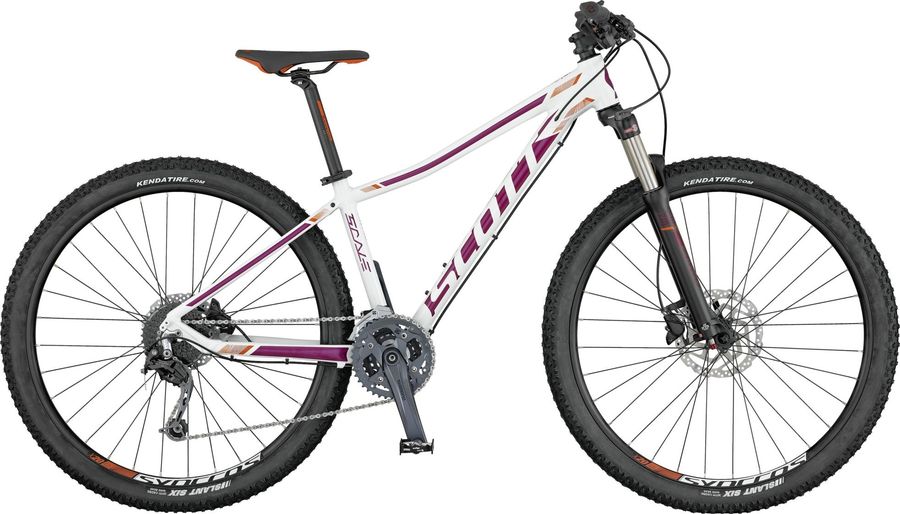

Scott Contessa Scale 940 2017
The Scott Contessa Scale 940 2017 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,1 kg
Front travel
100mm
About the Scott Contessa Scale 940 2017
The Scott Contessa Scale 940 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 27 gears (3x9). Its features include internal routing, hydraulic disc brakes, and remote lockout. The bike weighs approximately 14,1 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Pedals
|
Wellgo M-248DU
|
|---|
|
Steam
|
Syncros M3.0 7° / FlipFlop / Black
|
|---|---|
|
Saddle
|
Syncros XR 2.5 Women
|
|
Headset
|
GW 1SI110 OE integ.
|
|
Seatpost
|
Syncros M3.0 27.2mm / 350mm / Black
|
|
Handlebar
|
Syncros M3.0 / 680mm black / 31,8mm / 12mm rise / 9° BS Grips Syncros Women Comfort
|
|
Brake lever
|
Shimano BL-M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano FC-M4000 / 40x30x22
|
|---|---|
|
Shifter
|
Shimano SL-M370-9R R-fire plus
|
|
Bottom bracket
|
Shimano BB-ES-300 Cartridge Type
|
|
Front derailleur
|
Shimano FD-M3000 / 31.8mm
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Deore RD-M592
SGS
9s
|
|
|
|
|
Chain
|
KMC X9
|
|
Frame
|
Contessa Race 700/900 series 6061 Alloy D.B. / internal cable routing Solution geometry, sporty bended top tube
|
|---|---|
|
Front suspension
|
SR Suntour XCR-RL
|
|
Rims
|
Syncros X-20 Disc 32H / black
|
|---|---|
|
Tires
|
Kenda Slant 6 2.1 / 30TPI
|
|
Spokes
|
14 G / stainless / black
|
|
Rear hub
|
Shimano FH-TX5058
|
|
Front hub
|
Shimano HB TX505
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
370,0
|
410,0
|
460,0
|
|
b
Seat tube angle
|
72,5º
|
72,5º
|
72,5º
|
|
c
Top tube length
|
568,0
|
578,0
|
598,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
50,0
|
56,0
|
64,0
|
|
g
Trail
|
80,0
|
80,0
|
72,0
|
|
h
Wheelbase
|
1077,5
|
1084,0
|
1101,6
|
|
i
Chainstay length
|
454,0
|
454,0
|
454,0
|
|
j
Bottom bracket drop
|
61,0
|
61,0
|
61,0
|
|
k
Stack height
|
627,7
|
627,7
|
634,0
|
|
l
Reach
|
368,1
|
368,1
|
375,0
|
|
m
Standover height
|
698,0
|
723,0
|
758,0
|
|
x
Bottom bracket height
|
309,0
|
309,0
|
309,0
|
|
y
Front center
|
631,0
|
637,0
|
655,0
|
