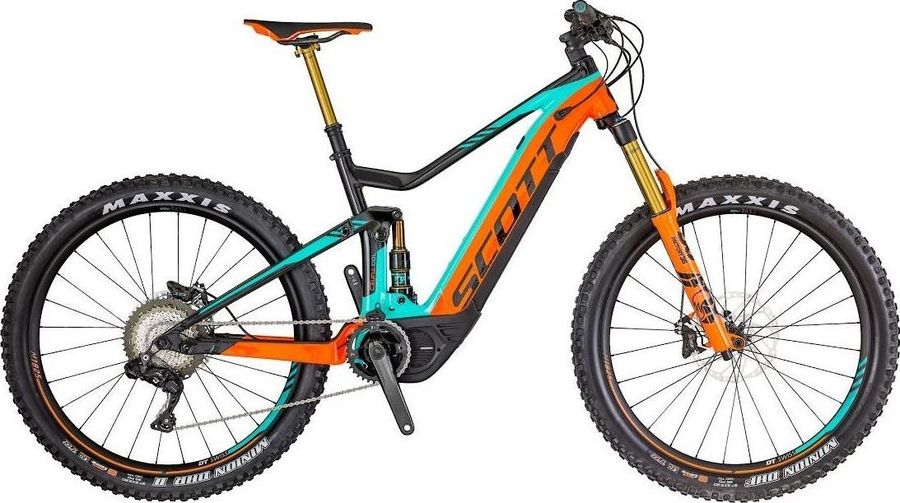

Scott E-Genius 700 Tuned 2018
The Scott E-Genius 700 Tuned 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT Di2
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,9 kg
Front travel
150mm
Rear travel
150mm
About the Scott E-Genius 700 Tuned 2018
The Scott E-Genius 700 Tuned 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and remote lockout. The bike weighs approximately 22,9 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Syncros Pro Lock-on
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Syncros FL1.5, alloy 2014, Garmin mount, 50mm length (S-M), 60mm length (L), 70mm length (XL), +/- 6°, 31.8mm clamp, integrated spacer and top cup
|
|---|---|
|
Saddle
|
Syncros XM1.0, carbon rails
|
|
Battery
|
Shimano BT-E8010 with charger
|
|
Headset
|
Syncros FL1.5 Press Fit E2
|
|
Seatpost
|
FOX Transfer, Kashima, 100mm (S), 125mm (M), 150mm (L-XL)
|
|
Handlebar
|
Syncros FL1.0 Di2 Mini Riser, carbon, 740mm width, 12mm rise, 9° sweep
|
|
Brake lever
|
Shimano BR-M640 Zee
|
|
Brakes
|
Shimano ZEE BR-M640
314 ** g
Hydraulic disc brake
4 piston
|
|
H03A Resin D03S Resin |
|
|
Chain
|
11-speed
|
|---|---|
|
Crankset
|
Shimano STEPS FC-E8050
|
|
Motor
|
Shimano Steps E8000, 250W
|
|
Shifter
|
Shimano XT SW-M8050-R, 11-speed
|
|
Chain guide
|
Scott
|
|
Cassette
|
Shimano Deore XT CS-M8000
HG
|
|
11-42T 11-46T 11-42T: 434g 11-46T: 437g |
|
|
Rear derailleur
|
Shimano Deore XT RD-M8050 Di2
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
DT Swiss H1825 Spline CL, 30mm width, 28 hole, tubeless ready
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF, 2.8" Double Down Maxx Terra TR 120 TPI kevlar bead, Rear: Maxxis Minion DHR II, 2.8" Double Down Maxx Terra TR 120 TPI kevlar bead
|
|
Spokes
|
DT Swiss
|
|
Rear hub
|
DT Swiss H1825 Spline CL, Boost front and rear
|
|
Front hub
|
DT Swiss H1825 Spline CL, Boost front and rear
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
490,0
|
490,0
|
540,0
|
540,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
579,5
|
579,5
|
599,6
|
599,6
|
629,7
|
629,7
|
659,7
|
659,7
|
|
d
Head tube length
|
120,0
|
120,0
|
125,0
|
125,0
|
135,0
|
135,0
|
145,0
|
145,0
|
|
e
Head tube angle
|
64,8º
|
64,8º
|
64,8º
|
64,8º
|
65,1º
|
65,1º
|
65,1º
|
65,1º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1208,8
|
1208,8
|
1229,7
|
1229,7
|
1252,0
|
1252,0
|
1283,7
|
1283,7
|
|
i
Chainstay length
|
455,0
|
455,0
|
455,0
|
455,0
|
455,0
|
455,0
|
455,0
|
455,0
|
|
j
Bottom bracket drop
|
13,0
|
13,0
|
13,0
|
13,0
|
13,0
|
13,0
|
13,0
|
13,0
|
|
k
Stack height
|
617,2
|
617,2
|
621,9
|
621,9
|
632,8
|
632,8
|
642,1
|
642,1
|
|
l
Reach
|
411,6
|
411,6
|
430,4
|
430,4
|
451,7
|
451,7
|
479,3
|
479,3
|
|
m
Standover height
|
731,6
|
731,6
|
737,5
|
737,5
|
762,2
|
762,2
|
773,2
|
773,2
|
|
x
Bottom bracket height
|
342,6
|
342,6
|
342,5
|
342,5
|
342,5
|
342,5
|
342,4
|
342,4
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
