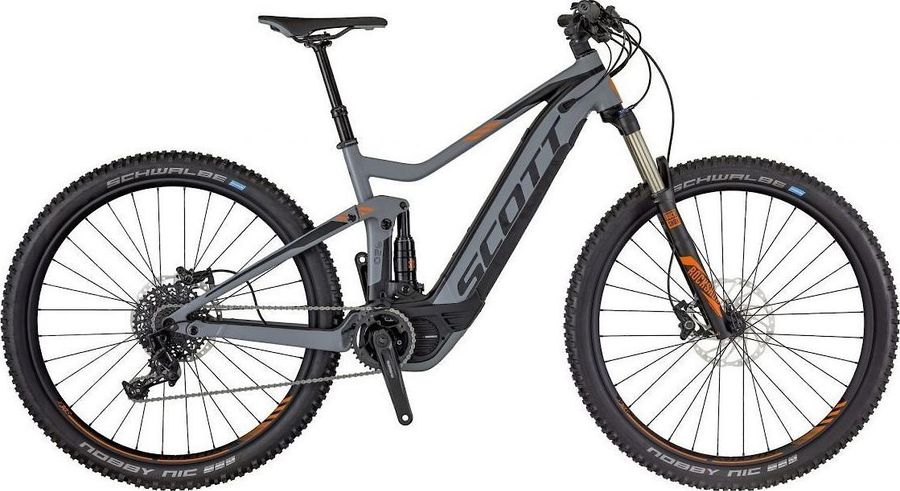

Scott E-Genius 920 2018
The Scott E-Genius 920 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
23,2 kg
Front travel
140mm
Rear travel
150mm
About the Scott E-Genius 920 2018
The Scott E-Genius 920 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23,2 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Syncros Pro Lock-on
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Syncros FL2.0, alloy 6061, 50mm length (S-M), 60mm length (L), 70mm length (XL), +/- 6°, 31.8mm clamp, integrated top cup
|
|---|---|
|
Saddle
|
Syncros XM2.5
|
|
Battery
|
Shimano BT-E8010 with charger
|
|
Headset
|
Syncros Pro Press Fit E2
|
|
Seatpost
|
Syncros Dropper 2.5, 100mm (S), 120mm (M-XL)
|
|
Handlebar
|
Syncros FL2.0 Steps Mini Riser, alloy 6061, 760mm width, 12mm rise, 9° sweep
|
|
Brake lever
|
Shimano Deore M6000
|
|
Brakes
|
Shimano Deore BR-M6000
Hydraulic disc brake
2 piston
|
|
G03S Resin J03A Resin ** BL-MT501 BL-T6000 SM-RT56**** SM-RT64 SM-RT66 |
|
|
Crankset
|
Shimano Steps FC-E8000
|
|---|---|
|
Motor
|
Shimano Steps E8000, 250W
|
|
Shifter
|
SRAM NX1, 11-speed
|
|
Chain guide
|
Scott
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Chain
|
SRAM PC-1110
259 g
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
X-Fusion NUDE Trunnion
|
|
Front suspension
|
RockShox Recon RL
Solo Air
|
|
|
|
|
Rims
|
Syncros X-30S, 32 hole, 30mm width, sleeve joint, tubeless ready
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic, 2.6" EVO Snake Skin TL-Easy Apex Addix Speedgrip
|
|
Spokes
|
Stainless black
|
|
Rear hub
|
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano FH-M6010-B CL, Boost 12mm x 148mm
|
|
Front hub
|
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano FH-M6010-B CL, Boost 12mm x 148mm
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
490,0
|
490,0
|
540,0
|
540,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
579,5
|
579,5
|
599,6
|
599,6
|
629,7
|
629,7
|
659,7
|
659,7
|
|
d
Head tube length
|
120,0
|
120,0
|
125,0
|
125,0
|
135,0
|
135,0
|
145,0
|
145,0
|
|
e
Head tube angle
|
64,8º
|
64,8º
|
64,8º
|
64,8º
|
65,1º
|
65,1º
|
65,1º
|
65,1º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1208,8
|
1208,8
|
1229,7
|
1229,7
|
1252,0
|
1252,0
|
1283,7
|
1283,7
|
|
i
Chainstay length
|
455,0
|
455,0
|
455,0
|
455,0
|
455,0
|
455,0
|
455,0
|
455,0
|
|
j
Bottom bracket drop
|
32,0
|
32,0
|
32,0
|
32,0
|
32,0
|
32,0
|
32,0
|
32,0
|
|
k
Stack height
|
617,2
|
617,2
|
621,9
|
621,9
|
632,8
|
632,8
|
642,1
|
642,1
|
|
l
Reach
|
411,6
|
411,6
|
430,4
|
430,4
|
451,7
|
451,7
|
479,3
|
479,3
|
|
m
Standover height
|
731,6
|
731,6
|
737,5
|
737,5
|
762,2
|
762,2
|
773,2
|
773,2
|
|
x
Bottom bracket height
|
342,6
|
342,6
|
342,5
|
342,5
|
342,5
|
342,5
|
342,4
|
342,4
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
