Scott E-Spark 710 2018

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,2 kg
Front travel
130mm
Rear travel
120mm

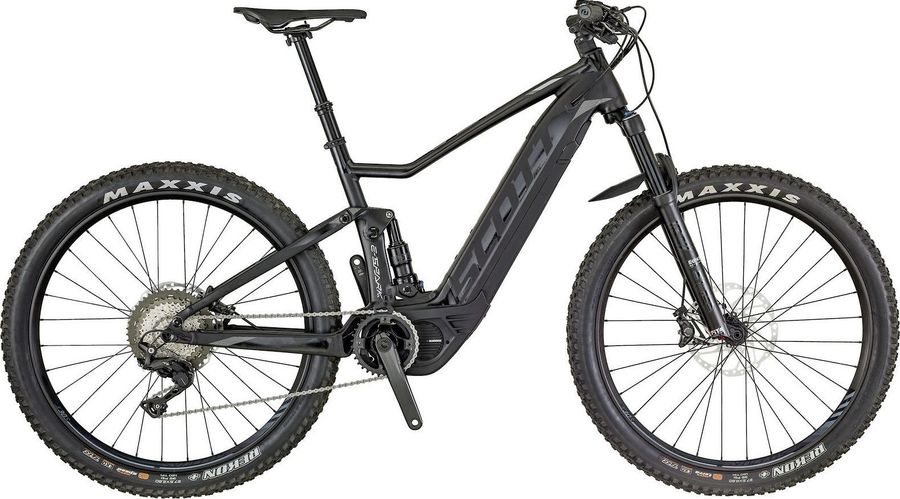

Scott E-Spark 710 2018

About the Scott E-Spark 710 2018

The Scott E-Spark 710 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,2 kg.

Features

The Scott E-Spark 710 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Syncros Pro Lock-on
Pedals
None included
Components
Steam
Syncros FL2.0, 6061 alloy, +/-6° 50mm length (S-M), 60mm length (L), 70mm length (XL)
Saddle
Syncros XM2.0, chromoly rails
Battery
Shimano BT-E8010 with charger
Headset
Syncros FL2.0 Press Fit E2
Seatpost
FOX Transfer, 100mm drop (S), 125mm drop (M), 150mm drop (L-XL)
Handlebar
Syncros FL1.5 Steps Mini Riser, 7050D.B. alloy
Brake lever
Shimano XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano Steps FC-E8050
Motor
Shimano Steps E8000
Shifter
Shimano XT SL-M8000-I, Rapidfire Plus, 2 way release, I-Spec 2 clamp, 11-speed
Chain guide
Scott
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Aluminum
Rear suspension
X-Fusion NUDE Trunnion
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
Syncros X-30S, 32 hole, 30mm width, sleeve joint, tubeless ready
Tires
Front: Maxxis Rekon, 2.8" EXO, TR, 120 tpi, 3C MaxxTerra, kevlar bead, Rear: Maxxis Rekon, 2.8" EXO, TR, 120 tpi, 3C MaxxSpeed, kevlar bead
Spokes
Stainless black
Rear hub
Front: Formula CL811, Boost 15mm x 110mm, Rear: Formula CL148S, Boost 12mm x 148mm
Front hub
Front: Formula CL811, Boost 15mm x 110mm, Rear: Formula CL148S, Boost 12mm x 148mm

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
573,0
603,0
633,0
653,0
d
Head tube length
120,0
125,0
135,0
145,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1151,8
1182,5
1213,7
1235,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
13,0
13,0
13,0
13,0
k
Stack height
598,7
603,3
612,5
621,7
l
Reach
399,3
428,0
455,4
472,7
m
Standover height
717,6
731,5
751,2
776,5
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
-
-
-
-
