BikeWise

Scott Gambler 720 2018

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
17,3 kg
Front travel
203mm
Rear travel
210mm

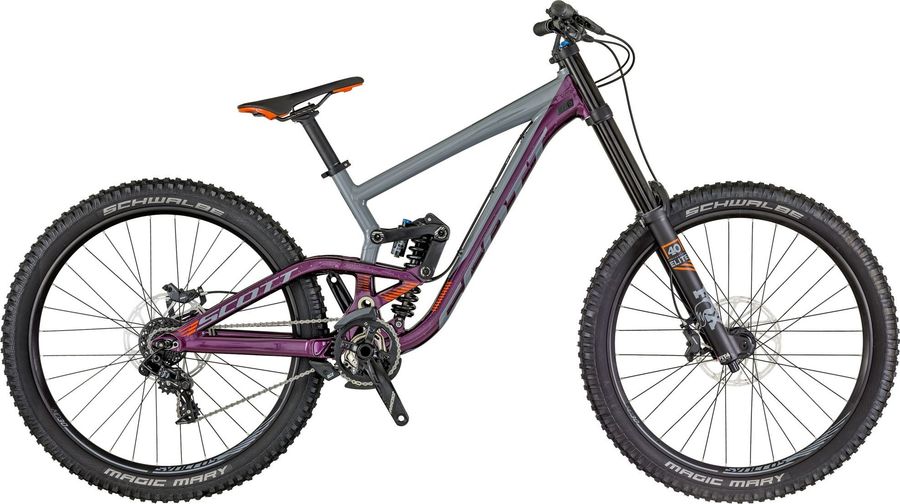

Scott Gambler 720 2018

About the Scott Gambler 720 2018

The Scott Gambler 720 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include boost 110 , e-thru axle, and hydraulic disc brakes. The bike weighs approximately 17,3 kg.

Features

The Scott Gambler 720 2018 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Syncros Pro DH dual lock-on
Components
Steam
Syncros DH1.5 35mm / Direct Mount 45-50mm ext.
Saddle
Syncros XM2.5 / Steel Rails
Headset
Syncros DH adjustable Semi integrated / adj +-1° or +-2° with cup ID 49.6mm / OD 55mm
Seatpost
Syncros DH2.0 / 31.6mm / Alloy6061
Handlebar
Syncros DH1.5 35mm / 800mm / 20mm Rise Syncros Pro DH dual lock-on grips
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Decendant 36T Alloy chainring / 165mm
Shifter
SRAM GX DH Trigger Shifter / 7 Speed
Chain guide
e*thirteen LG-1 with taco
Bottom bracket
SRAM PF MTB104 Shell 104.5x41mm
Front derailleur
E.thirteen LG-1 ISCG05 / w/Taco
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Gambler Alloy 6061 Hydroformed custom butted PF BB107 / IDS-X DH 12x150mm Dropout BB height adjustable ISCG05 / 210mm rear travel
Front suspension
Fox 40 Performance Elite
Rear suspension
Fox VAN R/RC
Wheels
Rims
Syncros MD30 Disc / 27.5 / 32H black / Tubeless Ready
Tires
Schwalbe Downhill Evolution Line Front: Magic Mary 27.5x2.35 Addix Ultra Soft Rear: Magic Mary 27.5x2.35 Addix Soft Supergravity
Spokes
DT Swiss Champion / 2.0 black
Rear hub
Formula DHL-150 150x12mm thru axle / sealed bearings
Front hub
Formula DHL-92 / 110x20mm thru axle

Geometry

Size SM High SM Low MD High MD Low LG High LG Low
a
Seat tube length
406,0
406,0
404,0
404,0
403,0
403,0
b
Seat tube angle
75,9º
75,1º
74,6º
73,7º
73,9º
73,0º
c
Top tube length
552,2
555,7
597,5
601,4
635,3
639,6
d
Head tube length
115,0
115,0
115,0
115,0
115,0
115,0
e
Head tube angle
63,7º
63,0º
63,7º
63,0º
63,7º
63,0º
f
Rake
51,0
52,0
52,0
52,0
52,0
52,0
g
Trail
119,0
123,0
118,0
123,0
118,0
123,0
h
Wheelbase
1178,5
1181,8
1208,5
1211,8
1238,5
1241,8
i
Chainstay length
427,5
431,0
427,5
431,0
427,5
431,0
j
Bottom bracket drop
3,0
13,0
3,0
13,0
3,0
13,0
k
Stack height
617,7
622,7
617,4
622,7
617,2
622,7
l
Reach
399,0
391,0
428,8
421,0
458,6
451,0
m
Standover height
789,6
784,6
783,1
777,6
777,3
771,3
x
Bottom bracket height
353,0
343,0
353,0
343,0
353,0
343,0
y
Front center
751,0
751,0
781,0
781,0
811,0
811,0
