Scott Gambler 730 2019

MTB Downhill
Groupset
SRAM X5
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
18,13 kg
Front travel
200mm
Rear travel
210mm

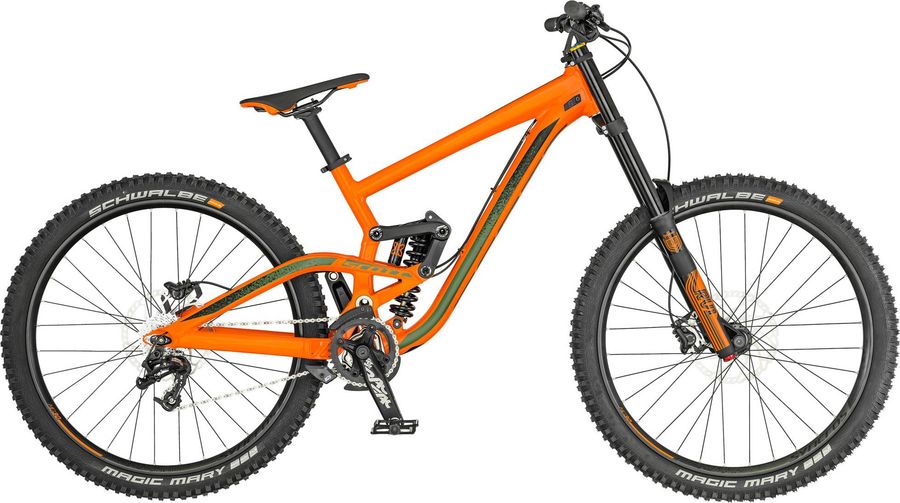

Scott Gambler 730 2019

About the Scott Gambler 730 2019

The Scott Gambler 730 2019 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X5 drivetrain of 8 gears (1x8). Its features include boost 110 , e-thru axle, and hydraulic disc brakes. The bike weighs approximately 18,13 kg.

Features

The Scott Gambler 730 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Wellgo B155U SCT / flat / w/replaceable pins
Components
Steam
Syncros DH1.5 35mm / Direct Mount 45-50mm ext.
Saddle
Syncros XM2.5 / Steel Rails
Headset
Syncros DH Semi integrated / straight ID 49.6mm / OD 55mm
Seatpost
Syncros DH2.0 / 31.6mm / Alloy6061
Handlebar
Syncros DH1.5 35mm / 800mm / 20mm Rise Syncros Pro DH dual lock-on grips
Brake lever
Shimano BL-MT500
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Chester 36T Alloy chainring / 165mm
Shifter
SRAM X4 Trigger Shifter / 8 Speed
Chain guide
E.thirteen LG-1 ISCG05 / w/Taco
Bottom bracket
Race Face BB107 BSA83
Chain
KMC Z7
Cassette
SRAM PG-830 8s
Cog finish cassete
Silver
Cog sizes
11-28t:11,12,14,16,18,21,24,28
11-30t:11,13,15,17,20,23,26,30
11-32t:11,12,14,16,18,21,26,32
Gearing
11-28t
11-30t
11-32t
Model
CS-PG-830-A1
Name
PG-830 Cassette
Speed
8s
Technology cassete
PG
Rear derailleur
SRAM X5 Rear Derailleur 10s, 9/8/7s, 9s
Cable pull ratio
1:1, Exact actuation
Cage
Long, Medium
Cage material
Aluminum, Aluminum/Steel
Color
Black, Silver
Max tooth
34, 36
Model
RD-X5-A1
Name
X5 Rear Derailleur
Pulley bearings material
Standard, Steel
Speed
10s, 9/8/7s, 9s
Frameset
Frame
Gambler Alloy 6061 Hydroformed custom butted IDS-X DH 12x150mm Dropout BB height adjustable ISCG05 / 210mm rear travel
Front suspension
X-Fusion RV1 DH
Rear suspension
X-Fusion Vector R Coil Rebound
Wheels
Rims
Syncros MD30 Disc / 27.5" / 32H black / Tubeless Ready
Tires
Schwalbe Downhill Evolution Line Magic Mary 27.5x2.35" Addix Soft Super Gravity
Spokes
DT Swiss Industry / 2.0 black
Rear hub
Formula DHL-150 150x12mm thru axle / sealed bearings
Front hub
Formula DHL-92 / 110x20mm thru axle

Geometry

Size SM High SM Low MD High MD Low LG High LG Low
a
Seat tube length
406,0
406,0
404,0
404,0
403,0
403,0
b
Seat tube angle
75,9º
75,1º
74,6º
73,7º
73,9º
73,0º
c
Top tube length
552,2
555,7
597,5
601,4
635,3
639,6
d
Head tube length
115,0
115,0
115,0
115,0
115,0
115,0
e
Head tube angle
63,7º
63,0º
63,7º
63,0º
63,7º
63,0º
f
Rake
51,0
52,0
52,0
52,0
52,0
52,0
g
Trail
119,0
123,0
118,0
123,0
118,0
123,0
h
Wheelbase
1178,5
1181,8
1208,5
1211,8
1238,5
1241,8
i
Chainstay length
427,5
431,0
427,5
431,0
427,5
431,0
j
Bottom bracket drop
3,0
13,0
3,0
13,0
3,0
13,0
k
Stack height
617,7
622,7
617,4
622,7
617,2
622,7
l
Reach
399,0
391,0
428,8
421,0
458,6
451,0
m
Standover height
789,6
784,6
783,1
777,6
777,3
771,3
x
Bottom bracket height
353,0
343,0
353,0
343,0
353,0
343,0
y
Front center
751,0
751,0
781,0
781,0
811,0
811,0
