Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,2 kg
Front travel
150mm
Rear travel
150mm

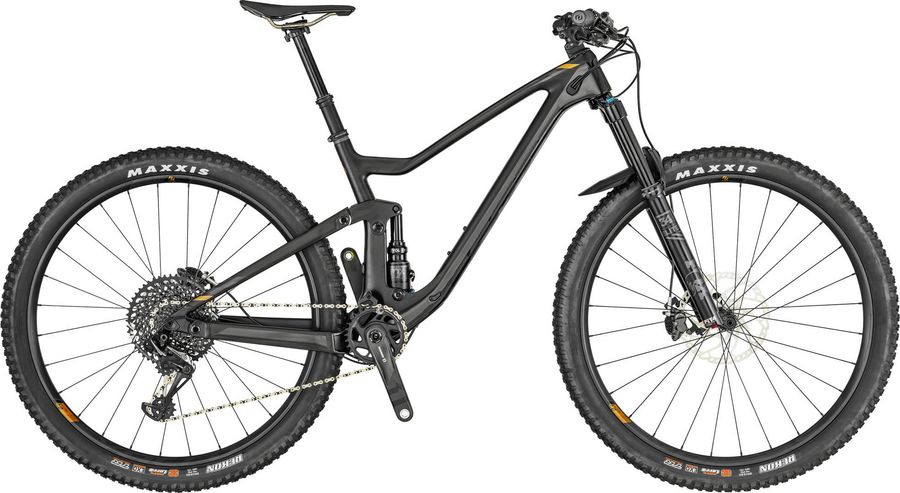

About the Scott Genius 710 2019
The Scott Genius 710 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,2 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8" Garmin mount
|
|---|---|
|
Saddle
|
Syncros Tofino 1.5 / Titanium rails
|
|
Headset
|
Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
FOX Transfer Dropper Remote 31.6mm / S size 100mm / M 125mm / L & XL 150mm
|
|
Handlebar
|
Syncros FL1.5 mini Riser / Alloy 7050D.B. 12mm rise / 9° / 760mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano Deore XT BR-M8020
Hydraulic disc brake
4 piston
|
|
D03S Resin H03A Resin SM-RT99 RT-EM810 RT-EM910 |
|
|
Crankset
|
SRAM X1 Carbon DUB Eagle Boost PF QF 168 / 32T
|
|---|---|
|
Shifter
|
SRAM GX Eagle Trigger
|
|
Chain guide
|
SCOTT custom
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Genius Carbon / IMP technology / HMF Mainframe BB92 / Alloy SL 6011 swingarm VLK Virtual 4 Link kinematic 27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo -BB adj. SW dropouts for Boost 12x148mm TBC Trunnion box construction
|
|---|---|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Front suspension
|
Fox 34 Float Performance Elite
|
|
Rims
|
Syncros Revelstoke 2.0 6 Bolt F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28H / XD Driver / DT RWS
|
|---|---|
|
Tires
|
900 Series: Maxxis Rekon 29x2.6" 700 Series: Maxxis Rekon 27.5x2.8" 120TPI Kevlar Bead / EXO / TR Tubeless ready / 3C Maxx Terra
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
480,0
|
480,0
|
520,0
|
520,0
|
|
b
Seat tube angle
|
75,3º
|
74,7º
|
75,3º
|
74,7º
|
75,3º
|
74,8º
|
75,3º
|
74,8º
|
|
c
Top tube length
|
561,2
|
562,7
|
594,2
|
595,8
|
624,8
|
626,4
|
661,4
|
663,1
|
|
d
Head tube length
|
95,0
|
95,0
|
95,0
|
95,0
|
110,0
|
110,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
50,0
|
51,0
|
50,0
|
|
g
Trail
|
107,3
|
117,7
|
107,3
|
117,6
|
107,3
|
117,5
|
107,3
|
117,4
|
|
h
Wheelbase
|
1157,6
|
1158,9
|
1190,6
|
1191,9
|
1223,8
|
1225,1
|
1263,0
|
1264,3
|
|
i
Chainstay length
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
|
j
Bottom bracket drop
|
20,0
|
27,4
|
20,0
|
27,5
|
20,0
|
27,6
|
20,0
|
27,8
|
|
k
Stack height
|
588,5
|
592,7
|
588,5
|
592,9
|
602,2
|
606,7
|
615,8
|
620,5
|
|
l
Reach
|
405,0
|
398,9
|
438,0
|
432,1
|
465,0
|
459,1
|
498,0
|
492,2
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
346,1
|
340,0
|
346,0
|
340,0
|
345,9
|
340,0
|
345,7
|
|
y
Front center
|
729,0
|
729,0
|
762,0
|
762,0
|
796,0
|
795,0
|
835,0
|
835,0
|
