Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm

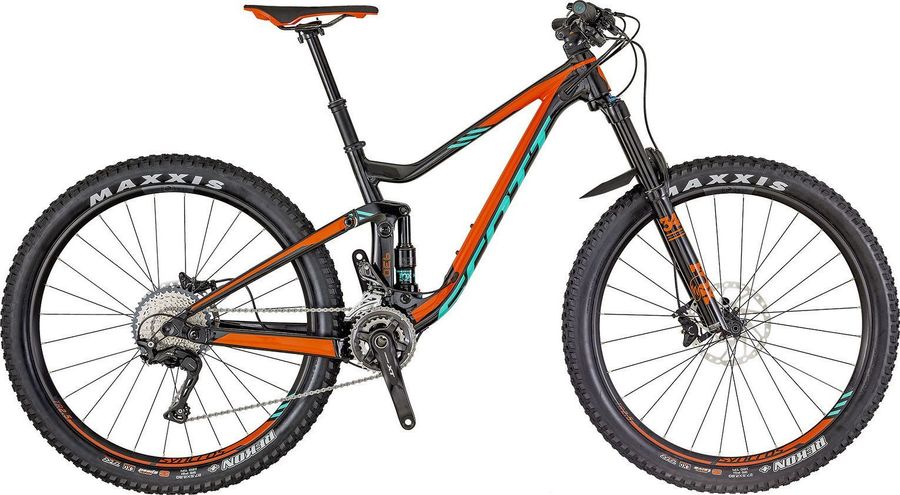

About the Scott Genius 730 2018
The Scott Genius 730 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Syncros Pro lock-on
|
|---|
|
Steam
|
Syncros FL 1.5, alloy 2014, integrated spacer and top cup, 31.8mm, 6°
|
|---|---|
|
Saddle
|
Syncros XM2.0, cromo rails
|
|
Headset
|
Syncros FL 2.0 Press Fit E2, tapered 1.5"-1 1/8", OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
FOX Transfer Dropper Remote, size S: 100mm, M: 125mm, L/XL: 150mm
|
|
Handlebar
|
Syncros FL 1.5 Mini Riser, alloy 7050 DB, 12mm rise, 9°, 760mm width
|
|
Brake lever
|
Shimano SLX M7000 Disc
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
Shimano XT FC-M8000-B2, Hollowtech 2
|
|---|---|
|
Shifter
|
Shimano XT SL-M8000-I, Raidfire Plus, 2-way release, Ispec 2 clamp
|
|
Bottom bracket
|
Shimano BB-MT500-PA, 41x89.5mm shell
|
|
Front derailleur
|
Shimano XT FD-M8020-D, side swing
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Chain
|
Shimano CN-HG601
257 g
|
|
|
|
|
Rear derailleur
|
Shimano RD-M8000-SGS
275 g
SGS
11s
|
|
42T(2x11-speed), 46T(1x11-speed) |
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Rims
|
Syncros TR2.5 CL wheelset: 30mm tubeless ready, 28 hole
|
|---|---|
|
Tires
|
Maxxis Rekon 2.8" x 27.5", 120 TPI Kevlar Bead, EXO, TR Tubeless ready, 3C Maxx Terra front / 3C Maxx Speed rear
|
|
Spokes
|
Syncros TR2.5 CL wheelset
|
|
Rear hub
|
Syncros TR2.5 CL wheelset
|
|
Front hub
|
Syncros TR2.5 CL wheelset
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
480,0
|
480,0
|
520,0
|
520,0
|
|
b
Seat tube angle
|
74,7º
|
74,7º
|
74,7º
|
74,7º
|
74,8º
|
74,8º
|
74,8º
|
74,8º
|
|
c
Top tube length
|
562,7
|
562,7
|
595,8
|
595,8
|
626,4
|
626,4
|
663,1
|
663,1
|
|
d
Head tube length
|
95,0
|
95,0
|
95,0
|
95,0
|
110,0
|
110,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1158,9
|
1158,9
|
1191,9
|
1191,9
|
1225,1
|
1225,1
|
1264,3
|
1264,3
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
431,0
|
431,0
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
9,0
|
9,0
|
9,0
|
9,0
|
10,0
|
10,0
|
10,0
|
10,0
|
|
k
Stack height
|
592,7
|
592,7
|
592,9
|
592,9
|
606,7
|
606,7
|
620,5
|
620,5
|
|
l
Reach
|
398,9
|
398,9
|
432,1
|
432,1
|
459,1
|
459,1
|
492,2
|
492,2
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
346,1
|
346,1
|
346,0
|
346,0
|
345,9
|
345,9
|
345,7
|
345,7
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
