Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,4 kg
Front travel
150mm
Rear travel
150mm

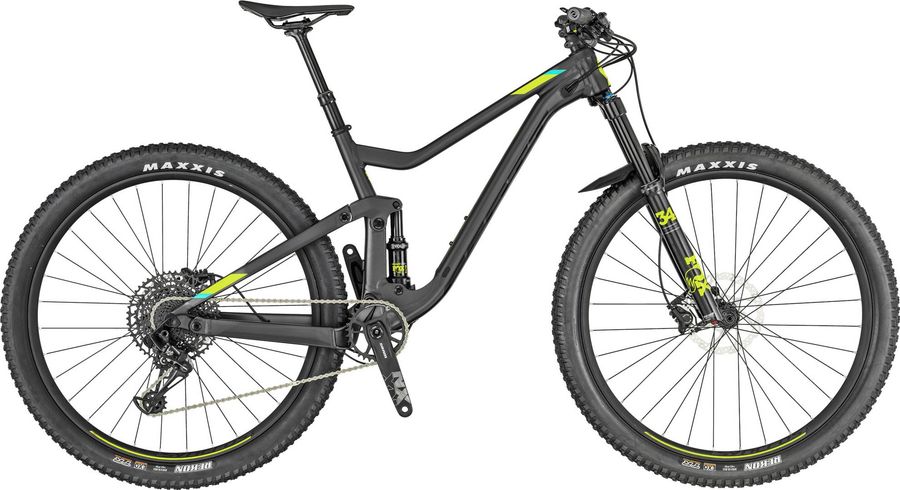

About the Scott Genius 750 2019
The Scott Genius 750 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,4 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros Tofino 2.0 / CRMO rails
|
|
Headset
|
Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
Syncros Dropper 2.0 / Remote 31.6mm / S size 100mm / M 125mm / L & XL 150mm
|
|
Handlebar
|
Syncros FL2.0 mini Riser / Alloy 6061D.B. 12mm rise / 9° / 760mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano BR-MT500
Hydraulic disc brake
2 piston
|
|
SM-RT56* |
|
|
Crankset
|
SRAM NX Eagle DUB Boost 32T
|
|---|---|
|
Shifter
|
SRAM NX Eagle Trigger
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Genius Alloy SL 6011 custom butted / VLK Virtual 4 Link kinematic 27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo -BB adj. TBC Trunnion box construction / Boost 12x148mm
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Rims
|
Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
|
|---|---|
|
Tires
|
900 Series: Maxxis Rekon 29x2.6" 700 Series: Maxxis Rekon 27.5x2.8" 60TPI Kevlar Bead / EXO / TR Tubeless ready
|
|
Spokes
|
Stainless Black 15G / 1.8mm
|
|
Rear hub
|
Shimano FH-MT400-B CL / Boost 12x148mm
|
|
Front hub
|
Shimano HB-MT400-B CL / 15x110mm
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
480,0
|
480,0
|
520,0
|
520,0
|
|
b
Seat tube angle
|
75,3º
|
74,7º
|
75,3º
|
74,7º
|
75,3º
|
74,8º
|
75,3º
|
74,8º
|
|
c
Top tube length
|
561,2
|
562,7
|
594,2
|
595,8
|
624,8
|
626,4
|
661,4
|
663,1
|
|
d
Head tube length
|
95,0
|
95,0
|
95,0
|
95,0
|
110,0
|
110,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
50,0
|
51,0
|
50,0
|
|
g
Trail
|
107,3
|
117,7
|
107,3
|
117,6
|
107,3
|
117,5
|
107,3
|
117,4
|
|
h
Wheelbase
|
1157,6
|
1158,9
|
1190,6
|
1191,9
|
1223,8
|
1225,1
|
1263,0
|
1264,3
|
|
i
Chainstay length
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
|
j
Bottom bracket drop
|
20,0
|
27,4
|
20,0
|
27,5
|
20,0
|
27,6
|
20,0
|
27,8
|
|
k
Stack height
|
588,5
|
592,7
|
588,5
|
592,9
|
602,2
|
606,7
|
615,8
|
620,5
|
|
l
Reach
|
405,0
|
398,9
|
438,0
|
432,1
|
465,0
|
459,1
|
498,0
|
492,2
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
346,1
|
340,0
|
346,0
|
340,0
|
345,9
|
340,0
|
345,7
|
|
y
Front center
|
729,0
|
729,0
|
762,0
|
762,0
|
796,0
|
795,0
|
835,0
|
835,0
|
