Groupset
SRAM X01
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,4 kg
Front travel
150mm
Rear travel
150mm

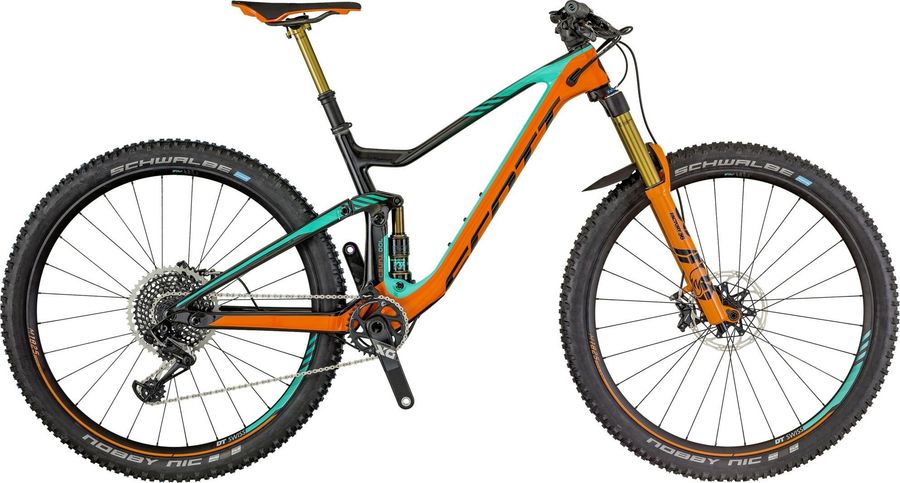

About the Scott Genius 900 Tuned 2018
The Scott Genius 900 Tuned 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,4 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Syncros Pro Lock-On
|
|---|
|
Steam
|
incl
|
|---|---|
|
Saddle
|
Syncros XM1.5 / Titanium rails
|
|
Headset
|
Syncros FL1.5 Press Fit E2 / Tapered 1.5" - 1 1/8" Ti bearing OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
FOX Transfer Dropper Remote Kashima / 31.6mm / S size 100mm / M 125mm / L & XL 150mm
|
|
Handlebar
|
Syncros Hixon iC SL Carbon 12mm rise / 9° / 760mm / Syncros Pro lock-on grips / Garmin mount
|
|
Brake lever
|
SRAM Guide RSC
|
|
Brakes
|
SRAM Guide RSC
Hydraulic
377 g
|
|
|
|
|
Crankset
|
SRAM X01 Carbon Eagle GXP Boost PF QF 168 / 32T
|
|---|---|
|
Shifter
|
SRAM X01 Trigger
|
|
Chain guide
|
Scott top guide, direct mount
|
|
Bottom bracket
|
SRAM GXP PF integrated / shell 41x92mm
|
|
Front derailleur
|
SCOTT Chainguide
|
|
Cassette
|
SRAM XG-1295 X01 Eagle
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Genius Carbon / IMP technology / HMX /1x optimized BB92 / Carbon swingarm Virtual 4 Link Design 27.5 (2.6 & 2.8) and 29 (2.4 & 2.6) tire compatible with Geo -BB adj. SW dropouts for Boost 12x148mm TBC Trunnion box construction
|
|---|---|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
DT Swiss M1825 Spline CL F: 15x110mm, R: 12 x 148mm Boost 30mm Tubless ready rim / 28H / XD DT RWS w/Removable Lever with Tool
|
|---|---|
|
Tires
|
700 Series: Maxxis Rekon 2.80 x 27.5 120TPI Kevlar Bead / EXO / TR Tubeless ready Front: 3C Maxx Terra / Rear: 3C Maxx Speed 900 Series: Schwalbe Nobby Nic 2.6 x 29 EVO / Snake Skin / TL-Easy / Addix Speedgrip
|
|
Spokes
|
DT Swiss M1825 Spline CL wheelset
|
|
Rear hub
|
DT Swiss M1825 Spline CL wheelset, XD driver, 15x110mm front / 12x148mm boost rear, DT RWS with removable lever with tool
|
|
Front hub
|
DT Swiss M1825 Spline CL wheelset, XD driver, 15x110mm front / 12x148mm boost rear, DT RWS with removable lever with tool
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
480,0
|
480,0
|
520,0
|
520,0
|
|
b
Seat tube angle
|
75,3º
|
74,7º
|
75,3º
|
74,7º
|
75,3º
|
74,8º
|
75,3º
|
74,8º
|
|
c
Top tube length
|
561,2
|
562,7
|
594,2
|
595,8
|
624,8
|
626,4
|
661,4
|
663,1
|
|
d
Head tube length
|
95,0
|
95,0
|
95,0
|
95,0
|
110,0
|
110,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
50,0
|
51,0
|
50,0
|
|
g
Trail
|
107,3
|
117,7
|
107,3
|
117,6
|
107,3
|
117,5
|
107,3
|
117,4
|
|
h
Wheelbase
|
1157,6
|
1158,9
|
1190,6
|
1191,9
|
1223,8
|
1225,1
|
1263,0
|
1264,3
|
|
i
Chainstay length
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
|
j
Bottom bracket drop
|
20,0
|
27,4
|
20,0
|
27,5
|
20,0
|
27,6
|
20,0
|
27,8
|
|
k
Stack height
|
588,5
|
592,7
|
588,5
|
592,9
|
602,2
|
606,7
|
615,8
|
620,5
|
|
l
Reach
|
405,0
|
398,9
|
438,0
|
432,1
|
465,0
|
459,1
|
498,0
|
492,2
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
346,1
|
340,0
|
346,0
|
340,0
|
345,9
|
340,0
|
345,7
|
|
y
Front center
|
729,0
|
729,0
|
762,0
|
762,0
|
796,0
|
795,0
|
835,0
|
835,0
|
