Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,8 kg

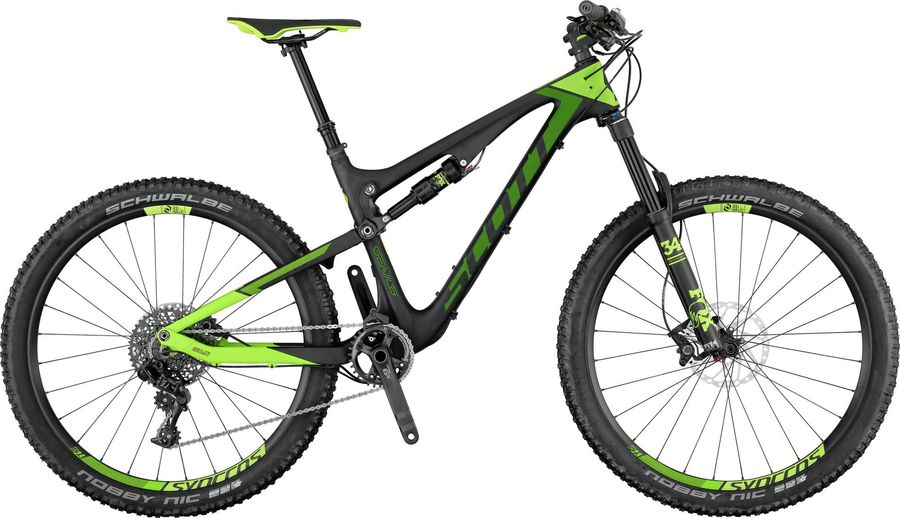

About the Scott Genius 920 2017
The Scott Genius 920 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 12,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros TR1.5 2014 / 3D forged / oversize 31.8mm 1 1/8" / 700 Series: +6° / 900 Series: -6°
|
|---|---|
|
Saddle
|
Syncros XM2.0 / CROM rails
|
|
Headset
|
Syncros Pro Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
|
|
Seatpost
|
FOX Transfer Dropper Remote 31.6mm / S size 100mm / M, L & XL 150mm
|
|
Handlebar
|
Syncros FL1.5 mini Riser / Alloy 7050D.B. 12mm rise / 9° / 760mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano Deore BR-M615
|
|
Crankset
|
SRAM Custom GX1 GXP PF 700 Series: 32T / 900 Series: 30T
|
|---|---|
|
Shifter
|
SRAM GX1 Trigger
|
|
Bottom bracket
|
SRAM GXP PF integrated / shell 41x89.5mm
|
|
Front derailleur
|
SCOTT Chainguide
|
|
Rear derailleur
|
SRAM GX 1x11 X-HORIZON Rear Derailleur
11s
265 g
|
|
|
|
|
Cassette
|
SRAM XG-1150
11s
|
|
|
|
|
Chain
|
SRAM PC-1110
259 g
|
|
|
|
|
Frame
|
Genius Carbon / IMP / HMF / BB92 / Alloy swingarm with 180PM U-Mono Link / Tapered Headtube IDS SL DM dropouts for 142x12mm BB height adj.
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Rims
|
Syncros TR2.5 /28H tubeless ready
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic EVO / 2.35 67EPI Kevlar Bead / Tubeless Easy PaceStar compound
|
|
Spokes
|
DT Swiss Competition 2.0-1.8-2.0 Black
|
|
Rear hub
|
Syncros TR2.5 CL / 142x12mm RWS axle Made by DT Swiss
|
|
Front hub
|
Syncros TR2.5 CL / 15x100mm made by DT Swiss
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
415,0
|
415,0
|
440,0
|
440,0
|
475,0
|
475,0
|
510,0
|
510,0
|
|
b
Seat tube angle
|
74,4º
|
73,9º
|
74,4º
|
73,9º
|
74,4º
|
74,0º
|
74,4º
|
74,0º
|
|
c
Top tube length
|
567,0
|
568,3
|
596,9
|
598,3
|
621,8
|
623,2
|
646,8
|
648,2
|
|
d
Head tube length
|
100,0
|
100,0
|
100,0
|
100,0
|
110,0
|
110,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
69,4º
|
68,9º
|
69,4º
|
68,9º
|
69,4º
|
69,0º
|
69,4º
|
69,0º
|
|
f
Rake
|
-14,0
|
-14,0
|
-15,0
|
-15,0
|
-23,0
|
-21,0
|
-19,0
|
-17,0
|
|
g
Trail
|
156,0
|
160,0
|
157,0
|
161,0
|
165,0
|
166,0
|
161,0
|
162,0
|
|
h
Wheelbase
|
1109,8
|
1110,2
|
1139,8
|
1140,2
|
1165,6
|
1166,0
|
1191,5
|
1191,9
|
|
i
Chainstay length
|
447,0
|
448,0
|
447,0
|
448,0
|
446,9
|
447,9
|
446,9
|
447,9
|
|
j
Bottom bracket drop
|
29,1
|
34,5
|
29,0
|
34,5
|
28,5
|
34,0
|
28,4
|
34,0
|
|
k
Stack height
|
770,8
|
768,4
|
773,5
|
770,8
|
804,1
|
801,0
|
801,8
|
798,6
|
|
l
Reach
|
397,2
|
392,2
|
427,1
|
422,2
|
449,8
|
445,1
|
472,1
|
467,4
|
|
m
Standover height
|
770,8
|
768,4
|
773,5
|
770,8
|
804,1
|
801,0
|
801,8
|
798,6
|
|
x
Bottom bracket height
|
340,9
|
335,5
|
341,0
|
335,5
|
341,5
|
336,0
|
341,6
|
336,0
|
|
y
Front center
|
664,0
|
664,0
|
694,0
|
694,0
|
720,0
|
720,0
|
746,0
|
746,0
|
