Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,4 kg
Front travel
150mm
Rear travel
150mm

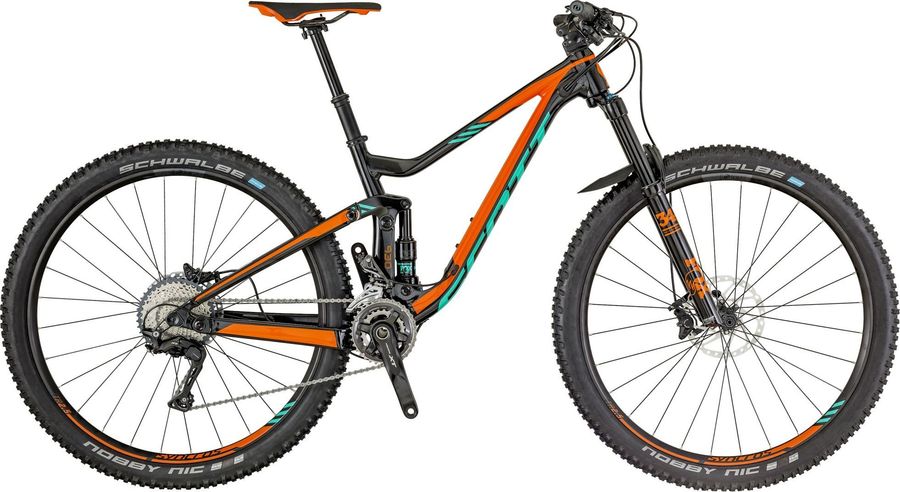

About the Scott Genius 930 2018
The Scott Genius 930 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,4 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Syncros Pro lock-on
|
|---|
|
Steam
|
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros XM2.0 / CRMO rails
|
|
Headset
|
Syncros FL2.0 Press Fit E2 / Tapered 1.5" - 1 1/8" OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
FOX Transfer Dropper Remote 31.6mm / S size 100mm / M 125mm / L & XL 150mm
|
|
Handlebar
|
Syncros FL1.5 mini Riser / Alloy 7050D.B. 12mm rise / 9° / 760mm Syncros Pro lock-on grips
|
|
Brake lever
|
Shimano SLX M7000 Disc
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
Shimano XT FC-M8000-B2 / Hollowtech 2 34x24 T
|
|---|---|
|
Shifter
|
Shimano XT SL-M8000-I / Rapidfire Plus 2 way release / Ispec 2 clamp
|
|
Bottom bracket
|
Shimano BB-MT500-PA / shell 41x89.5mm
|
|
Front derailleur
|
Shimano XT FD-M8020-D / side swing
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Chain
|
Shimano CN-HG601
257 g
|
|
|
|
|
Rear derailleur
|
Shimano RD-M8000-SGS
275 g
SGS
11s
|
|
42T(2x11-speed), 46T(1x11-speed) |
|
|
Frame
|
Genius Alloy SL 6011 custom butted / Virtual 4 Link Design 27.5 (2.6 & 2.8) and 29 (2.4 & 2.6) tire compatible with Geo -BB adj. TBC Trunnion box construction / Boost 12x148mm
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Rims
|
Syncros TR2.5 CL F: 15x110mm, R: 12 x 148mm Boost 30mm Tubless ready rim 28H
|
|---|---|
|
Tires
|
700 Series: Maxxis Rekon 2.80 x 27.5 120TPI Kevlar Bead / EXO / TR Tubeless ready Front: 3C Maxx Terra / Rear: 3C Maxx Speed 900 Series: Schwalbe Nobby Nic 2.6 x 29 EVO / Snake Skin / TL-Easy / Addix Speedgrip
|
|
Spokes
|
Syncros TR2.5 CL wheelset
|
|
Rear hub
|
Syncros TR2.5 CL wheelset
|
|
Front hub
|
Syncros TR2.5 CL wheelset
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
480,0
|
480,0
|
520,0
|
520,0
|
|
b
Seat tube angle
|
75,3º
|
74,7º
|
75,3º
|
74,7º
|
75,3º
|
74,8º
|
75,3º
|
74,8º
|
|
c
Top tube length
|
561,2
|
562,7
|
594,2
|
595,8
|
624,8
|
626,4
|
661,4
|
663,1
|
|
d
Head tube length
|
95,0
|
95,0
|
95,0
|
95,0
|
110,0
|
110,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
50,0
|
51,0
|
50,0
|
|
g
Trail
|
107,3
|
117,7
|
107,3
|
117,6
|
107,3
|
117,5
|
107,3
|
117,4
|
|
h
Wheelbase
|
1157,6
|
1158,9
|
1190,6
|
1191,9
|
1223,8
|
1225,1
|
1263,0
|
1264,3
|
|
i
Chainstay length
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
|
j
Bottom bracket drop
|
20,0
|
27,4
|
20,0
|
27,5
|
20,0
|
27,6
|
20,0
|
27,8
|
|
k
Stack height
|
588,5
|
592,7
|
588,5
|
592,9
|
602,2
|
606,7
|
615,8
|
620,5
|
|
l
Reach
|
405,0
|
398,9
|
438,0
|
432,1
|
465,0
|
459,1
|
498,0
|
492,2
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
346,1
|
340,0
|
346,0
|
340,0
|
345,9
|
340,0
|
345,7
|
|
y
Front center
|
729,0
|
729,0
|
762,0
|
762,0
|
796,0
|
795,0
|
835,0
|
835,0
|
