Groupset
SRAM NX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,9 kg
Front travel
150mm
Rear travel
150mm

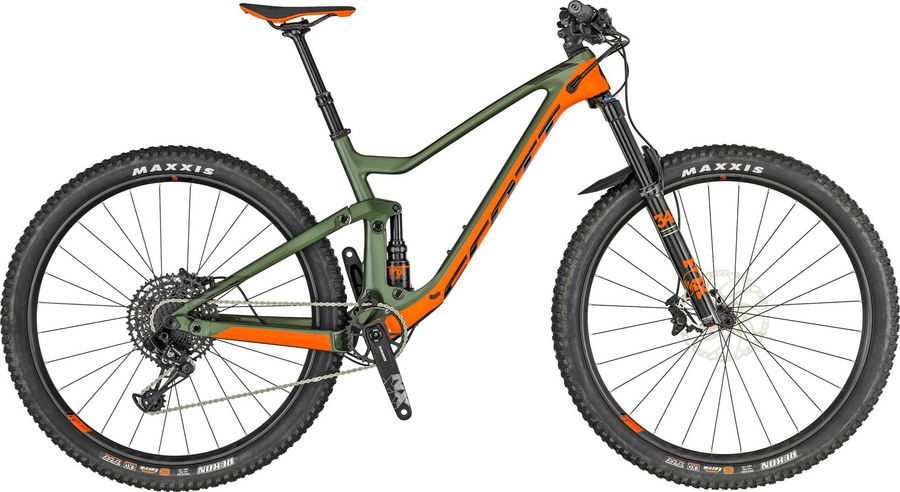

About the Scott Genius 930 2019
The Scott Genius 930 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,9 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros Tofino 2.0 / CRMO rails
|
|
Headset
|
Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
Syncros Dropper 2.0 / Remote 31.6mm / S size 100mm / M 125mm / L & XL 150mm
|
|
Handlebar
|
Syncros FL1.5 mini Riser / Alloy 7050D.B. 12mm rise / 9° / 760mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano BR-MT520
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
SRAM NX Eagle DUB Boost 32T
|
|---|---|
|
Shifter
|
SRAM NX Eagle Trigger
|
|
Chain guide
|
SCOTT custom
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Genius Carbon / IMP technology / HMF Mainframe BB92 / Alloy SL 6011 swingarm VLK Virtual 4 Link kinematic 27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo -BB adj. SW dropouts for Boost 12x148mm TBC Trunnion box construction
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Rims
|
Syncros Revelstoke 2.5 6 Bolt F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28H / Splined Driver
|
|---|---|
|
Tires
|
900 Series: Maxxis Rekon 29x2.6" 700 Series: Maxxis Rekon 27.5x2.8" 120TPI Kevlar Bead / EXO / TR Tubeless ready / 3C Maxx Terra
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
480,0
|
480,0
|
520,0
|
520,0
|
|
b
Seat tube angle
|
75,3º
|
74,7º
|
75,3º
|
74,7º
|
75,3º
|
74,8º
|
75,3º
|
74,8º
|
|
c
Top tube length
|
561,2
|
562,7
|
594,2
|
595,8
|
624,8
|
626,4
|
661,4
|
663,1
|
|
d
Head tube length
|
95,0
|
95,0
|
95,0
|
95,0
|
110,0
|
110,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
50,0
|
51,0
|
50,0
|
|
g
Trail
|
107,3
|
117,7
|
107,3
|
117,6
|
107,3
|
117,5
|
107,3
|
117,4
|
|
h
Wheelbase
|
1157,6
|
1158,9
|
1190,6
|
1191,9
|
1223,8
|
1225,1
|
1263,0
|
1264,3
|
|
i
Chainstay length
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
429,0
|
431,0
|
|
j
Bottom bracket drop
|
20,0
|
27,4
|
20,0
|
27,5
|
20,0
|
27,6
|
20,0
|
27,8
|
|
k
Stack height
|
588,5
|
592,7
|
588,5
|
592,9
|
602,2
|
606,7
|
615,8
|
620,5
|
|
l
Reach
|
405,0
|
398,9
|
438,0
|
432,1
|
465,0
|
459,1
|
498,0
|
492,2
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
346,1
|
340,0
|
346,0
|
340,0
|
345,9
|
340,0
|
345,7
|
|
y
Front center
|
729,0
|
729,0
|
762,0
|
762,0
|
796,0
|
795,0
|
835,0
|
835,0
|
