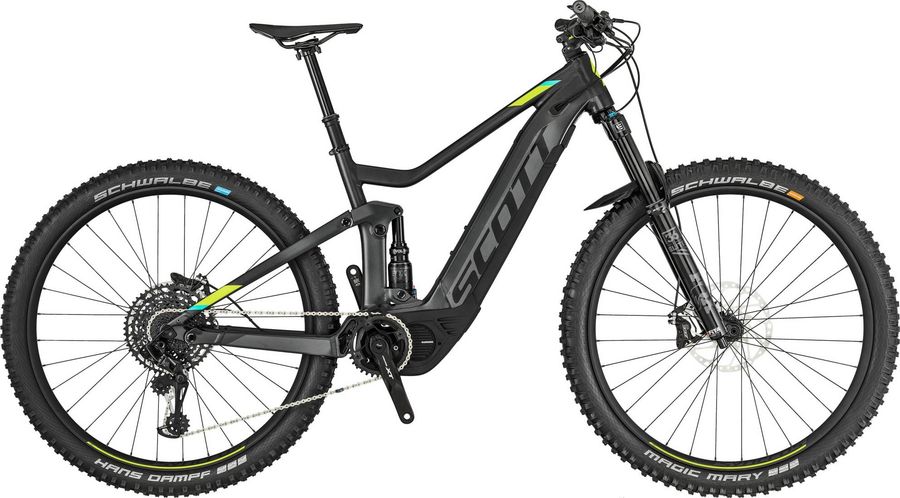

Scott Genius eRide 910 2020
The Scott Genius eRide 910 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm
About the Scott Genius eRide 910 2020
The Scott Genius eRide 910 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL1.5 / 2014 Alloy integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros Tofino 2.0 / CRMO rails
|
|
Headset
|
Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
FOX Transfer Dropper Remote 31.6mm / S size 100mm / M 125mm / L & XL 150mm
|
|
Handlebar
|
Syncros FL1.5 Steps mini Riser / Alloy 7050D.B. 12mm rise / 9° / 760mm Syncros Pro lock-on grips
|
|
Brake lever
|
Shimano BL-M640 ZEE
|
|
Brakes
|
Shimano ZEE BR-M640
314 ** g
Hydraulic disc brake
4 piston
|
|
H03A Resin D03S Resin |
|
|
Crankset
|
Shimano STEPS FC-M8050 / 165mm / 34T
|
|---|---|
|
Shifter
|
SRAM NX Eagle Single Click
|
|
Chain guide
|
SCOTT custom
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 150mm travel / Shimano E-8000 Int. DT Battery Tapered Headtube E2, Central Kickstand Mount
|
|---|---|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Front suspension
|
Fox 36 Float Performance Elite
|
|
Rims
|
Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
|
|---|---|
|
Tires
|
Front: Schwalbe MagicMary Snake Skin / TL-Easy / Apex / Addix Soft Rear: Schwalbe Hans Dampf Snake Skin / TL-Easy / Apex / Addix Speedgrip 700 Series: 27.5x2.8" / 900 Series: 29x2.6"
|
|
Spokes
|
Stainless Black
|
|
Rear hub
|
Formula ECT148S / Boost 148x12mm
|
|
Front hub
|
Formula CL811 / 15x110mm
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
490,0
|
490,0
|
540,0
|
540,0
|
|
b
Seat tube angle
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,0º
|
74,5º
|
75,0º
|
74,5º
|
|
c
Top tube length
|
578,0
|
579,5
|
598,0
|
599,6
|
628,0
|
629,7
|
658,0
|
659,7
|
|
d
Head tube length
|
120,0
|
120,0
|
125,0
|
125,0
|
135,0
|
135,0
|
145,0
|
145,0
|
|
e
Head tube angle
|
65,3º
|
64,8º
|
65,3º
|
64,8º
|
65,6º
|
65,1º
|
65,6º
|
65,1º
|
|
f
Rake
|
51,0
|
52,0
|
51,0
|
52,0
|
51,0
|
52,0
|
51,0
|
51,0
|
|
g
Trail
|
111,1
|
119,9
|
111,1
|
119,8
|
108,9
|
117,5
|
108,9
|
117,4
|
|
h
Wheelbase
|
1207,6
|
1208,8
|
1228,5
|
1229,7
|
1250,7
|
1252,0
|
1282,4
|
1283,7
|
|
i
Chainstay length
|
453,0
|
455,0
|
453,0
|
455,0
|
453,0
|
455,0
|
453,0
|
455,0
|
|
j
Bottom bracket drop
|
23,5
|
30,9
|
23,5
|
31,0
|
23,5
|
31,1
|
23,5
|
31,2
|
|
k
Stack height
|
613,1
|
617,2
|
617,6
|
621,9
|
628,5
|
632,8
|
637,6
|
642,1
|
|
l
Reach
|
417,6
|
411,6
|
436,5
|
430,4
|
457,7
|
451,7
|
485,3
|
479,3
|
|
m
Standover height
|
729,0
|
731,6
|
735,0
|
737,5
|
759,7
|
762,2
|
770,8
|
773,2
|
|
x
Bottom bracket height
|
340,0
|
342,6
|
340,0
|
342,5
|
340,0
|
342,5
|
340,0
|
342,4
|
|
y
Front center
|
756,0
|
755,0
|
776,0
|
776,0
|
799,0
|
799,0
|
830,0
|
830,0
|
