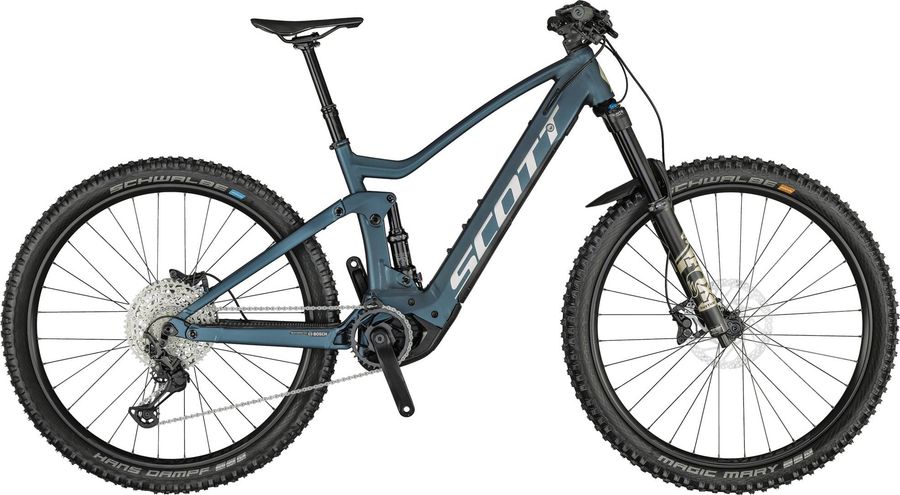

Scott Genius eRIDE 920 US 2021

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
23,4 kg
Front travel
160mm
Rear travel
150mm
Scott Genius eRIDE 920 US 2021

About the Scott Genius eRIDE 920 US 2021

The Scott Genius eRIDE 920 US 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23,4 kg.

Features

The Scott Genius eRIDE 920 US 2021 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Remote
Bosch Purion
Components
Steam
Syncros FL2.0 / 6061 Alloy L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8"
Saddle
Syncros Tofino 2.0 Regular CRMO rails
Battery
PowerTube 625Wh
Charger
4A Charger
Headset
Acros Blocklock / Tapered 1.5"-1 1/8" OD 52/62mm / ID 44/56mm
Seatpost
Syncros Duncan Dropper Post 2.5 31.6mm / S size 100mm / M 125mm / L & XL 150mm
Handlebar
Syncros Hixon 2.0 / Alloy 6061D.B. 12mm rise / 9° / 780mm Syncros Pro lock-on grips
Discs
Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
FSA CK-745 165mm / 34T
Motor
Bosch Performance CX EU: 25kmh / US: 20mph
Shifter
Shimano SL-M6100
Chain guide
SCOTT Custom
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
KMC 12v
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 150mm travel / Bosch Gen4 / Integr. removable Battery Tapered Headtube E2/Forkstop, Central Kickstand Mount Range Booster Ready
Front suspension
Fox 36 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
Tires
Schwalbe MagicMary 29x2.6" Snake Skin / TL-Easy / Apex / Addix Soft
Spokes
Stainless Black
Rear hub
Shimano FH-MT410-B CL / Boost 12x148mm
Front hub
Shimano HB-MT400-B CL / 15x110mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
440,0
440,0
490,0
490,0
540,0
540,0
b
Seat tube angle
76,0º
75,4º
76,0º
75,4º
75,4º
74,8º
75,4º
74,8º
c
Top tube length
576,4
578,0
596,4
598,0
626,3
628,0
656,3
658,0
d
Head tube length
120,0
120,0
125,0
125,0
135,0
135,0
145,0
145,0
e
Head tube angle
65,4º
64,8º
65,4º
64,8º
65,6º
65,0º
65,6º
65,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
120,2
128,8
120,2
128,8
118,8
127,2
118,8
127,2
h
Wheelbase
1206,7
1208,2
1227,6
1229,1
1249,9
1251,4
1281,7
1283,2
i
Chainstay length
455,8
458,0
455,8
458,0
455,8
458,0
455,8
458,0
j
Bottom bracket drop
22,1
30,0
22,1
30,0
22,0
30,0
21,9
30,0
k
Stack height
615,2
619,6
619,6
624,2
629,7
634,4
638,6
643,4
l
Reach
421,3
414,8
440,1
433,6
460,2
453,7
487,7
481,3
m
Standover height
741,8
755,4
746,3
759,6
778,4
791,1
790,4
802,8
x
Bottom bracket height
337,9
347,0
337,9
347,0
338,0
347,0
338,1
347,0
y
Front center
752,0
752,0
773,0
773,0
795,0
795,0
827,0
827,0
