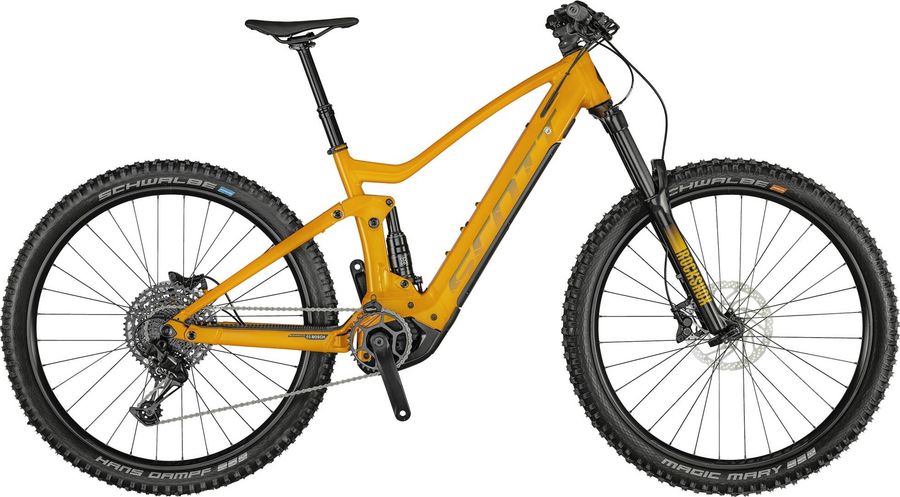

Scott Genius eRIDE 930 US 2021
The Scott Genius eRIDE 930 US 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
24 kg
Front travel
160mm
Rear travel
150mm
About the Scott Genius eRIDE 930 US 2021
The Scott Genius eRIDE 930 US 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Remote
|
Bosch Purion
|
|---|
|
Steam
|
Syncros FL2.0 / 6061 Alloy L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros Tofino 2.5 Regular
|
|
Battery
|
PowerTube 625Wh
|
|
Charger
|
4A Charger
|
|
Headset
|
Acros Blocklock / Tapered 1.5"-1 1/8" OD 52/62mm / ID 44/56mm
|
|
Seatpost
|
Syncros Duncan Dropper Post 2.5 31.6mm / S size 100mm / M 125mm / L & XL 150mm
|
|
Handlebar
|
Syncros Hixon 2.0 / Alloy 6061D.B. 12mm rise / 9° / 780mm Syncros Pro lock-on grips
|
|
Discs
|
Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm
|
|
Brakes
|
Shimano BR-MT420
Hydraulic disc brake
4 piston
|
|
BL-MT402-3A SM-RT54 * SM-RT56 * SM-RT64 |
|
|
Crankset
|
FSA CK-745 165mm / 34T
|
|---|---|
|
Motor
|
Bosch Performance CX EU: 25kmh / US: 20mph
|
|
Shifter
|
SRAM SX Eagle Single Click
|
|
Chain guide
|
SCOTT Custom
|
|
Chain
|
SRAM SX Eagle
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM SX PG1210
|
|
Frame
|
Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 150mm travel / Bosch Gen4 / Integr. removable Battery Tapered Headtube E2/Forkstop, Central Kickstand Mount Range Booster Ready
|
|---|---|
|
Rear suspension
|
X-Fusion NUDE Trunnion
|
|
Front suspension
|
RockShox 35 Silver TK
Coil, Solo Air
|
|
|
|
|
Rims
|
Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
|
|---|---|
|
Tires
|
Schwalbe MagicMary 29x2.6" Snake Skin / TL-Easy / Apex / Addix Soft
|
|
Spokes
|
Stainless Black
|
|
Rear hub
|
Formula CL-148S / Boost 148x12mm
|
|
Front hub
|
Formula CL-811 / 15x110mm
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
490,0
|
490,0
|
540,0
|
540,0
|
|
b
Seat tube angle
|
76,0º
|
75,4º
|
76,0º
|
75,4º
|
75,4º
|
74,8º
|
75,4º
|
74,8º
|
|
c
Top tube length
|
576,4
|
578,0
|
596,4
|
598,0
|
626,3
|
628,0
|
656,3
|
658,0
|
|
d
Head tube length
|
120,0
|
120,0
|
125,0
|
125,0
|
135,0
|
135,0
|
145,0
|
145,0
|
|
e
Head tube angle
|
65,4º
|
64,8º
|
65,4º
|
64,8º
|
65,6º
|
65,0º
|
65,6º
|
65,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
120,2
|
128,8
|
120,2
|
128,8
|
118,8
|
127,2
|
118,8
|
127,2
|
|
h
Wheelbase
|
1206,7
|
1208,2
|
1227,6
|
1229,1
|
1249,9
|
1251,4
|
1281,7
|
1283,2
|
|
i
Chainstay length
|
455,8
|
458,0
|
455,8
|
458,0
|
455,8
|
458,0
|
455,8
|
458,0
|
|
j
Bottom bracket drop
|
22,1
|
30,0
|
22,1
|
30,0
|
22,0
|
30,0
|
21,9
|
30,0
|
|
k
Stack height
|
615,2
|
619,6
|
619,6
|
624,2
|
629,7
|
634,4
|
638,6
|
643,4
|
|
l
Reach
|
421,3
|
414,8
|
440,1
|
433,6
|
460,2
|
453,7
|
487,7
|
481,3
|
|
m
Standover height
|
741,8
|
755,4
|
746,3
|
759,6
|
778,4
|
791,1
|
790,4
|
802,8
|
|
x
Bottom bracket height
|
337,9
|
347,0
|
337,9
|
347,0
|
338,0
|
347,0
|
338,1
|
347,0
|
|
y
Front center
|
752,0
|
752,0
|
773,0
|
773,0
|
795,0
|
795,0
|
827,0
|
827,0
|
