Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
160mm
Rear travel
160mm

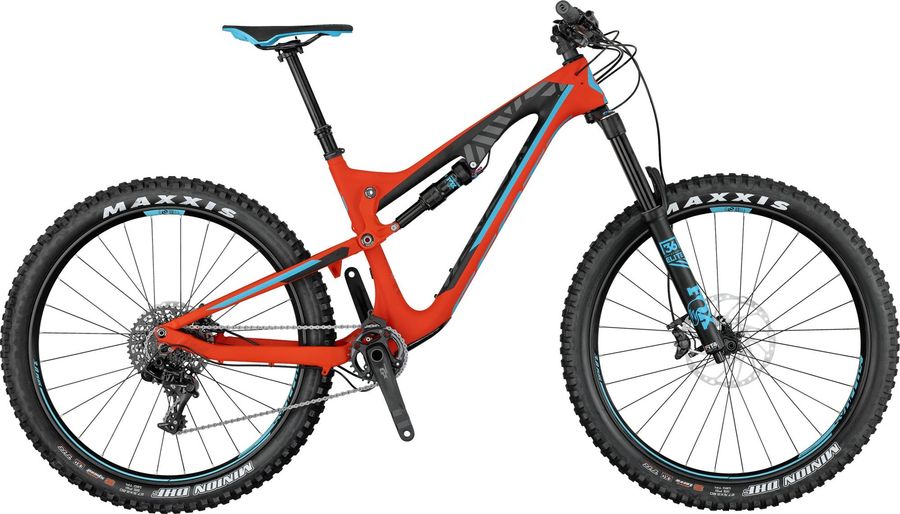

About the Scott Genius LT 710 Plus 2017
The Scott Genius LT 710 Plus 2017 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros XM1.5 35mm HB diameter / 0° angle
|
|---|---|
|
Saddle
|
Syncros XM1.5 / Titanium rails
|
|
Headset
|
Syncros Pro Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
|
|
Seatpost
|
FOX Transfer Dropper Remote 31.6mm / S size 125mm / M & L 150mm
|
|
Handlebar
|
Syncros AM2.0 mini Riser / Alloy 6061D.B. 12mm rise / 9° / 780mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
SRAM Custom GX1 GXP Boost PF 30T
|
|---|---|
|
Shifter
|
SRAM GX1 Trigger
|
|
Bottom bracket
|
SRAM GXP PF integrated / shell 41x89.5mm
|
|
Rear derailleur
|
SRAM GX1 / 11 Speed
|
|
Front derailleur
|
SCOTT Chainguide
|
|
Cassette
|
SRAM XG-1150
11s
|
|
|
|
|
Chain
|
SRAM PC-1110
259 g
|
|
|
|
|
Frame
|
Genius LT 700 PLUS Carbon / IMP / HMF / BB92 / Alloy swingarm with 180PM U-Mono Link / Tapered Headtube IDS SL dropouts for 148x12mm Boost 3.0" Tire clearance / BB height adj. 160mm rear travel
|
|---|---|
|
Rear suspension
|
Fox Float DPS
|
|
Front suspension
|
Fox 36 Float Performance Elite
|
|
Rims
|
Syncros 3.0 Plus / 28H / 35mm Tubeless ready
|
|---|---|
|
Tires
|
Maxxis Front: Minion DHF 2.80 x 27.5 / 3C Maxx Terra Rear: Minion DHF 2.80 x 27.5 3C / Maxx Speed 120TPI Kevlar Bead / EXO / TR Tubeless ready
|
|
Spokes
|
Xero Forza / 2.0 Black / Nyloc
|
|
Rear hub
|
Syncros 3.0 Plus / TC-14811 / Boost 148x12mm RWS axle / XD / made by Formula
|
|
Front hub
|
Syncros 3.0 Plus / TC-711 / 15x110mm made by Formula
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
415,0
|
415,0
|
440,0
|
440,0
|
475,0
|
475,0
|
|
b
Seat tube angle
|
74,5º
|
74,0º
|
74,5º
|
74,0º
|
74,5º
|
74,0º
|
|
c
Top tube length
|
568,0
|
568,0
|
598,0
|
598,0
|
623,0
|
623,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
110,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
66,3º
|
65,8º
|
66,3º
|
65,8º
|
66,3º
|
65,8º
|
|
f
Rake
|
56,0
|
54,0
|
56,0
|
54,0
|
57,0
|
54,0
|
|
g
Trail
|
95,0
|
101,0
|
95,0
|
101,0
|
94,0
|
101,0
|
|
h
Wheelbase
|
1158,0
|
1159,0
|
1189,0
|
1190,0
|
1216,0
|
1217,0
|
|
i
Chainstay length
|
446,0
|
446,0
|
446,0
|
446,0
|
446,0
|
446,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
603,0
|
606,0
|
613,0
|
616,0
|
622,0
|
625,0
|
|
l
Reach
|
392,0
|
388,0
|
419,0
|
415,0
|
441,0
|
437,0
|
|
m
Standover height
|
816,0
|
813,0
|
821,0
|
818,0
|
833,0
|
830,0
|
|
x
Bottom bracket height
|
345,0
|
345,0
|
345,0
|
345,0
|
345,0
|
345,0
|
|
y
Front center
|
713,0
|
714,0
|
744,0
|
745,0
|
771,0
|
772,0
|
