Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,3 kg
Front travel
160mm
Rear travel
160mm

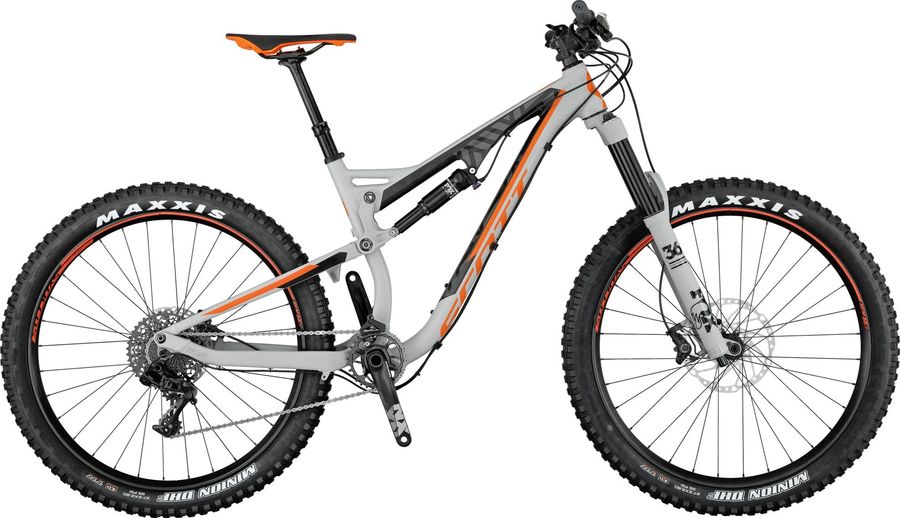

About the Scott Genius LT 720 Plus 2017
The Scott Genius LT 720 Plus 2017 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,3 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros XM1.5 35mm HB diameter / 0° angle
|
|---|---|
|
Saddle
|
Syncros XM2.0 / CROM rails
|
|
Headset
|
Syncros Comp Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
|
|
Seatpost
|
Syncros Dropper 2.0 / YSP12 ICR / Remote 31.6mm / 120mm
|
|
Handlebar
|
Syncros AM2.0 mini Riser / Alloy 6061D.B. 12mm rise / 9° / 780mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano Deore BR-M615
|
|
Crankset
|
SRAM Custom NX1 GXP Boost PF 30T
|
|---|---|
|
Shifter
|
SRAM NX1 Trigger
|
|
Bottom bracket
|
SRAM GXP PF integrated / shell 41x89.5mm
|
|
Front derailleur
|
SCOTT Chainguide
|
|
Rear derailleur
|
SRAM GX 1x11 X-HORIZON Rear Derailleur
11s
265 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Chain
|
SRAM PC-1110
259 g
|
|
|
|
|
Frame
|
Genius LT 700 PLUS Alloy 6061 custom butted Hydroformed tubes / tapered Headtube BB92 / U-Mono Link / rear 180PM IDS SL DM dropout for 148x12mm Boost BB height adj. / 160mm rear travel
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
Syncros X-35 / 32H / 35mm Tubeless ready
|
|---|---|
|
Tires
|
Maxxis Minion DHF / 2.80 x 27.5 / 60TPI Kevlar Bead TR Tubeless ready Dual compound
|
|
Spokes
|
DT Swiss Champion Black 1.8mm
|
|
Rear hub
|
Shimano FH-M618-B CL / Boost 12x148mm RWS axle
|
|
Front hub
|
Shimano HB-M618-B CL / 15x110mm
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
415,0
|
415,0
|
440,0
|
440,0
|
475,0
|
475,0
|
|
b
Seat tube angle
|
74,5º
|
74,0º
|
74,5º
|
74,0º
|
74,5º
|
74,0º
|
|
c
Top tube length
|
568,0
|
568,0
|
598,0
|
598,0
|
623,0
|
623,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
110,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
66,3º
|
65,8º
|
66,3º
|
65,8º
|
66,3º
|
65,8º
|
|
f
Rake
|
56,0
|
54,0
|
56,0
|
54,0
|
57,0
|
54,0
|
|
g
Trail
|
95,0
|
101,0
|
95,0
|
101,0
|
94,0
|
101,0
|
|
h
Wheelbase
|
1158,0
|
1159,0
|
1189,0
|
1190,0
|
1216,0
|
1217,0
|
|
i
Chainstay length
|
446,0
|
446,0
|
446,0
|
446,0
|
446,0
|
446,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
603,0
|
606,0
|
613,0
|
616,0
|
622,0
|
625,0
|
|
l
Reach
|
392,0
|
388,0
|
419,0
|
415,0
|
441,0
|
437,0
|
|
m
Standover height
|
816,0
|
813,0
|
821,0
|
818,0
|
833,0
|
830,0
|
|
x
Bottom bracket height
|
345,0
|
345,0
|
345,0
|
345,0
|
345,0
|
345,0
|
|
y
Front center
|
713,0
|
714,0
|
744,0
|
745,0
|
771,0
|
772,0
|
