Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,6 kg
Front travel
170mm
Rear travel
170mm

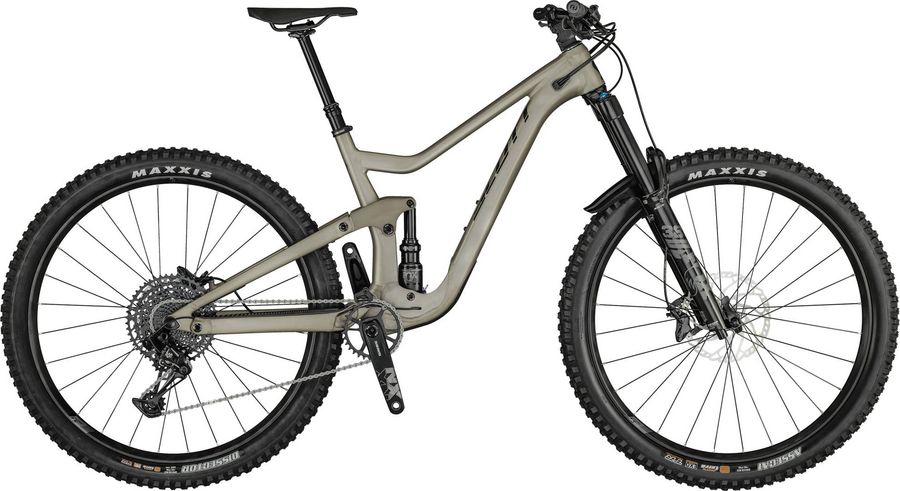

About the Scott Ransom 920 2021
The Scott Ransom 920 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,6 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros XM1.5 / Alloy 6061 integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros Kaslo 2.0 Crmo Rails
|
|
Headset
|
Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
Syncros Duncan 2.0 Dropper Post 31.6mm / S 125mm / M 150mm / L & XL 170mm
|
|
Handlebar
|
Syncros Hixon 1.5 Rise / Alloy 20140D.B. 20mm rise / 8° / 800mm Syncros Pro lock-on grips
|
|
Discs
|
Shimano SM-RT66 / 6 Bolt / 203/F and 180/R
|
|
Brakes
|
Shimano BR-M6120
Hydraulic disc brake
4 piston
|
|
SM-RT56* SM-RT64 SM-RT66 |
|
|
Crankset
|
SRAM NX Eagle DUB Boost 32T
|
|---|---|
|
Shifter
|
SRAM NX Eagle Trigger
|
|
Chain guide
|
SCOTT Chainguide
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM SX PG1210
|
|
Frame
|
Ransom Alloy SL 6011 Custom butted / VLK Virtual 4 Link kinematic 27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo-BB adj. TBC Trunnion box construction / Boost 12x148mm
|
|---|---|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Front suspension
|
Fox 38 Float Performance
|
|
Rims
|
Syncros Revelstoke 2.5 6 Bolt F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28Hr Syncros Axle w/Removable Lever with Tool
|
|---|---|
|
Tires
|
Maxxis Assegai / 2.6" / 120TPI Kevlar Bead / EXO / TR / 3C Maxx Terra
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
420,0
|
420,0
|
440,0
|
440,0
|
470,0
|
470,0
|
500,0
|
500,0
|
|
b
Seat tube angle
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
|
c
Top tube length
|
572,7
|
574,1
|
605,7
|
607,2
|
636,2
|
637,7
|
672,7
|
674,3
|
|
d
Head tube length
|
100,0
|
100,0
|
100,0
|
100,0
|
115,0
|
115,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
65,0º
|
64,5º
|
65,0º
|
64,5º
|
65,0º
|
64,5º
|
65,0º
|
64,5º
|
|
f
Rake
|
51,0
|
52,0
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
112,3
|
122,5
|
112,3
|
122,5
|
112,3
|
122,5
|
112,3
|
122,5
|
|
h
Wheelbase
|
1184,4
|
1185,9
|
1217,4
|
1218,9
|
1250,8
|
1252,2
|
1290,1
|
1291,5
|
|
i
Chainstay length
|
439,0
|
440,9
|
439,0
|
440,9
|
439,0
|
440,9
|
439,0
|
440,9
|
|
j
Bottom bracket drop
|
15,0
|
22,0
|
15,0
|
22,0
|
15,0
|
22,0
|
15,0
|
22,0
|
|
k
Stack height
|
612,8
|
616,6
|
612,8
|
616,6
|
626,4
|
630,6
|
640,0
|
644,3
|
|
l
Reach
|
415,0
|
409,3
|
448,0
|
442,5
|
475,0
|
469,5
|
508,0
|
502,5
|
|
m
Standover height
|
736,9
|
747,6
|
739,5
|
749,3
|
754,6
|
763,9
|
770,4
|
779,5
|
|
x
Bottom bracket height
|
346,5
|
353,5
|
346,5
|
353,5
|
346,5
|
353,5
|
346,5
|
353,5
|
|
y
Front center
|
746,0
|
746,0
|
779,0
|
779,0
|
812,0
|
812,0
|
851,0
|
851,0
|
