Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,1 kg
Front travel
170mm
Rear travel
170mm

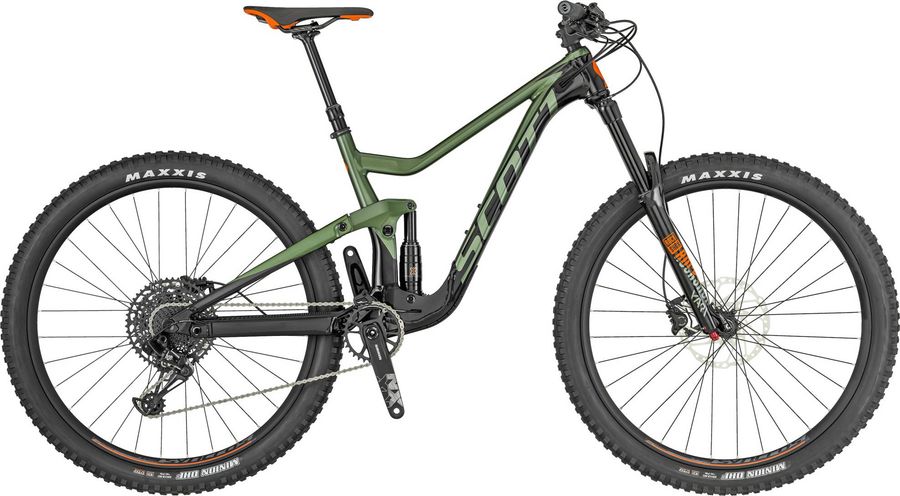

About the Scott Ransom 930 2019
The Scott Ransom 930 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,1 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros XM1.5 / Alloy 6061 / 31.8mm / 0° / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros XM 2.5 / Steel Rails
|
|
Headset
|
Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
Syncros Dropper 2.0 / Remote 31.6mm / S 125mm / M & L & XL 150mm
|
|
Handlebar
|
Syncros Hixon 2.0 Rise / Alloy 60610D.B. 20mm rise / 8° / 780mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano BR-MT500
Hydraulic disc brake
2 piston
|
|
SM-RT56* |
|
|
Crankset
|
SRAM NX Eagle DUB Boos 32T
|
|---|---|
|
Shifter
|
SRAM NX Eagle Trigger
|
|
Chain guide
|
SCOTT custom
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Ransom Alloy SL 6011 custom butted / VLK Virtual 4 Link kinematic 27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo -BB adj. TBC Trunnion box construction / Boost 12x148mm
|
|---|---|
|
Rear suspension
|
X-Fusion NUDE Trunnion
|
|
Front suspension
|
RockShox Yari RL
|
|
Rims
|
Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
|
|---|---|
|
Tires
|
Front : Maxxis Minion DHF / 2.6" / 60TPI Kevlar Bead / EXO / TR / Dual / Rear : Maxxis Minion DHF / 2.6" / 60TPI Kevlar Bead EXO / TR / Dual
|
|
Spokes
|
Stainless Black 15G / 1.8mm
|
|
Rear hub
|
Formula CL148S / Boost 12x148mm
|
|
Front hub
|
Formula CL811 / 15x110mm
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
420,0
|
420,0
|
440,0
|
440,0
|
470,0
|
470,0
|
500,0
|
500,0
|
|
b
Seat tube angle
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
|
c
Top tube length
|
572,7
|
574,1
|
605,7
|
607,2
|
636,2
|
637,7
|
672,7
|
674,3
|
|
d
Head tube length
|
100,0
|
100,0
|
100,0
|
100,0
|
115,0
|
115,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
65,0º
|
64,5º
|
65,0º
|
64,5º
|
65,0º
|
64,5º
|
65,0º
|
64,5º
|
|
f
Rake
|
51,0
|
52,0
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
112,3
|
122,5
|
112,3
|
122,5
|
112,3
|
122,5
|
112,3
|
122,5
|
|
h
Wheelbase
|
1184,4
|
1185,9
|
1217,4
|
1218,9
|
1250,8
|
1252,2
|
1290,1
|
1291,5
|
|
i
Chainstay length
|
439,0
|
440,9
|
439,0
|
440,9
|
439,0
|
440,9
|
439,0
|
440,9
|
|
j
Bottom bracket drop
|
15,0
|
22,0
|
15,0
|
22,0
|
15,0
|
22,0
|
15,0
|
22,0
|
|
k
Stack height
|
612,8
|
616,6
|
612,8
|
616,6
|
626,4
|
630,6
|
640,0
|
644,3
|
|
l
Reach
|
415,0
|
409,3
|
448,0
|
442,5
|
475,0
|
469,5
|
508,0
|
502,5
|
|
m
Standover height
|
736,9
|
747,6
|
739,5
|
749,3
|
754,6
|
763,9
|
770,4
|
779,5
|
|
x
Bottom bracket height
|
346,5
|
353,5
|
346,5
|
353,5
|
346,5
|
353,5
|
346,5
|
353,5
|
|
y
Front center
|
746,0
|
746,0
|
779,0
|
779,0
|
812,0
|
812,0
|
851,0
|
851,0
|
