Scott Roxter 26 2021
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
12,9 kg
Front travel
80mm

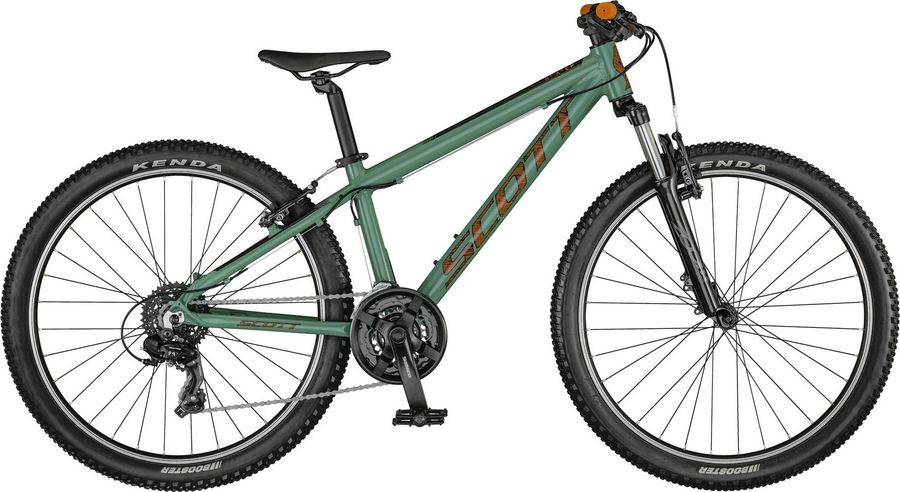

About the Scott Roxter 26 2021
The Scott Roxter 26 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain. The bike weighs approximately 12,9 kg.
Specifications
|
Pedals
|
Feimin FP-803 / w/Reflector
|
|---|
|
Steam
|
HL TDS-C342 / 10° / 31.8 / Black
|
|---|---|
|
Brakes
|
Lee-Chi TX-119L Kids specific
|
|
Saddle
|
Syncros 3.0
|
|
Headset
|
Feimin FP-H807, 1 1/8" Semi Int.
|
|
Seatpost
|
Alloy / 31.6mm / 350mm
|
|
Handlebar
|
HL MTB-AL-312BT / 640mm / black / 12mm rise Syncros Youth 115
|
|
Brake lever
|
Tektro TS325A
|
|
Crankset
|
Shimano FC-TY301 42x34x24 w/CG
|
|---|---|
|
Shifter
|
Shimano ST-EF 41 / EZ-fire plus
|
|
Bottom bracket
|
Feimin / BB68 / cartridge / square taper
|
|
Front derailleur
|
FD-TY500-TS6 / 34.9mm
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Sunrace 7-speed
|
|
Front suspension
|
HL Zoom 565 80mm travel
|
|---|---|
|
Frame
|
Roxter 26" series Alloy 6061 / Performance geometry / V-Brake
|
|
Rims
|
Syncros X-18 GSW / 32H / black
|
|---|---|
|
Tires
|
Kenda K1227 Booster / 26x2.4" / 30TPI
|
|
Spokes
|
15 G / stainless / black
|
|
Rear hub
|
Shimano FH-TY500 / QR
|
|
Front hub
|
Formula FM-21 -F / QR
|
Geometry
| Size | XS | SM | MD |
|---|---|---|---|
|
a
Seat tube length
|
350,0
|
390,0
|
440,0
|
|
b
Seat tube angle
|
74,5º
|
74,0º
|
73,5º
|
|
c
Top tube length
|
546,0
|
556,0
|
571,0
|
|
d
Head tube length
|
105,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
69,5º
|
70,0º
|
70,5º
|
|
f
Rake
|
39,0
|
39,0
|
40,0
|
|
g
Trail
|
87,0
|
83,0
|
79,0
|
|
h
Wheelbase
|
1056,0
|
1056,0
|
1062,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
32,0
|
32,0
|
32,0
|
|
k
Stack height
|
560,4
|
571,9
|
588,1
|
|
l
Reach
|
390,9
|
392,3
|
397,1
|
|
m
Standover height
|
709,7
|
739,7
|
776,5
|
|
x
Bottom bracket height
|
307,0
|
307,0
|
307,0
|
|
y
Front center
|
630,0
|
630,0
|
636,0
|
