Scott Roxter 26 disc 2020
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
13,4 kg
Front travel
100mm

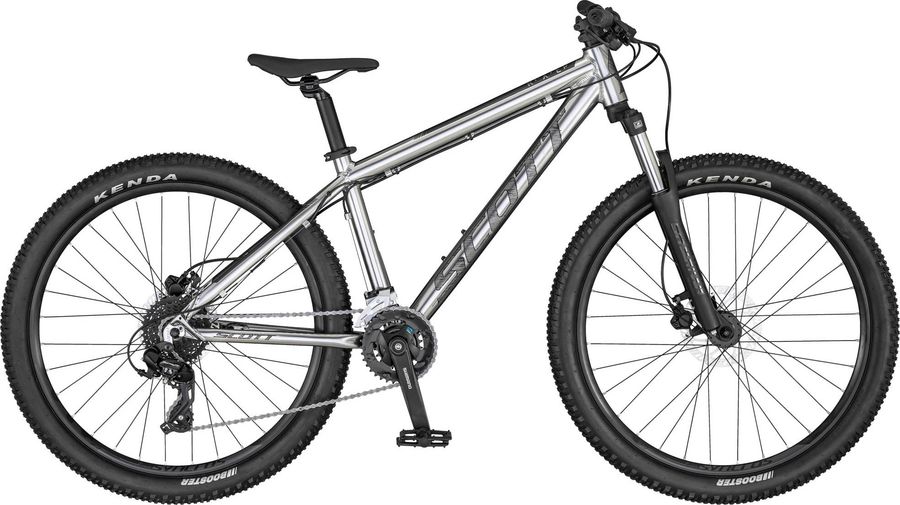

About the Scott Roxter 26 disc 2020
The Scott Roxter 26 disc 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 13,4 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Feimin FP-803 / w/Reflector
|
|---|
|
Steam
|
HL TDS-C342 / 10° / 31.8 / Black
|
|---|---|
|
Saddle
|
Syncros 3.0
|
|
Headset
|
Feimin FP-H807, 1 1/8" Semi Int.
|
|
Seatpost
|
Alloy / 31.6mm / 350mm
|
|
Handlebar
|
HL MTB-AL-312BT / 640mm / black / 12mm rise Syncros Pro
|
|
Brake lever
|
Tektro HD-M276
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Shimano FC-M315-2 36-22T w/o CG
|
|---|---|
|
Shifter
|
Shimano SL-M315 R-fire plus
|
|
Bottom bracket
|
Feimin / BB68 / cartridge / square taper
|
|
Front derailleur
|
Shimano FD-M315-TS / 34.9mm
|
|
Cassette
|
Sunrace 8-speed
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Chain
|
KMC Z8
|
|
Frame
|
Roxter 26" series Alloy 6061 / Performance geometry
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
Syncros X-20 Disc / 32H / black
|
|---|---|
|
Tires
|
Kenda K1227 Booster / 26x2.4" / 30TPI
|
|
Spokes
|
15 G / stainless / black
|
|
Rear hub
|
Formula DC-25-8-R / QR disc
|
|
Front hub
|
Formula DC-19-F / QR disc
|
Geometry
| Size | XS | SM | MD |
|---|---|---|---|
|
a
Seat tube length
|
350,0
|
390,0
|
440,0
|
|
b
Seat tube angle
|
74,5º
|
74,0º
|
73,5º
|
|
c
Top tube length
|
546,0
|
556,0
|
571,0
|
|
d
Head tube length
|
105,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
69,5º
|
70,0º
|
70,5º
|
|
f
Rake
|
39,0
|
39,0
|
40,0
|
|
g
Trail
|
87,0
|
83,0
|
79,0
|
|
h
Wheelbase
|
1056,0
|
1056,0
|
1062,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
32,0
|
32,0
|
32,0
|
|
k
Stack height
|
560,4
|
571,9
|
588,1
|
|
l
Reach
|
390,9
|
392,3
|
397,1
|
|
m
Standover height
|
709,7
|
739,7
|
776,5
|
|
x
Bottom bracket height
|
307,0
|
307,0
|
307,0
|
|
y
Front center
|
630,0
|
630,0
|
636,0
|
