Scott Scale 710 2018

MTB Trail
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
12,2 kg
Front travel
120mm

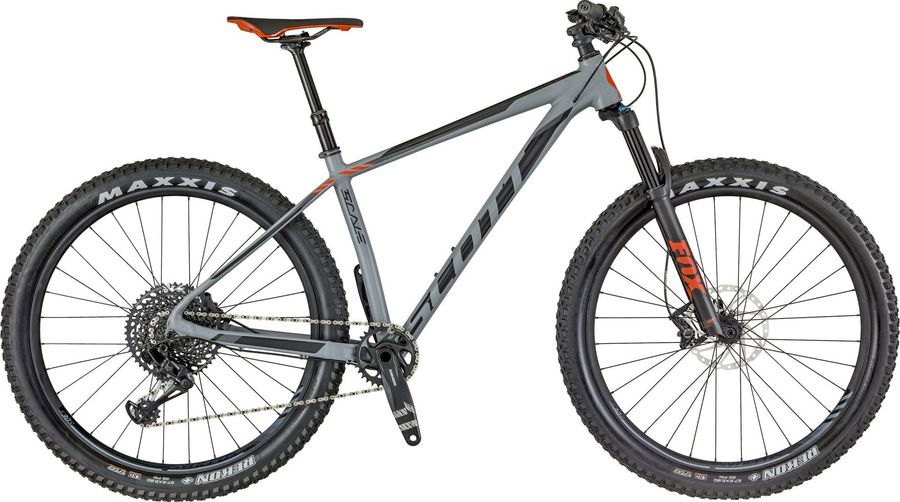

Scott Scale 710 2018

About the Scott Scale 710 2018

The Scott Scale 710 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 12,2 kg.

Features

The Scott Scale 710 2018 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
Saddle
Syncros XM2.0 / CROM rails
Headset
Syncros Pro Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seatpost
Syncros Dropper 2.0 Remote 31.6mm / 120mm
Handlebar
Syncros FL1.5 mini Riser / Alloy 7050D.B. 12mm rise / 9° / 740mm Syncros Pro lock-on grips
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
SRAM X1 1000 Eagle GXP Boost PF QF 168 / 32T
Shifter
SRAM GX Trigger
Bottom bracket
SRAM GXP PF integrated / shell 41x89.5mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Scale 700 Alloy Custom Butted Superlight Tubing / Tapered HT BB92 / 3.0" Tire clearance / Full Internal Cable Routing IDS SL dropouts for 12x148mm Boost
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
Tires
Maxxis Rekon / 2.80x27.5 / 60TPI Kevlar Bead TR Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Formula CL14811 / Boost 12x148mm / XD
Front hub
Formula CL811 / 15x110mm

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
480,0
530,0
b
Seat tube angle
72,8º
72,8º
72,8º
72,8º
c
Top tube length
584,0
609,0
634,0
659,0
d
Head tube length
100,0
105,0
115,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
40,0
40,0
39,0
39,0
g
Trail
111,0
111,0
112,0
112,0
h
Wheelbase
1115,0
1140,4
1166,3
1192,2
i
Chainstay length
446,0
446,0
446,0
446,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
614,0
619,0
628,0
638,0
l
Reach
396,0
419,0
442,0
464,0
m
Standover height
787,0
813,0
836,0
864,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
675,0
700,0
726,0
752,0
