Scott Scale 710 2021

MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
11,7 kg
Front travel
100mm
Scott Scale 710 2021

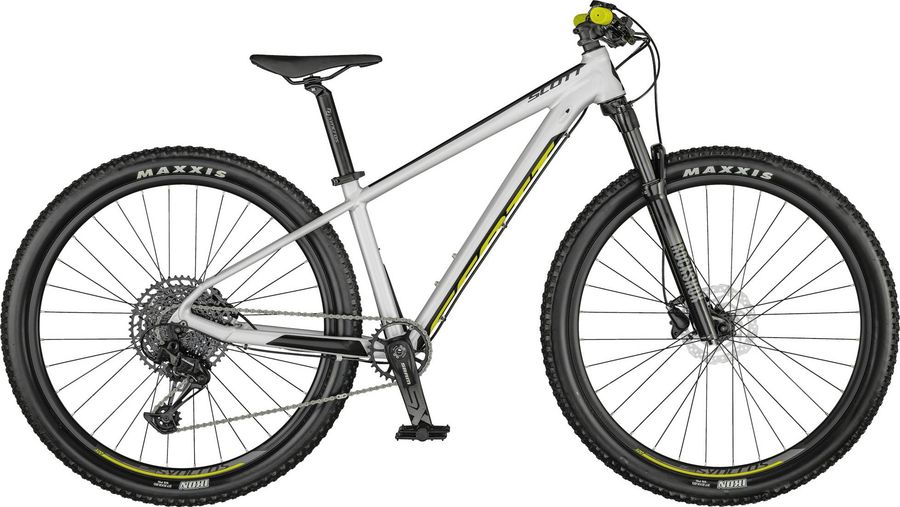

About the Scott Scale 710 2021

The Scott Scale 710 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes, tapered head tube, and remote lockout. The bike weighs approximately 11,7 kg.

Features

The Scott Scale 710 2021 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Pedals
VP-536 / PP Body / w/Reflector
Components
Steam
Syncros 6061 Alloy Oversized 31.8mm / 1 1/8" / 7° angle
Saddle
Syncros Belcarra 2.5
Headset
Syncros OE Press Fit / Tapered 1.5"-1 1/8" OD 50/61mm / ID 44/55mm
Seatpost
Syncros / 31.6x400mm
Handlebar
Syncros T-Bar / Alloy 6061 T shape Flat / 9° / 680mm Syncros Youth 115
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle DUB / 30T
Shifter
SRAM SX Eagle Trigger
Bottom bracket
SRAM DUB PF integrated / shell 41x92mm
Chain
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM SX PG1210
Frameset
Frame
Scale 27.5" Alloy 6061 Custom Butted Tubing QR 5x135mm / Tapered Headtube / BB92 Internal Shifting cable Routing / replaceable hanger
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Syncros / Disc / 32H
Tires
Maxxis Ikon / 27.5x2.2" / 60TPI
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Formula CL52 / QR
Front hub
Formula CL51 / QR

Geometry

Size XS SM
a
Seat tube length
355,0
390,0
b
Seat tube angle
73,0º
73,6º
c
Top tube length
566,0
581,0
d
Head tube length
100,0
100,0
e
Head tube angle
69,5º
69,5º
f
Rake
-
-
g
Trail
-
-
h
Wheelbase
1070,3
1098,1
i
Chainstay length
436,0
446,0
j
Bottom bracket drop
58,0
58,0
k
Stack height
-
-
l
Reach
-
-
m
Standover height
741,0
754,0
x
Bottom bracket height
312,0
312,0
y
Front center
641,0
658,0
