Scott Scale 710 Plus 2017

MTB Trail
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
11,9 kg
Front travel
120mm

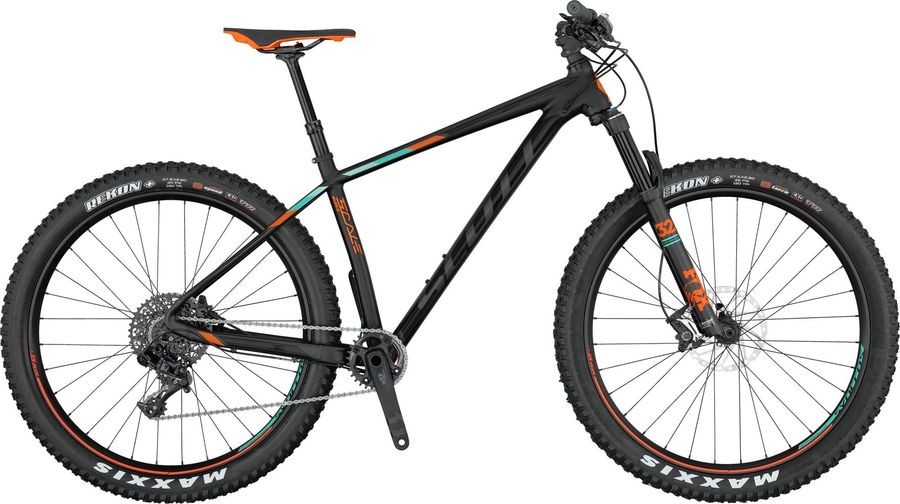

Scott Scale 710 Plus 2017

About the Scott Scale 710 Plus 2017

The Scott Scale 710 Plus 2017 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 11,9 kg.

Features

The Scott Scale 710 Plus 2017 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
Saddle
Syncros XM2.0 / CROM rails
Headset
Syncros Pro Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seatpost
Syncros Dropper 2.0 / YSP12 ICR / Remote 31.6mm / 120mm
Handlebar
Syncros FL1.5 mini Riser / Alloy 7050D.B. 12mm rise / 9° / 740mm Syncros Pro lock-on grips
Brakes
Shimano Deore BR-M615
Drivetrain
Crankset
SRAM Custom GX1 / Boost PF GXP / 30T
Shifter
SRAM GX1 Trigger
Bottom bracket
SRAM GXP PF integrated / shell 41x89.5mm
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Scale 700 PLUS Alloy Custom Butted Superlight Tubing / Tapered HT BB92 / 3.0" Tire clearance / Full Internal Cable Routing IDS SL dropouts for 148x12mm Boost
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
Syncros X-35 / 27.5" / Tubeless Ready 35mm wide / 32H / Sleeve Joint
Tires
Maxxis Rekon / 2.80 x 27.5 / 120TPI Kevlar Bead EXO / TR Tubeless ready Front: 3C Maxx Terra / Rear: 3C Maxx Speed
Spokes
DT Swiss Champion Black 1.8mm
Rear hub
Syncros CL14811 / Boost 148x12mm RWS axle / XD / made by Formula
Front hub
Syncros CL811 / 15x110mm made by Formula

Geometry

Size IT Steuerwinkel undefined angolo sterzo 66.5cm 66.5cm
a
Seat tube length
390,0
440,0
480,0
530,0
b
Seat tube angle
72,8º
72,8º
72,8º
72,8º
c
Top tube length
577,0
602,0
627,0
652,0
d
Head tube length
100,0
105,0
115,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
40,0
40,0
39,0
39,0
g
Trail
111,0
111,0
112,0
112,0
h
Wheelbase
1108,0
1133,4
1159,3
1185,2
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
607,0
612,0
621,0
631,0
l
Reach
389,0
412,0
435,0
457,0
m
Standover height
780,0
806,0
829,0
857,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
675,0
700,0
726,0
752,0
