BikeWise

Scott Scale 730 Plus 2017

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13 kg
Front travel
120mm

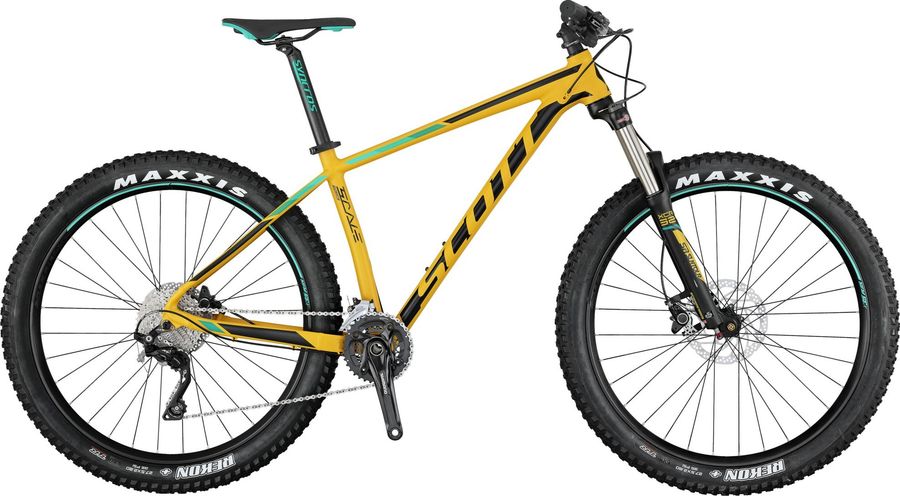

Scott Scale 730 Plus 2017

About the Scott Scale 730 Plus 2017

The Scott Scale 730 Plus 2017 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 13 kg.

Features

The Scott Scale 730 Plus 2017 has 7 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros 6061 Alloy oversize 31.8mm / 1 1/8" / 6° angle
Saddle
Syncros XM2.5
Headset
Syncros OE Press Fit / Reduce 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seatpost
Syncros / 31.6x400mm
Handlebar
Syncros FL2.0 mini Riser / Alloy 6061D.B. 12mm rise / 9° / 740mm
Brakes
Shimano Altus BR-M365
Drivetrain
Crankset
Shimano FC-M627-B2 / 2-piece Design 36x22 T
Shifter
Shimano Deore SL-M610 / Rapidfire plus 2 way release / w/gear indicator
Bottom bracket
Shimano BB-MT500-PA / shell 41x89.5mm
Front derailleur
Shimano Deore FD-M618-E
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Rear derailleur
Shimano Deore XT RD-M781 238 g SGS 10s
Average weight (g)
238
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M781-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
Scale 700 PLUS Alloy Custom Butted Superlight Tubing / Tapered HT BB92 / 3.0" Tire clearance / Full Internal Cable Routing IDS SL DM dropouts for 148x12mm Boost
Front suspension
SR Suntour XCR-RL
Wheels
Rims
Syncros X-35 / 27.5" / Tubeless Ready 35mm wide / 32H / Sleeve Joint
Tires
Maxxis Rekon / 2.80x27.5 / 60TPI Kevlar Bead TR Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Shimano FH-M618-B CL / Boost 12x148mm RWS axle
Front hub
Shimano HB-M618-B CL / 15x110mm

Geometry

Size IT Steuerwinkel undefined angolo sterzo 66.5cm 66.5cm
a
Seat tube length
390,0
440,0
480,0
530,0
b
Seat tube angle
72,8º
72,8º
72,8º
72,8º
c
Top tube length
577,0
602,0
627,0
652,0
d
Head tube length
100,0
105,0
115,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
40,0
40,0
39,0
39,0
g
Trail
111,0
111,0
112,0
112,0
h
Wheelbase
1108,0
1133,4
1159,3
1185,2
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
607,0
612,0
621,0
631,0
l
Reach
389,0
412,0
435,0
457,0
m
Standover height
780,0
806,0
829,0
857,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
675,0
700,0
726,0
752,0
