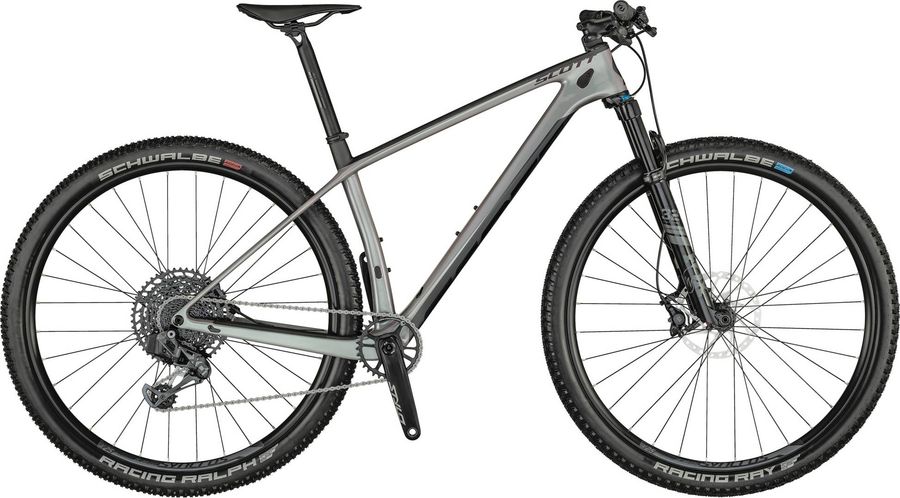

Scott Scale 910 AXS 2021
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,9 kg
Front travel
100mm
About the Scott Scale 910 AXS 2021
The Scott Scale 910 AXS 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 10,9 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL1.5 6° / integrated Spacer & Top Cap 2014 Alloy / 31.8mm / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros Belcarra Regular 2.0 CRMO rails
|
|
Headset
|
Syncros Pro Drop in / Tapered 1.5"-1 1/8" Bearing diameter size 42mm and 52mm
|
|
Seatpost
|
Syncros Duncan 1.5 / 10mm offset 31.6x400mm
|
|
Handlebar
|
Syncros Fraser 1.5 / Alloy 7050 D.B. T shape Flat / 9° / 740mm Syncros Pro lock-on grips
|
|
Discs
|
Shimano SM-RT64 CL / 180/F and 160/R
|
|
Brakes
|
Shimano SLX BR-M7100
425 (BL-M7100) g
Hydraulic disc brake
2 piston
|
|
|
|
|
Crankset
|
SRAM Stylo Eagle DUB Boost 32T
|
|---|---|
|
Shifter
|
SRAM Eagle AXS Controller
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Rear derailleur
|
SRAM X01 Eagle AXS
12s
|
|
|
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Scale 3 Carbon / IMP Technology / HMF BB92 / SW DM dropouts for Boost 12x148mm SDS2 advanced Shock & Standing Damping System ICCR Cable routing
|
|---|---|
|
Front suspension
|
Fox 32 Float Performance SC
|
|
Rims
|
Syncros X-25 / 32H / 25mm Tubeless ready
|
|---|---|
|
Tires
|
Schwalbe Racing Ray 29x2.25" / EVO Folding / Addix Speed grip / Snake Skin / TLE Tubeless ready
|
|
Spokes
|
Stainless Black 15G / 1.8mm
|
|
Rear hub
|
Formula CL-148S / Boost 12x148mm
|
|
Front hub
|
Formula CL-811 / 15x110mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
440,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
73,6º
|
73,6º
|
73,6º
|
73,6º
|
|
c
Top tube length
|
582,0
|
607,0
|
632,0
|
657,0
|
|
d
Head tube length
|
95,0
|
100,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
83,9
|
83,9
|
83,9
|
83,9
|
|
h
Wheelbase
|
1083,4
|
1108,8
|
1134,9
|
1160,7
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
606,0
|
610,6
|
624,7
|
634,1
|
|
l
Reach
|
405,7
|
429,3
|
450,2
|
472,5
|
|
m
Standover height
|
750,0
|
781,0
|
807,0
|
842,1
|
|
x
Bottom bracket height
|
312,0
|
312,0
|
312,0
|
312,0
|
|
y
Front center
|
658,0
|
683,0
|
709,0
|
735,0
|
