Scott Scale 920 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11,3 kg
Front travel
100mm

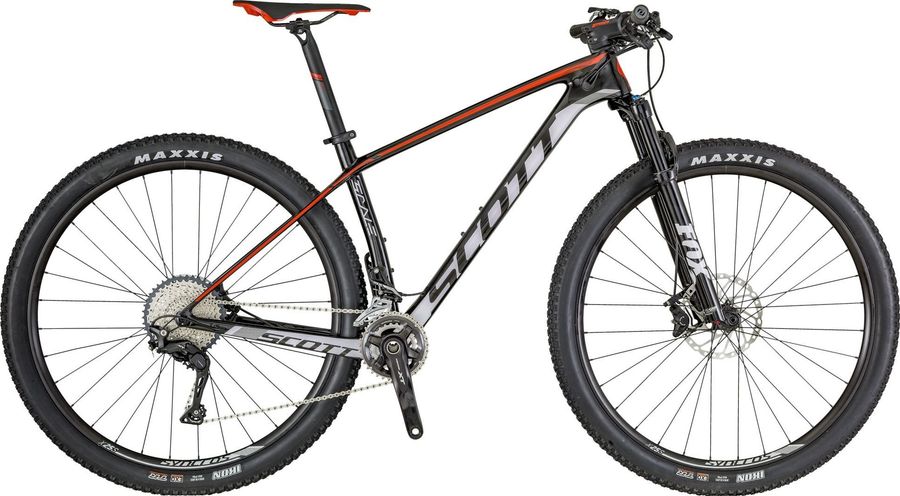

Scott Scale 920 2018

About the Scott Scale 920 2018

The Scott Scale 920 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 11,3 kg.

Features

The Scott Scale 920 2018 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL2.0 6° / integrated Spacer & Top Cup 6061 Alloy / 31.8mm / 1 1/8"
Saddle
Syncros XR2.0 / CROM rails
Headset
Syncros Pro Drop in / Tapered 1.5" - 1 1/8" bearing diameter size 42mm and 52mm
Seatpost
Syncros FL2.0 / 10mm offset 31.6 x 400mm
Handlebar
Syncros FL2.0 T-Bar / Alloy 6061 T shape Flat / 9° / 720mm Syncros Pro lock-on grips
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Shimano XT FC-M8000-B2 / Hollowtech 2 34x24 T
Shifter
Shimano SLX SL-M7000-11-I / Rapidfire Plus 2 way release / Ispec 2 clamp
Bottom bracket
Shimano BB-MT500-PA / shell 41x92mm
Front derailleur
Shimano SLX FD-M7020-11D / side swing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Scale 3 Carbon / IMP technology / MF BB92 / SW DM dropouts for Boost 12x148mm SDS2 advanced Shock & Standing Damping System ICCR Cable routing
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
Syncros X-25S / 32H / 25mm / Sleeve Joint Tubeless ready
Tires
Maxxis Ikon / 2.2 / 60TPI Kevlar Bead TR Tubeless Ready / Dual compound
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Shimano FH-M6010-B CL / Boost 12x148mm
Front hub
Shimano HB-M6010-B CL / 15x110mm

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
480,0
530,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
c
Top tube length
582,0
607,0
632,0
657,0
d
Head tube length
95,0
100,0
115,0
125,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
83,9
83,9
83,9
83,9
h
Wheelbase
1083,4
1108,8
1134,9
1160,7
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
k
Stack height
606,0
610,6
624,7
634,1
l
Reach
405,7
429,3
450,2
472,5
m
Standover height
750,0
781,0
807,0
842,1
x
Bottom bracket height
312,0
312,0
312,0
312,0
y
Front center
658,0
683,0
709,0
735,0
