BikeWise

Scott Scale 920 2019

MTB Cross Country
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,9 kg
Front travel
100mm

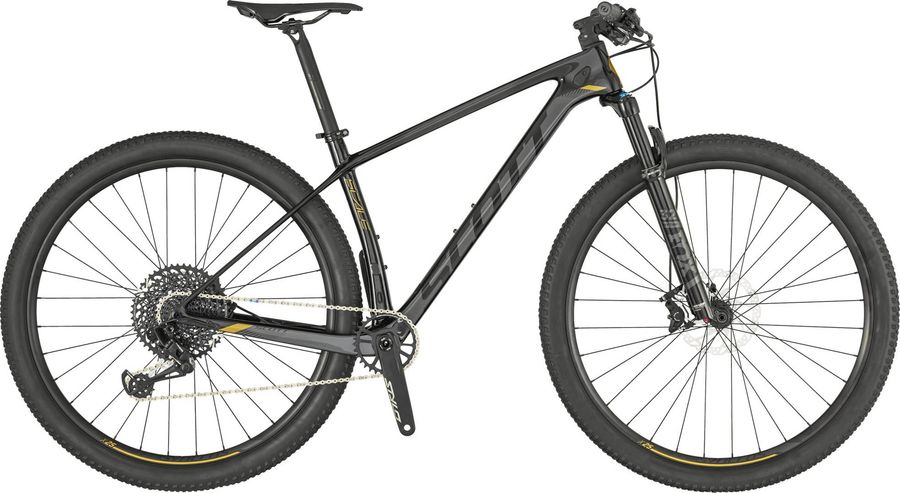

Scott Scale 920 2019

About the Scott Scale 920 2019

The Scott Scale 920 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 10,9 kg.

Features

The Scott Scale 920 2019 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL2.0 6° / integrated Spacer & Top Cup 6061 Alloy / 31.8mm / 1 1/8"
Saddle
Syncros XR2.0 / CROM rails
Headset
Syncros Pro Drop in / Tapered 1.5"-1 1/8" bearing diameter size 42mm and 52mm
Seatpost
Syncros FL2.0 / 10mm offset 31.6x400mm
Handlebar
Syncros FL2.0 T-Bar / Alloy 6061 T shape Flat / 9° / 720mm Syncros Pro lock-on grips
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Stylo Eagle DUB Boost 32T
Shifter
SRAM NX Eagle Trigger
Bottom bracket
SRAM DUB PF integrated / shell 41x92mm
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Scale 3 Carbon / IMP technology / HMF BB92 / SW DM dropouts for Boost 12x148mm SDS2 advanced Shock & Standing Damping System ICCR Cable routing
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
Syncros X-25 / 32H / 25mm Tubeless ready
Tires
Maxxis Rekon Race / 2.25" / 60TPI Kevlar Bead TR Tubeless Ready / EXO
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Formula CL14811 / Boost 12x148mm / XD
Front hub
Formula CL811 / 15x110mm

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
480,0
530,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
c
Top tube length
582,0
607,0
632,0
657,0
d
Head tube length
95,0
100,0
115,0
125,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
83,9
83,9
83,9
83,9
h
Wheelbase
1083,4
1108,8
1134,9
1160,7
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
k
Stack height
606,0
610,6
624,7
634,1
l
Reach
405,7
429,3
450,2
472,5
m
Standover height
750,0
781,0
807,0
842,1
x
Bottom bracket height
312,0
312,0
312,0
312,0
y
Front center
658,0
683,0
709,0
735,0
