Scott Scale 920 2020
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,9 kg
Front travel
100mm
About the Scott Scale 920 2020

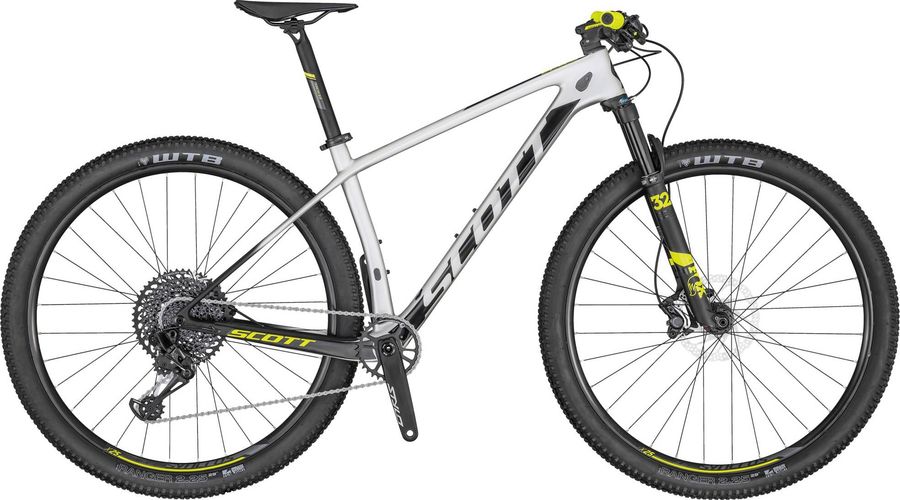

The Scott Scale 920 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 10,9 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL2.0 6° / integrated Spacer & Top Cap 6061 Alloy / 31.8mm / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros Belcarra Regular 2.0 CRMO rails
|
|
Headset
|
Syncros Pro Drop in / Tapered 1.5"-1 1/8" Bearing diameter size 42mm and 52mm
|
|
Seatpost
|
Syncros Duncan 2.0 / 10mm offset 31.6x400mm
|
|
Handlebar
|
Syncros Fraser 2.0 / Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano Deore BR-M6000
Hydraulic disc brake
2 piston
|
|
G03S Resin J03A Resin ** BL-MT501 BL-T6000 SM-RT56**** SM-RT64 SM-RT66 |
|
|
Crankset
|
SRAM Stylo Eagle DUB Boost 32T
|
|---|---|
|
Shifter
|
SRAM NX Eagle Trigger
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Scale 3 Carbon / IMP technology / HMF BB92 / SW DM dropouts for Boost 12x148mm SDS2 advanced Shock & Standing Damping System ICCR Cable routing
|
|---|---|
|
Front suspension
|
Fox 32 Float Performance SC
|
|
Rims
|
Syncros X-25 / 32H / 25mm Tubeless ready
|
|---|---|
|
Tires
|
WTB Ranger / 2.25" / 60 TPI / Aramid Bead / TCS Light Fast Rolling / Tubeless Ready
|
|
Spokes
|
Stainless Black 15G / 1.8mm
|
|
Rear hub
|
Formula DHT-1481 / 6 Bolt / Boost 12x148mm / XD
|
|
Front hub
|
Formula SCT-1905 / 6 Bolt / 15x110mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
440,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
73,6º
|
73,6º
|
73,6º
|
73,6º
|
|
c
Top tube length
|
582,0
|
607,0
|
632,0
|
657,0
|
|
d
Head tube length
|
95,0
|
100,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
83,9
|
83,9
|
83,9
|
83,9
|
|
h
Wheelbase
|
1083,4
|
1108,8
|
1134,9
|
1160,7
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
606,0
|
610,6
|
624,7
|
634,1
|
|
l
Reach
|
405,7
|
429,3
|
450,2
|
472,5
|
|
m
Standover height
|
750,0
|
781,0
|
807,0
|
842,1
|
|
x
Bottom bracket height
|
312,0
|
312,0
|
312,0
|
312,0
|
|
y
Front center
|
658,0
|
683,0
|
709,0
|
735,0
|
