BikeWise

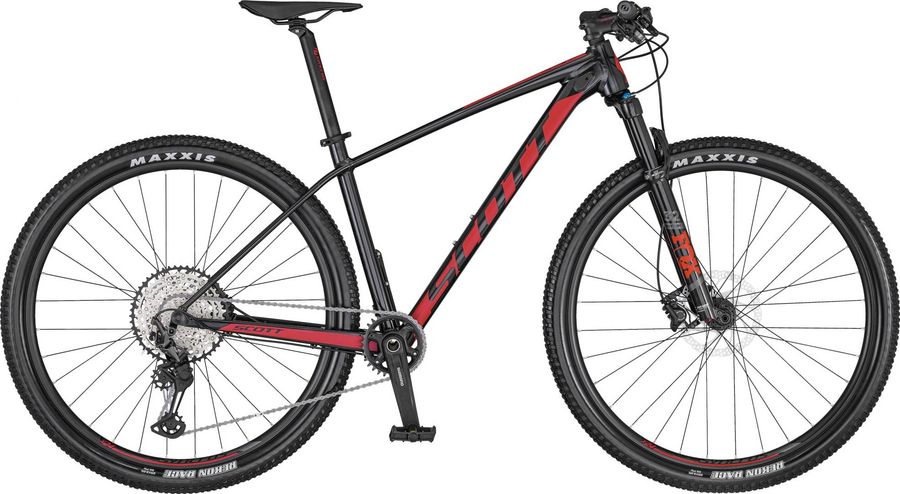

Scott Scale 950 2020

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
11,6 kg
Front travel
100mm
Scott Scale 950 2020

About the Scott Scale 950 2020

The Scott Scale 950 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 11,6 kg.

Features

The Scott Scale 950 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Pedals
Femin FP873ZU
Components
Steam
Syncros Alloy 6061 oversized 31.8mm / 1 1/8" / 6° angle
Saddle
Syncros Belcarra Regular 2.0 CRMO rails
Headset
Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
Seatpost
Syncros / 31.6x400mm
Handlebar
Syncros Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano FC-MT610 32T
Shifter
Shimano SLX SL-M7100-R / Rapidfire Plus
Bottom bracket
Shimano BB-MT500 / shell 41x92mm
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Scale Alloy 6061 Custom Butted Tubing Boost 12x148mm / Tapered HT / BB92 Internal Cable Routing / replaceable hanger
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
Syncros / 32H
Tires
Maxxis Rekon Race / 2.25" / 60TPI Kevlar Bead
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Formula DHT-148 / 6 Bolt / Boost 12x148mm / MS
Front hub
Formula SCT-1905 / 6 Bolt / 15x110mm

Geometry

Size SM MD LG XL XXL
a
Seat tube length
390,0
440,0
480,0
530,0
580,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
73,6º
c
Top tube length
582,0
607,0
627,0
647,0
667,0
d
Head tube length
100,0
100,0
115,0
125,0
135,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
69,5º
f
Rake
51,0
52,0
51,0
51,0
-24,0
g
Trail
86,0
85,0
86,0
86,0
166,0
h
Wheelbase
1099,1
1125,0
1145,2
1166,0
1127,0
i
Chainstay length
447,0
447,0
447,0
447,0
447,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
58,0
k
Stack height
612,3
612,3
626,4
635,7
645,1
l
Reach
403,8
428,8
444,7
462,0
499,2
m
Standover height
755,0
783,0
812,0
847,0
881,0
x
Bottom bracket height
312,0
312,0
312,0
312,0
312,0
y
Front center
658,0
684,0
704,0
725,0
686,0
