Scott Scale 960 2018
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,7 kg
Front travel
100mm

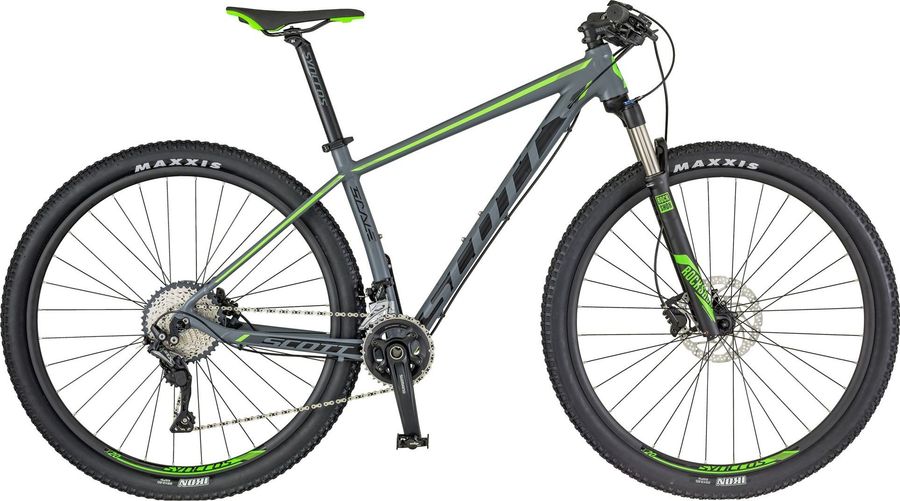

About the Scott Scale 960 2018
The Scott Scale 960 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 22 gears (2x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 12,7 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Pedals
|
Wellgo M-21
|
|---|
|
Steam
|
Syncros 6061 Alloy oversize 31.8mm / 1 1/8" / 6° angle
|
|---|---|
|
Saddle
|
Syncros XR2.5
|
|
Headset
|
Syncros OE Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
|
|
Seatpost
|
Syncros / 31.6x400mm
|
|
Handlebar
|
Syncros T-Bar / Alloy 6061 T shape Flat / 9° / 720mm
|
|
Brakes
|
Shimano Acera BR-M425
|
|
Crankset
|
Shimano FC-MT600-11 36x26 T
|
|---|---|
|
Shifter
|
Shimano SLX SL-M7000-I / Rapidfire Plus 2 way release
|
|
Bottom bracket
|
Shimano BB-MT500-PA / shell 41x89.5mm
|
|
Front derailleur
|
Shimano SLX FD-M7025-H
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-SGS
|
|
Chain
|
KMC X11
|
|
Frame
|
Scale Alloy 6061 Custom Butted Tubing Tapered HT / BB92 / Bridgeless Seatstays Internal Cable Routing / replaceable hanger
|
|---|---|
|
Front suspension
|
RockShox Recon Silver RL
Solo Air
|
|
|
|
|
Rims
|
Syncros X-20 / 32H
|
|---|---|
|
Tires
|
Maxxis Ikon / 2.2 / 60TPI
|
|
Spokes
|
Stainless Black 15G / 1.8mm
|
|
Rear hub
|
Shimano FH-M3050 CL
|
|
Front hub
|
Formula CL51
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
440,0
|
480,0
|
530,0
|
580,0
|
|
b
Seat tube angle
|
73,6º
|
73,6º
|
73,6º
|
73,6º
|
73,6º
|
|
c
Top tube length
|
570,0
|
595,0
|
620,0
|
645,0
|
665,0
|
|
d
Head tube length
|
105,0
|
105,0
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
59,0
|
59,0
|
59,0
|
59,0
|
59,0
|
|
g
Trail
|
85,2
|
85,2
|
85,2
|
85,2
|
85,2
|
|
h
Wheelbase
|
1085,8
|
1110,8
|
1136,5
|
1162,3
|
1183,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
433,0
|
433,0
|
433,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
586,0
|
586,0
|
595,4
|
604,7
|
614,1
|
|
l
Reach
|
389,2
|
414,2
|
436,4
|
458,7
|
475,9
|
|
m
Standover height
|
745,5
|
774,4
|
786,0
|
819,8
|
857,7
|
|
x
Bottom bracket height
|
315,5
|
315,5
|
315,5
|
315,5
|
315,5
|
|
y
Front center
|
659,0
|
684,0
|
710,0
|
735,0
|
756,0
|
