Scott Scale 970 2018

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,9 kg
Front travel
100mm

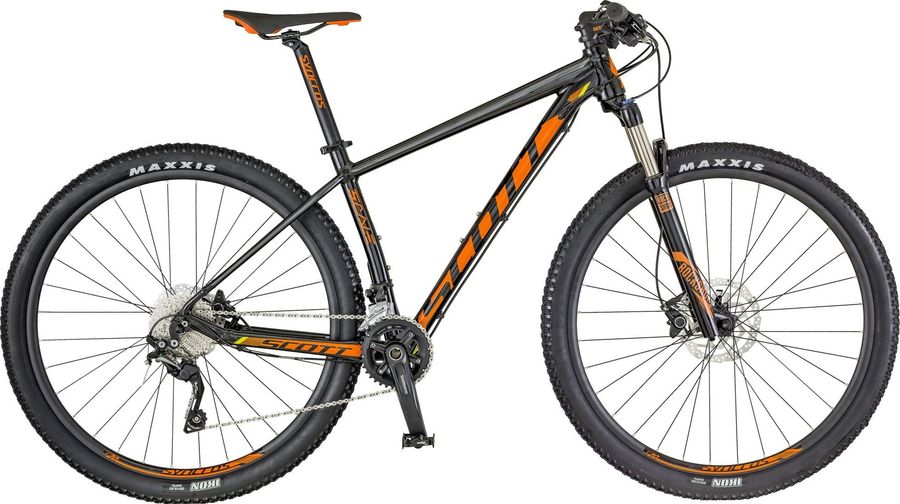

Scott Scale 970 2018

About the Scott Scale 970 2018

The Scott Scale 970 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 20 gears (2x10). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 12,9 kg.

Features

The Scott Scale 970 2018 has 4 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Pedals
Wellgo M-21
Components
Steam
Syncros 6061 Alloy oversize 31.8mm / 1 1/8" / 6° angle
Saddle
Syncros XR2.5
Headset
Syncros OE Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seatpost
Syncros / 31.6x400mm
Handlebar
Syncros T-Bar / Alloy 6061 T shape Flat / 9° / 720mm
Brakes
Shimano Altus BR-M365
Drivetrain
Crankset
Shimano FC-MT500-10 36x26 T
Shifter
Shimano Deore SL-M6000 / Rapidfire plus 2 way release
Bottom bracket
Shimano BB-MT500-PA / shell 41x89.5mm
Front derailleur
Shimano Deore FD-M6025-H / 34.9
Chain
KMC X10
Rear derailleur
Shimano SLX RD-M7000-10-SGS 313 g SGS 10s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M7000-10-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Scale Alloy 6061 Custom Butted Tubing Tapered HT / BB92 / Bridgeless Seatstays Internal Cable Routing / replaceable hanger
Front suspension
RockShox 30 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-30S-TK-A4
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
Syncros X-20 / 32H
Tires
Maxxis Ikon / 2.2 / 60TPI
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Shimano FH-RM35 CL
Front hub
Formula CL51

Geometry

Size SM MD LG XL XXL
a
Seat tube length
395,0
440,0
480,0
530,0
580,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
73,6º
c
Top tube length
570,0
595,0
620,0
645,0
665,0
d
Head tube length
105,0
105,0
115,0
125,0
135,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
69,5º
f
Rake
59,0
59,0
59,0
59,0
59,0
g
Trail
85,2
85,2
85,2
85,2
85,2
h
Wheelbase
1085,8
1110,8
1136,5
1162,3
1183,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
58,0
k
Stack height
586,0
586,0
595,4
604,7
614,1
l
Reach
389,2
414,2
436,4
458,7
475,9
m
Standover height
745,5
774,4
786,0
819,8
857,7
x
Bottom bracket height
315,5
315,5
315,5
315,5
315,5
y
Front center
659,0
684,0
710,0
735,0
756,0
