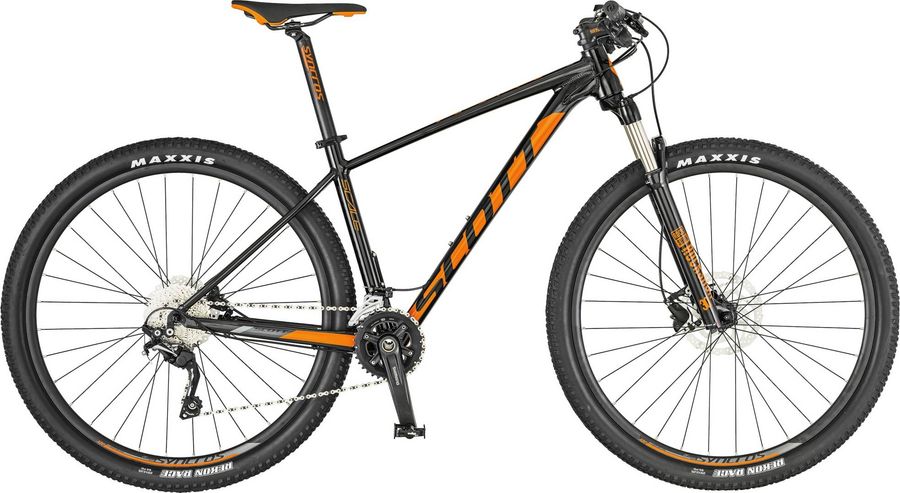

Scott Scale 970 2019
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,9 kg
Front travel
100mm
About the Scott Scale 970 2019
The Scott Scale 970 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 20 gears (2x10). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 12,9 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Remote lockout
More info
Remote lockout
Specifications
|
Pedals
|
Wellgo M-21
|
|---|
|
Steam
|
Syncros 6061 Alloy oversized 31.8mm / 1 1/8" / 6° angle
|
|---|---|
|
Saddle
|
Syncros XR2.5
|
|
Headset
|
Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
Syncros / 31.6x400mm
|
|
Handlebar
|
Syncros T-Bar / Alloy 6061 T shape Flat / 9° / 720mm
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Shimano FC-MT500-B2-10 36x26 T
|
|---|---|
|
Shifter
|
Shimano Deore SL-M6000 / Rapidfire plus 2 way release
|
|
Bottom bracket
|
Shimano BB-MT500-PA / shell 41x89.5mm
|
|
Front derailleur
|
Shimano Deore FD-M6020-E
|
|
Chain
|
KMC X10
|
|
Rear derailleur
|
Shimano SLX RD-M7000-10-SGS
313 g
SGS
10s
|
|
|
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Scale Alloy 6061 Custom Butted Tubing Boost QR 5x141mm / Tapered HT / BB92 Internal Cable Routing / replaceable hanger
|
|---|---|
|
Front suspension
|
RockShox 30 Silver TK
Coil, Solo Air
|
|
|
|
|
Rims
|
Syncros / 32H
|
|---|---|
|
Tires
|
Maxxis Rekon Race / 2.25" / 60TPI
|
|
Spokes
|
Stainless Black 15G / 1.8mm
|
|
Rear hub
|
Shimano FH-MT200-B CL / Boost QR 5x141mm
|
|
Front hub
|
Formula CL51
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
440,0
|
480,0
|
530,0
|
580,0
|
|
b
Seat tube angle
|
73,6º
|
73,6º
|
73,6º
|
73,6º
|
73,6º
|
|
c
Top tube length
|
582,0
|
607,0
|
627,0
|
647,0
|
667,0
|
|
d
Head tube length
|
100,0
|
100,0
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
51,0
|
52,0
|
51,0
|
51,0
|
-24,0
|
|
g
Trail
|
86,0
|
85,0
|
86,0
|
86,0
|
166,0
|
|
h
Wheelbase
|
1099,1
|
1125,0
|
1145,2
|
1166,0
|
1127,0
|
|
i
Chainstay length
|
447,0
|
447,0
|
447,0
|
447,0
|
447,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
612,3
|
612,3
|
626,4
|
635,7
|
645,1
|
|
l
Reach
|
403,8
|
428,8
|
444,7
|
462,0
|
499,2
|
|
m
Standover height
|
755,0
|
783,0
|
812,0
|
847,0
|
881,0
|
|
x
Bottom bracket height
|
312,0
|
312,0
|
312,0
|
312,0
|
312,0
|
|
y
Front center
|
658,0
|
684,0
|
704,0
|
725,0
|
686,0
|
