BikeWise

Scott Scale 980 2018

MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,6 kg
Front travel
100mm

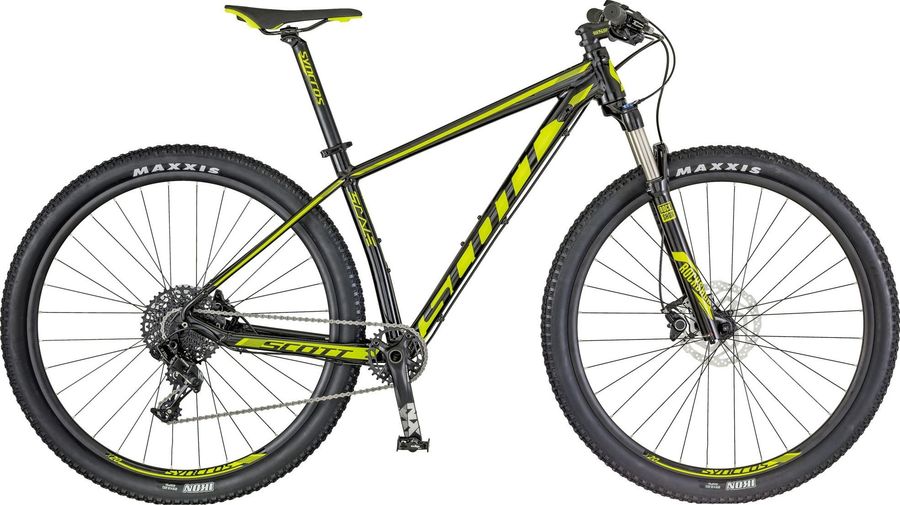

Scott Scale 980 2018

About the Scott Scale 980 2018

The Scott Scale 980 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 12,6 kg.

Features

The Scott Scale 980 2018 has 4 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Pedals
Wellgo M-21
Components
Steam
Syncros 6061 Alloy oversize 31.8mm / 1 1/8" / 6° angle
Saddle
Syncros XR2.5
Headset
Syncros OE Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seatpost
Syncros / 31.6x400mm
Handlebar
Syncros T-Bar / Alloy 6061 T shape Flat / 9° / 720mm
Brakes
Shimano Altus BR-M365
Drivetrain
Crankset
SRAM NX1 GXP PF 30T
Shifter
SRAM NX1 Trigger
Bottom bracket
SRAM GXP PF integrated / shell 41x89.5mm
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Scale Alloy 6061 Custom Butted Tubing Tapered HT / BB92 / Bridgeless Seatstays Internal Cable Routing / replaceable hanger
Front suspension
RockShox 30 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-30S-TK-A4
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
Syncros X-20 / 32H
Tires
Maxxis Ikon / 2.2 / 60TPI
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Shimano FH-RM35 CL
Front hub
Formula CL51

Geometry

Size SM MD LG XL XXL
a
Seat tube length
395,0
440,0
480,0
530,0
580,0
b
Seat tube angle
73,6º
73,6º
73,6º
73,6º
73,6º
c
Top tube length
570,0
595,0
620,0
645,0
665,0
d
Head tube length
105,0
105,0
115,0
125,0
135,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
69,5º
f
Rake
59,0
59,0
59,0
59,0
59,0
g
Trail
85,2
85,2
85,2
85,2
85,2
h
Wheelbase
1085,8
1110,8
1136,5
1162,3
1183,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
58,0
k
Stack height
586,0
586,0
595,4
604,7
614,1
l
Reach
389,2
414,2
436,4
458,7
475,9
m
Standover height
745,5
774,4
786,0
819,8
857,7
x
Bottom bracket height
315,5
315,5
315,5
315,5
315,5
y
Front center
659,0
684,0
710,0
735,0
756,0
