BikeWise

Scott Spark 700 2019

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13 kg
Front travel
120mm
Rear travel
120mm

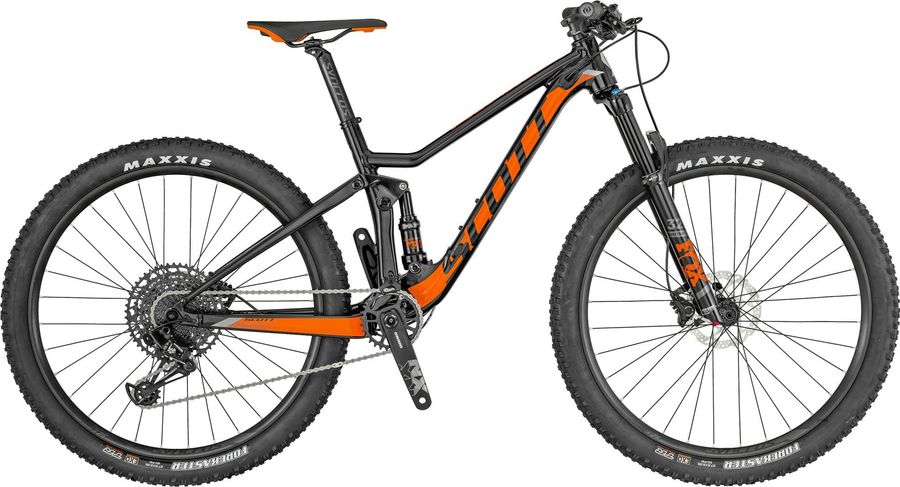

Scott Spark 700 2019

About the Scott Spark 700 2019

The Scott Spark 700 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 13 kg.

Features

The Scott Spark 700 2019 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros 6061 Alloy oversized 31.8mm / 1 1/8" / 6° angle
Saddle
Syncros XR2.5
Headset
Syncros Comp Press Fit / Tapered 1.5"-1 1/8" OD 50/61mm / ID 44/55mm
Seatpost
Syncros 31.6x400mm
Handlebar
Syncros T-Bar / Alloy 6061 T shape Flat / 9° / 700mm Syncros Pro lock-on grips
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM NX Eagle DUB Boost 30T
Shifter
SRAM NX Eagle Trigger
Chain guide
SCOTT custom
Bottom bracket
SRAM DUB PF integrated / shell 41x92mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Spark 27.5" Alloy SL 6011 custom butted Hydroformed tubes tapered Headtube / BB92 / Boost 12x148mm
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
Syncros X-25S / 32H / 25mm / Sleeve Joint Tubeless ready
Tires
Maxxis Forekaster / 27.5x2.35" / 60TPI Kevlar Bead
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Shimano FH-MT400-B CL / Boost 12x148mm
Front hub
Shimano HB-MT400-B CL / 15x110mm

Geometry

Size XS SM
a
Seat tube length
402,0
410,0
b
Seat tube angle
72,9º
73,8º
c
Top tube length
552,0
577,0
d
Head tube length
100,0
100,0
e
Head tube angle
67,6º
67,0º
f
Rake
44,0
44,0
g
Trail
99,5
101,4
h
Wheelbase
1078,0
1117,2
i
Chainstay length
430,0
430,0
j
Bottom bracket drop
19,3
26,0
k
Stack height
568,7
570,9
l
Reach
377,7
411,7
m
Standover height
737,0
737,0
x
Bottom bracket height
338,2
331,5
y
Front center
649,0
688,0
