Scott Spark 700 Premium 2017

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
11,5 kg
Front travel
120mm
Rear travel
120mm

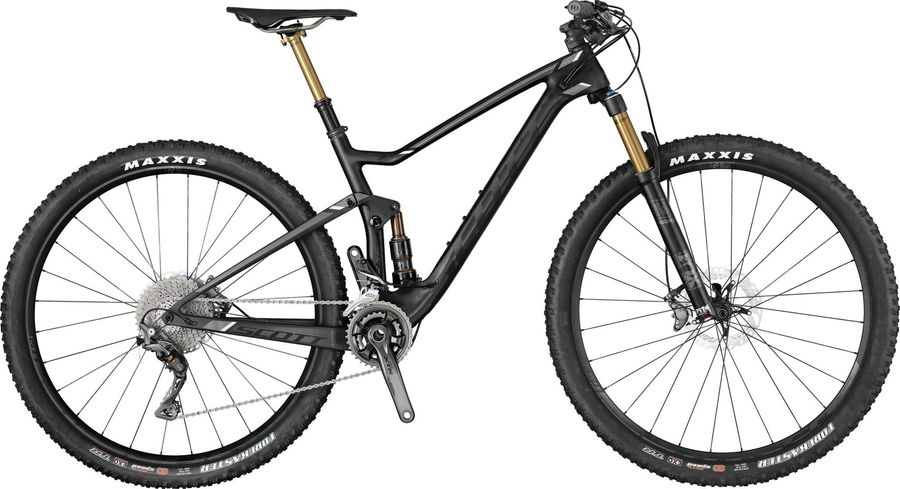

Scott Spark 700 Premium 2017

About the Scott Spark 700 Premium 2017

The Scott Spark 700 Premium 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 11,5 kg.

Features

The Scott Spark 700 Premium 2017 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8" Garmin mount
Saddle
Syncros XR1.5 / Titanium rails
Headset
Syncros FL1.5 Drop in / Tapered 1.5" - 1 1/8" Ti bearing diameter size 42mm and 52mm
Seatpost
FOX Transfer Dropper Remote Kashima / 31.6mm / S size 100mm / M, L & XL 125mm
Handlebar
Syncros FL1.0 SL Carbon T-Bar T shape flat / 9° / 740mm Syncros Pro lock-on grips
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR FC-M9020-B2 / Hollowtech 2 700 Series: 36x26 T / 900 Series: 34x24 T
Shifter
Shimano XTR SL-M9000-I / Rapidfire Plus 2 way release / Ispec 2 clamp
Bottom bracket
Shimano SM-BB9441A / shell 41x92mm
Front derailleur
Shimano XTR FD-M9020-D / side swing
Chain
Shimano CN-HG901 247 g
Average weight (g)
247
Chromizing treatment roller link pin
Model
CN-HG901-11
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Cassette
Shimano XTR CS-M9001 11s HG
Aluminum gear pieces
6
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Carbon spider arm pieces
2
Combination names
11-40T
Combination
11-13-15-17-19*-21*-24*-27*-31*-35*-40**
Compatible chain
HG-X11
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M9001
Speeds
11
Steel gear finish
Shot-Ni
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
1
Type
HG
Frameset
Frame
Spark 3 Carbon / IMP technology / HMX BB92 / Carbon SMC Link / Carbon swingarm SW DM dropouts for Boost 148x12mm TBC Trunnion box construction
Rear suspension
Fox NUDE Trunnion
Front suspension
Fox 34 Float Factory Kashima
Wheels
Rims
Syncros XR1.5 / 28H / Tubeless ready
Tires
Maxxis Forekaster / 2.35 / 120TPI Kevlar Bead TR Tubeless Ready / EXO / 3C maxx speed
Spokes
DT Swiss Aero Comp
Rear hub
Syncros XR1.5 CL / Boost 148x12mm RWS w/removable Lever / 36T Rachet System / XD made by DT Swiss
Front hub
Syncros XR1.5 CL / 15x110mm made by DT Swiss

Geometry

Size SM MD LG
a
Seat tube length
410,0
440,0
490,0
b
Seat tube angle
73,8º
73,8º
73,8º
c
Top tube length
568,0
598,0
628,0
d
Head tube length
100,0
105,0
115,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
44,0
44,0
44,0
g
Trail
101,4
101,4
101,4
h
Wheelbase
1108,2
1138,8
1170,0
i
Chainstay length
421,0
421,0
421,0
j
Bottom bracket drop
26,0
26,0
26,0
k
Stack height
561,9
566,5
575,7
l
Reach
402,7
431,4
458,7
m
Standover height
718,0
726,0
741,0
x
Bottom bracket height
325,5
325,5
325,5
y
Front center
688,0
719,0
750,0
