Groupset
SRAM XX1
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
10,9 kg
Front travel
120mm
Rear travel
120mm

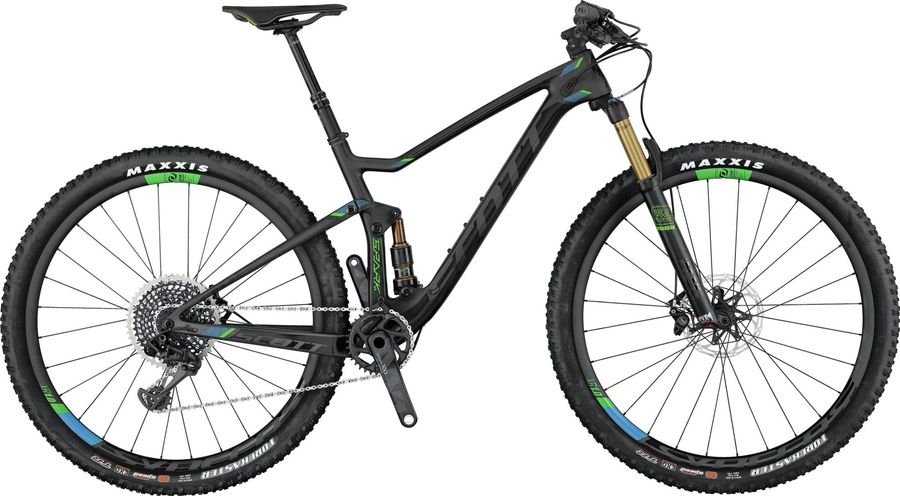

About the Scott Spark 700 Ultimate 2017
The Scott Spark 700 Ultimate 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 10,9 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8" Garmin mount
|
|---|---|
|
Saddle
|
Syncros XR1.0 SL / Carbon rails
|
|
Headset
|
Syncros FL1.5 Drop in / Tapered 1.5" - 1 1/8" Ti bearing diameter size 42mm and 52mm
|
|
Seatpost
|
Rock Shox Reverb Stealth inside hydraulic remote system 31.6mm / S size 100mm / M, L & XL 125mm
|
|
Handlebar
|
Syncros FL1.0 SL Carbon T-Bar T shape flat / 9° / 740mm Syncros Pro lock-on grips
|
|
Brakes
|
SRAM Level Ultimate
Hydraulic
317 g
|
|
|
|
|
Crankset
|
SRAM XX1 Eagle GXP Boost PF Carbon crankarm QF 168 / 700 Series: 34T / 900 Series: 32T
|
|---|---|
|
Shifter
|
SRAM XX1 Trigger
|
|
Bottom bracket
|
SRAM GXP PF integrated / shell 41x92mm
|
|
Front derailleur
|
SCOTT Chainguide
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Chain
|
SRAM XX1 Eagle
239 g
|
|
|
|
|
Frame
|
Spark 3 Carbon / IMP technology / HMX BB92 / Carbon SMC Link / Carbon swingarm SW dropouts for Boost 148x12mm TBC Trunnion box construction custom Chainguide
|
|---|---|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Front suspension
|
Fox 34 Float Factory Kashima
|
|
Rims
|
Syncros XR1.0 Carbon / 28H / Carbon rim tubeless ready
|
|---|---|
|
Tires
|
Maxxis Forekaster / 2.35 / 120TPI Kevlar Bead TR Tubeless Ready / EXO / 3C maxx speed
|
|
Spokes
|
DT Swiss Aero Comp
|
|
Rear hub
|
Syncros XR1.0 CL / Boost 148x12mm RWS w/removable Lever / 36T Rachet System / XD made by DT Swiss
|
|
Front hub
|
Syncros XR1.0 CL / 15x110mm made by DT Swiss
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
490,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,8º
|
|
c
Top tube length
|
568,0
|
598,0
|
628,0
|
|
d
Head tube length
|
100,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
101,4
|
101,4
|
101,4
|
|
h
Wheelbase
|
1108,2
|
1138,8
|
1170,0
|
|
i
Chainstay length
|
421,0
|
421,0
|
421,0
|
|
j
Bottom bracket drop
|
26,0
|
26,0
|
26,0
|
|
k
Stack height
|
561,9
|
566,5
|
575,7
|
|
l
Reach
|
402,7
|
431,4
|
458,7
|
|
m
Standover height
|
718,0
|
726,0
|
741,0
|
|
x
Bottom bracket height
|
325,5
|
325,5
|
325,5
|
|
y
Front center
|
688,0
|
719,0
|
750,0
|
